MacroAir Technologies AirVolution-D 550 - Control Panel Schematic (Three Phase High Voltage)

Wiring Diagrams
© 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com
Local Override Remote Operation Manual 90-30059-00 Rev A-01 Date: 060120
8

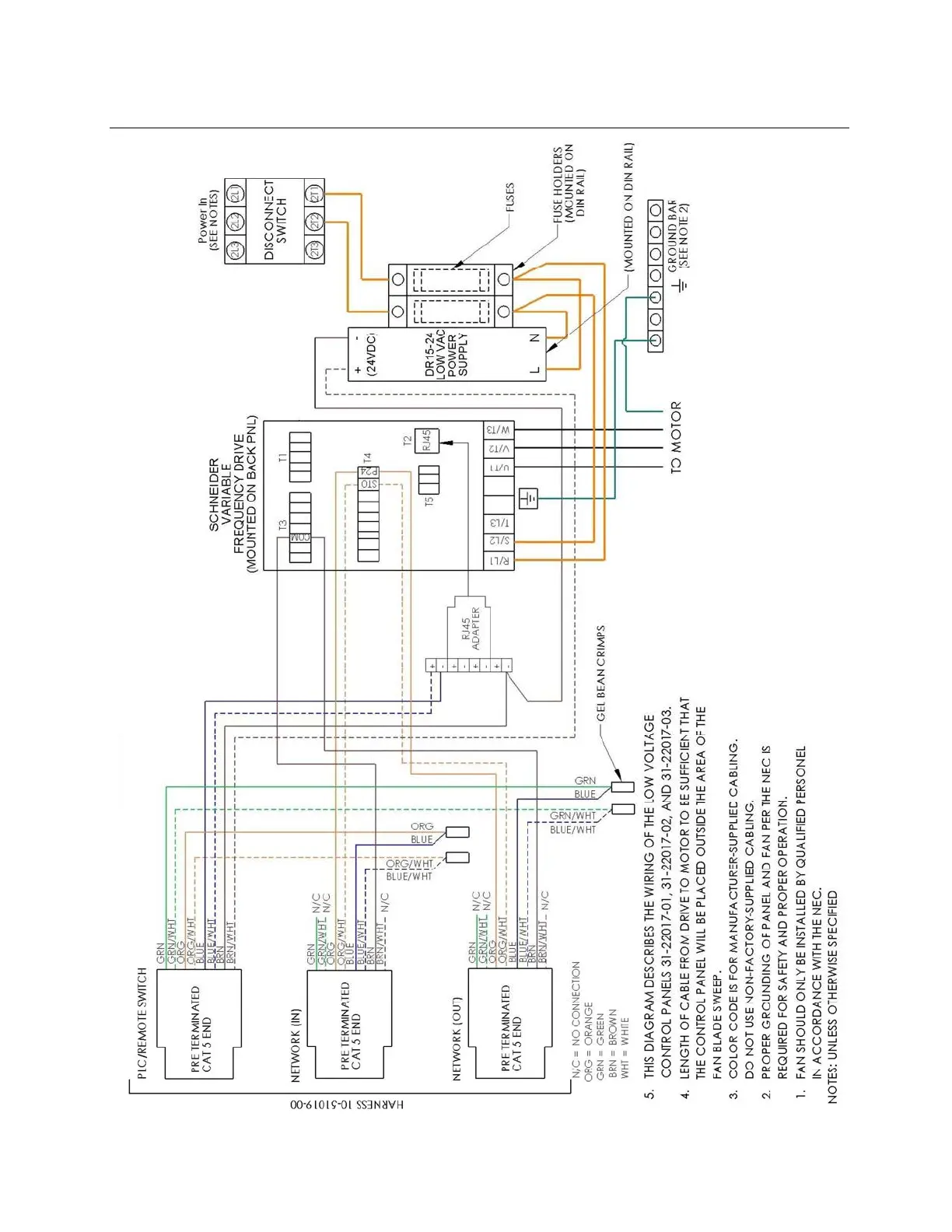

Control Panel Schematic - Single Phase
(Low Voltage)
This control panel schematic supersedes and replaces that found in your fan Operation Manual.
