Wiring the Fan
© 2020 MacroAir Technologies Toll Free: 866 668-3247 Fax: 909 890-2313 www.macroairfans.com
Local Override Remote Operation Manual 90-30059-00 Rev A-01 Date: 060120
Control Panel Overview, cont.
1. Control Panels come pre-wired, as illustrated on pages 4-5.
2. Make sure the control wiring is CAT5e shielded, stranded or greater.
3. If removed from the enclosure, the disconnect switch must be in the OFF position when
removed, and in the OFF position when reinstalled to prevent misalignment of switch.
4. The Motor Cable Gland and the Cable Gland for Analog Control do not come pre-installed.
Use a unibit to drill installation holes.
5. Shielded motor cable is provided and must be used with no additional cable to maintain
factory warranty.
6. Mounting hardware for mounting enclosure to an I-beam, Glulam or wall is not supplied by
MacroAir.

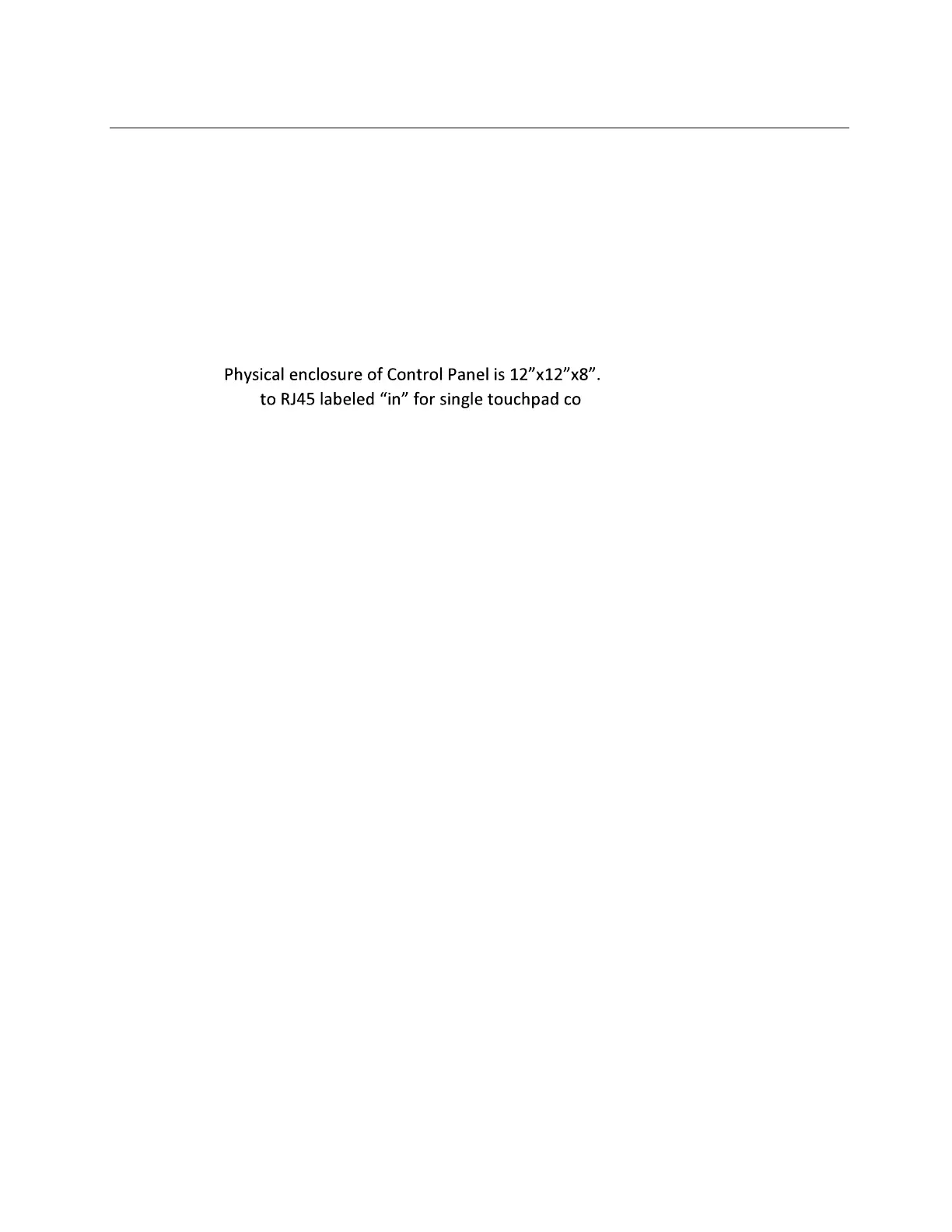

7. Connect CAT5e
ntroller.
This control panel overview supersedes and replaces that found in your fan Operation Manual.
To Next Page
