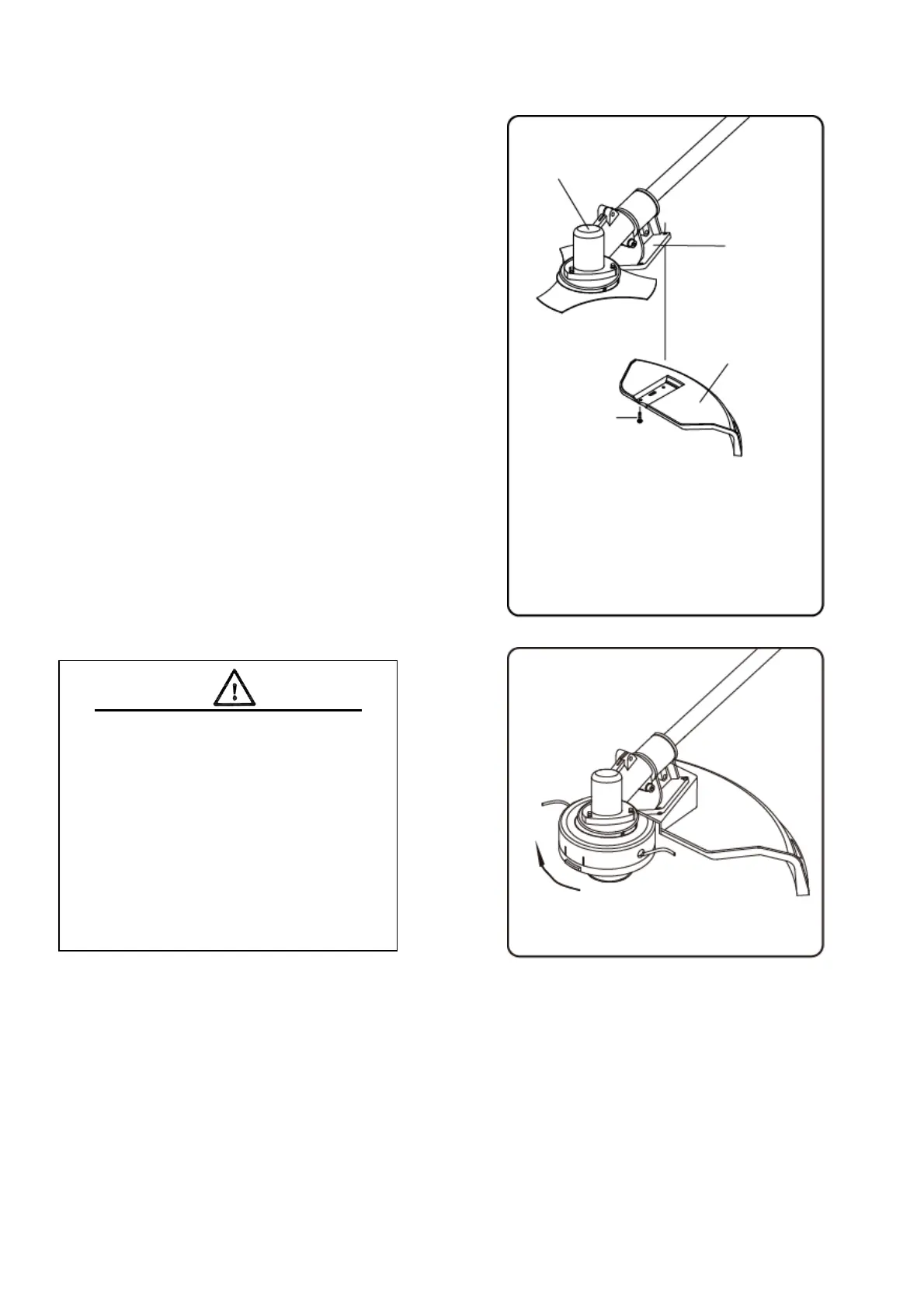

INSTALLING PLASTIC SHIELD
Install the safety cover on the shaft with
the safety cover bracket and the screws
provided.
Tighten the screws after setting the safety
cover bracket at the appropriate position.
WARNING CAUTION
INSTALLING NYLON LINE CUTTER HEAD
Align hole in adapter plate with hole in
shaft and install locking tool.
Thread cutter head onto shaft (turning it
clockwise)until it is tight.
Remove locking tool.
GEAR CASE
BRACKET
SHIELD
M5 x 16
SCREWS
ASSEMBLY
To Next Page
