MADER KM0408312 - Warning; Caution

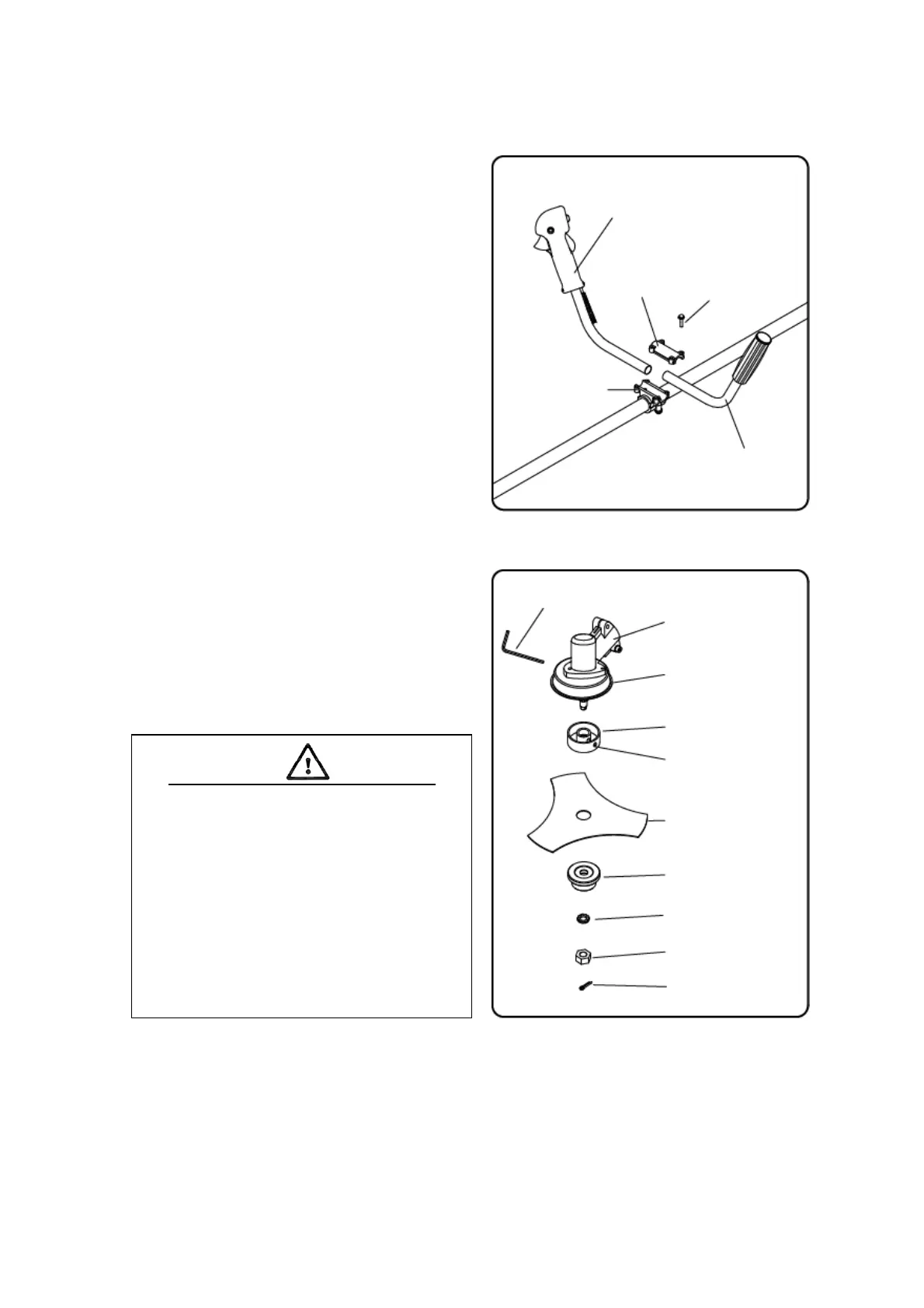

INSTALLING HANDLE
Install handle in bracket. Position handle
in a comfortable operating position and
tighten four M5 x 25 screws.
BLADE INSTALLATION
InstallholderA,thetri‐blade, holder B,
teeth washer, in this order, then clamp
with a left hand thread net.
Align hole o
f
gear case and holder A, and
insert S=4mm bar wrench.
Rotate blade‐fastening nut with plug box
wrench in clockwise direction until
securely tightened.
Install the pin 2 x 16 and disjoin it.
WARNING CAUTION
EXCESSIVE VIBRATION STOP ENGINE
IMMEDIATELY
Excessive vibration of blade means that it
is not properly installed. Stop engine
immediately and check blade. Blade
improperly installed will cause injury.
Use only our company original cutting
equipment parts when servicing the unit.
BAR WRENCH
GEAR CASE
HOLDER A
HOLDER B
TRI‐BLADE
HOLE
TEETH WASHER
LEFT NUT
PIN 2 X 16
RIGHT HANDLE ASS'Y
CAP,UPPER
M5 x 25
SCREWS
BRACHET
LEFT HANDLE ASS'Y
ASSEMBLY
SAFETY GUARD
