It is imperative to keep the
radiator door shut as this
switch configuration will
bypass the open door safety
feature and can cause
damage to the house and
door.
Secondary House Tilt Location
The Madill Log Loader is equipped with the standard house tilt controls located on the
keypad. In the unlikely event where cab power/control is lost the machine is equipped
with a house tilt override. In standard operating configuration the rocker switch located

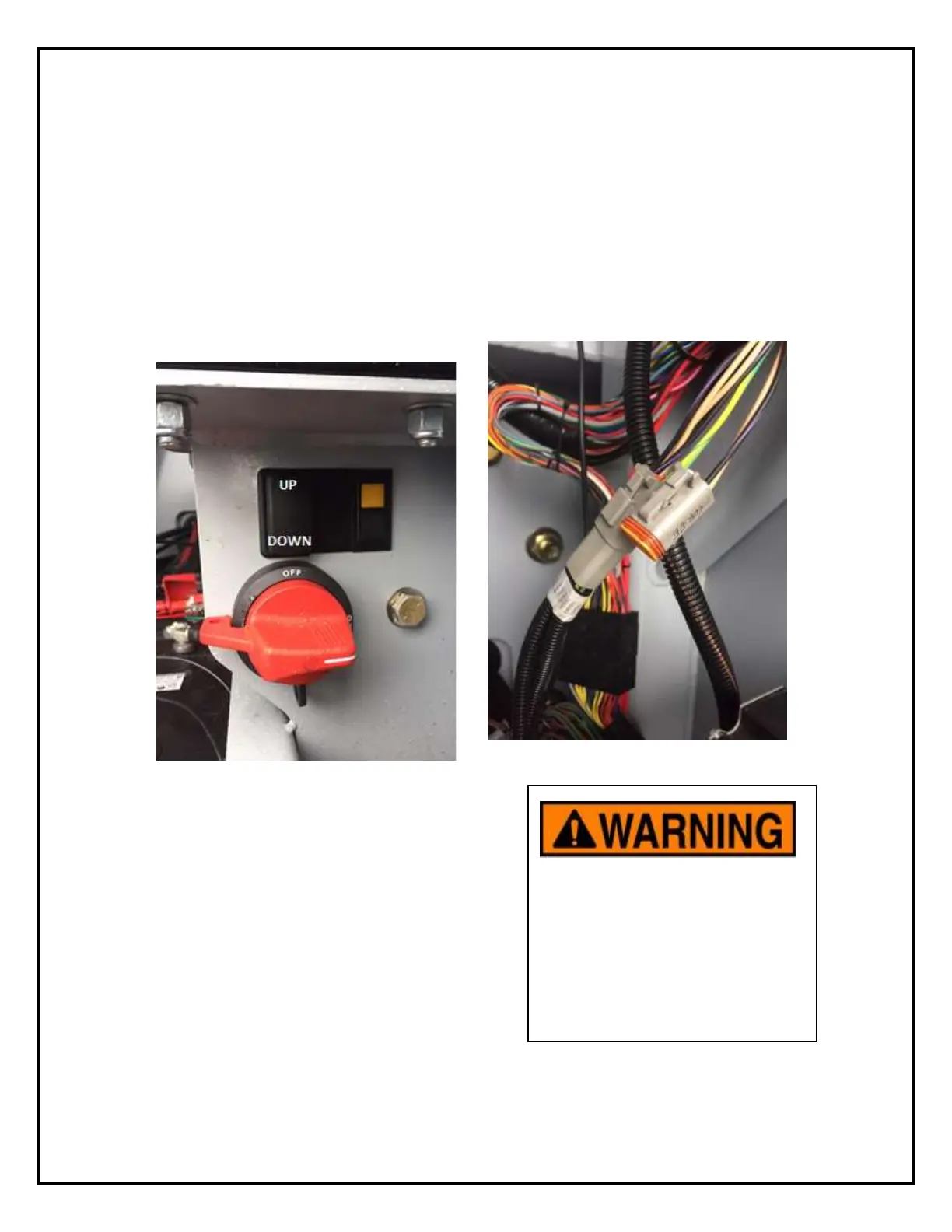

in the cab riser (see picture) controls the cab tilt function. However, there is a manual
override to change this rocker switch to the house tilt function. The picture below shows
the connector that must be switched to change the function of the switch.
Once this connector located in the riser wiring
harness has been switched, the rocker switch
will now control the house tilt function. In order to
regain Cab tilt control you must switch the
connector back to its original configuration.
