M A E D A Crawler Crane MOMENT LIMITER
6/2020 CC1908S-1 Quick operation guide 9

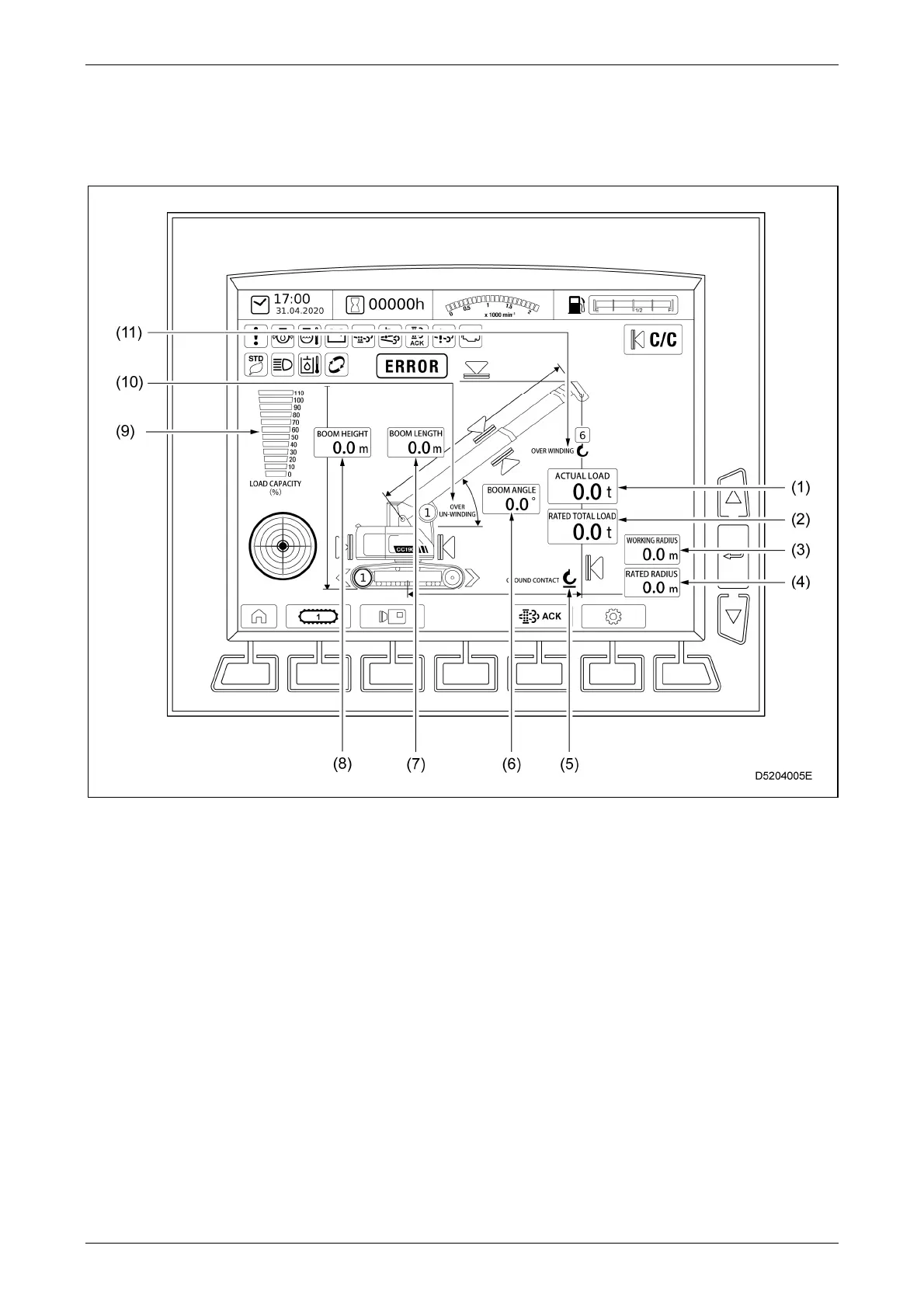

3.2 MONITOR：MOMENT LIMITER DISPLAY
(1) Actual load display
(2) Rated total load display
(3) Actual working radius display
(4) Rated working radius display
(5) Hook ground contact indicator
(6) Boom angle display
(7) Boom length display
(8) Boom height display
(9) Load factor display
(10) Over un-winding display
(11) Overwinding display
