OPERATION M A E D A Crawler Crane
14 6/2020 CC1908S-1 Quick operation guide

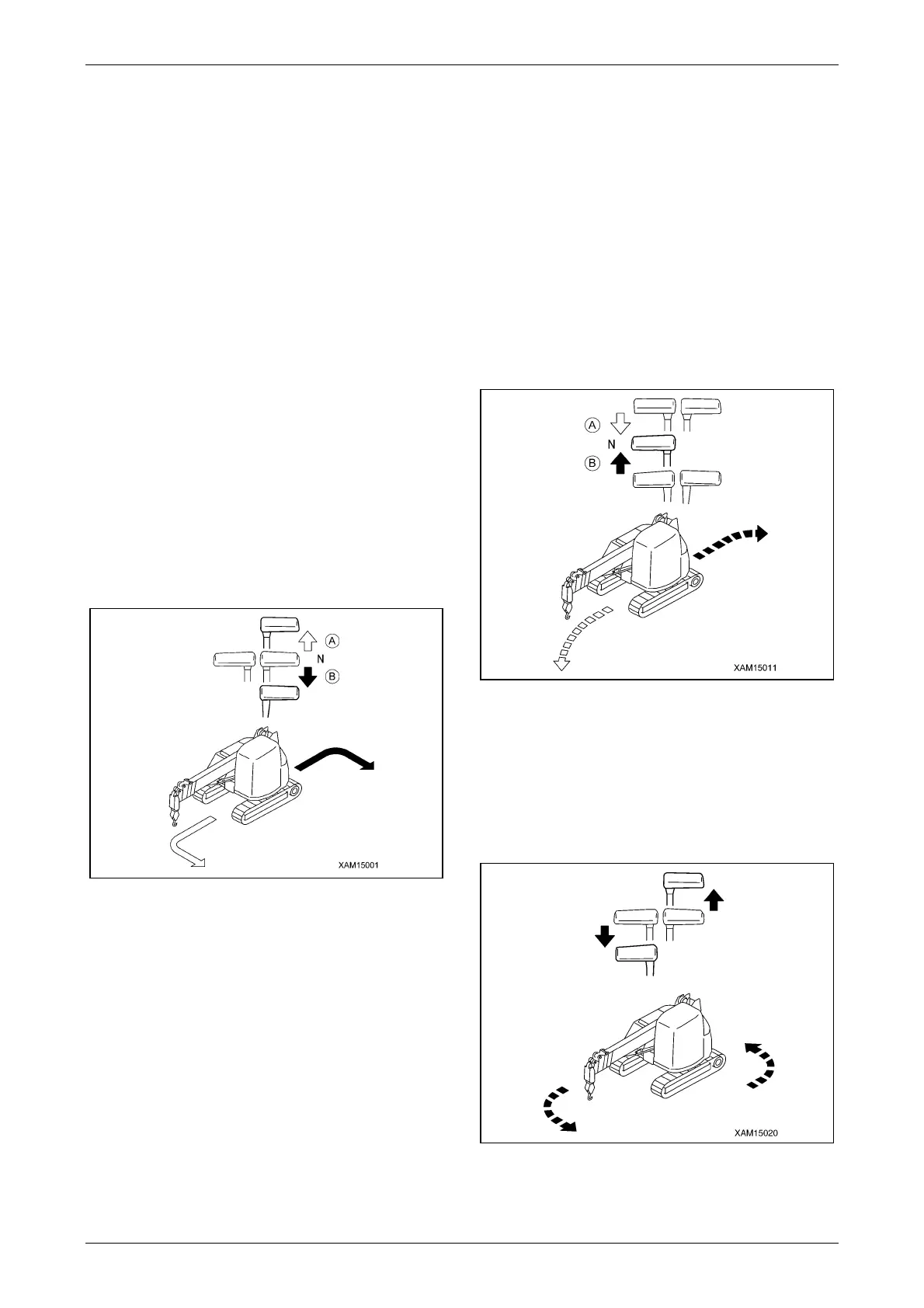

[STEERING THE MACHINE]
Operate the travel levers to change the direction.
Avoid sudden direction changes whenever
possible.
In particular, stop the machine before making a
pivot turn (spin turn).
Operate with two travel levers in the following
manner:
・CHANGING MACHINE DIRECTION
WHEN STOPPED
To turn to the left, push the right travel lever
forward to turn to the left in the forward
direction. Pulling the lever toward you turns the
machine to the left in the reverse direction.
(A): Left turn in forward direction
(B): Left turn in reverse direction
To turn to the right, push the left travel lever
forward to turn to the right in the forward
direction. Pulling the lever toward you turns
the machine to the right in the reverse
direction.
・CHANGING DIRECTION TO THE
RIGHT OR LEFT WHILE MOVING
FORWARD
To turn to the left, return the left travel lever to
the neutral position (N).
(A): Left turn in forward direction
(B): Left turn in reverse direction
To turn to the right, return the right travel
lever to the neutral position (N).
・TURNING (SPIN TURN) ON THE SPOT
To turn on the spot to the left, pull the left travel
lever toward you and push the right travel lever
forward.
To turn on the spot to the right, pull the right
travel lever toward you and push the left
travel lever forward.
