Ventilation system Instructions
Your Over-the-Range microwave oven is designed for adaptation to the following three types of ventilation.
Select the type of ventilation required for your installation and proceed to the appropriate section.
A. Horizontal Ventilation System
A-1. Ventilation motor
This blower motor has a damper and your microwave oven is shipped assembled for a Recirculation Application.

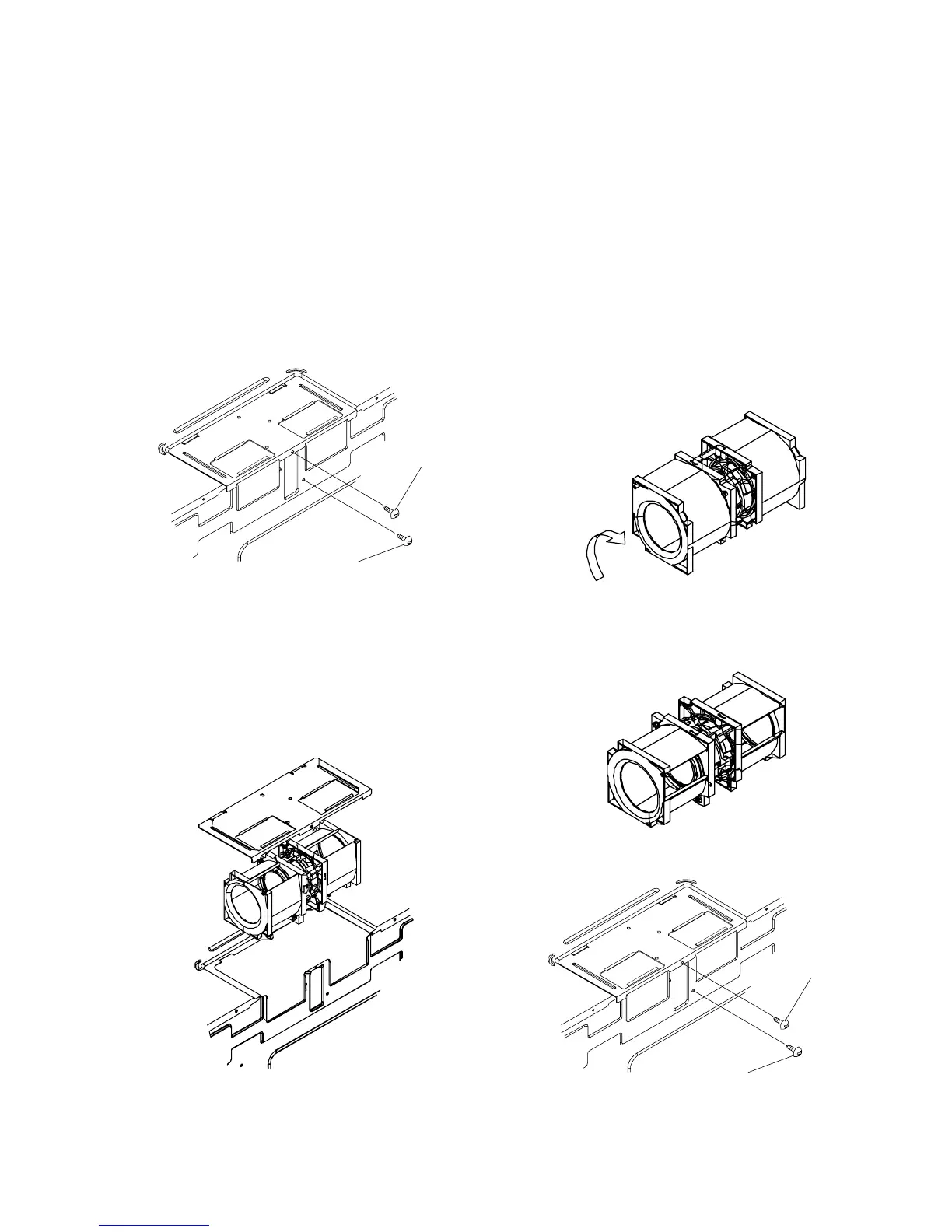

Step.1
* Remove the screws (1) for opening the blower motor cover
and save screw. Remove cover.
Step.2
* Remove the screw (2) for Blower attachment and save
screw.
* Lift blower unit out of mounting location.
CAUTION: Do not pull or stretch blower wiring.
Step.3
Roll the blower unit so that the fan blade openings are facing
back ( rear of unit ).
* If you want VERTICAL, roll the blower unit so that the fan
blade openings are facing upward.
CAUTION: Wires to blower unit must be routed avoid to
pinching, before reinstallation of cover plate.
Step.4
Carefully match the exhaust opening location of the microwave
oven and reinstall the screws (1,2).
Vertical duct configuration
Horizontal duct configuration
Vertical duct configuration
