C. Recirculation Ventilation System
Your over the range microwave oven has been provided with a charcoal filter for a recirculation venting application. If replacement of
the charcoal filter is required, contact your MAYTAG authorized dealer.
C-1. Ventilation motor
This ventilation motor has been assembled for Recirculation exhaust.
C-2. Install the Mounting plate
See the page 5, A-2. Install the mounting plate.
• You need not perform the step 2 and step 4; Horizontal ventilation
only.
C-3. Mounting Microwave oven
See the page 6, A-3. Mounting the Microwave oven.
* You need not use damper for recirculation.

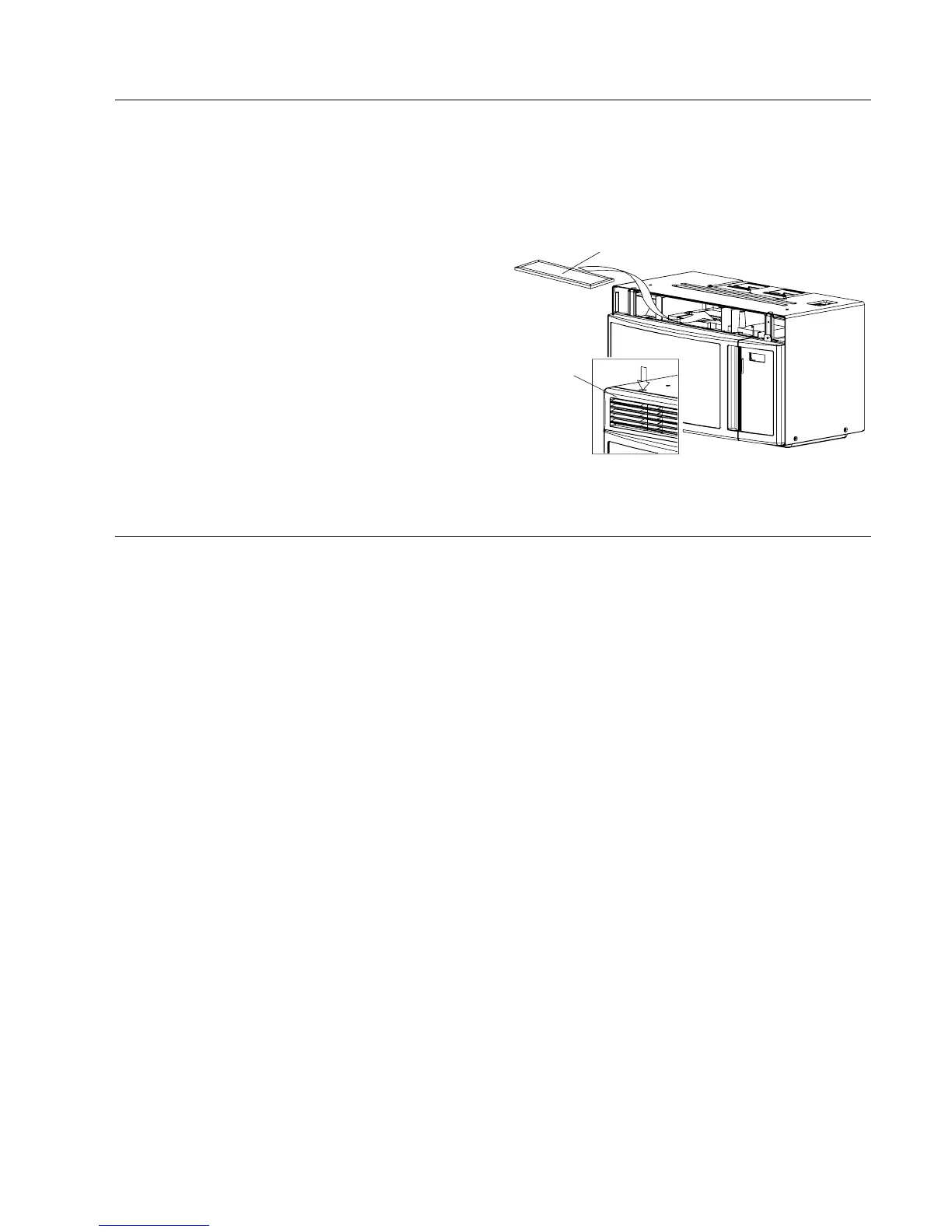

C-4. Install the Charcoal filter
* Remove the screws on the front of the grille and remove the grille.
* Install the charcoal filter.
* Replace the grille and screws.
* Install the grease filters.
Checklist for Installation
1. Make sure oven has been installed according to these instructions and top cabinet template.
2. Remove all packing material from the oven.
3. Plug in power cord.
4. Read Use and Care manual.
5. Keep installation instructions and template for the local electrical inspector’s use.
