1 Door latch - Latches on when the door is
closed. If the door is opened while the oven is
operating, the magnetron will automatically shut
off.
2 Door seal - The door seal prevents microwaves
escaping from the oven cavity.
3 Oven cavity
4 Control panel
5 Oven lamp - Automatically turns on during oven
operating.
6 Roller guide - This must always be used for
cooking together with the glass cooking tray.
7 Glass cooking tray - Made of special heat
resistant glass. The tray must always be in
proper position before operating. Do not cook
food directly on the tray and allows food to rotate
for even cooking.
8 Viewing screen - Allows viewing of food.
The screen is designed so that light can pass
through, but not the microwave.
9 Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
0 Safety interlock system
q Variable power control knob - Used to select a
microwave power level.
w Timer knob - Used in setting cooking time for all
functions.

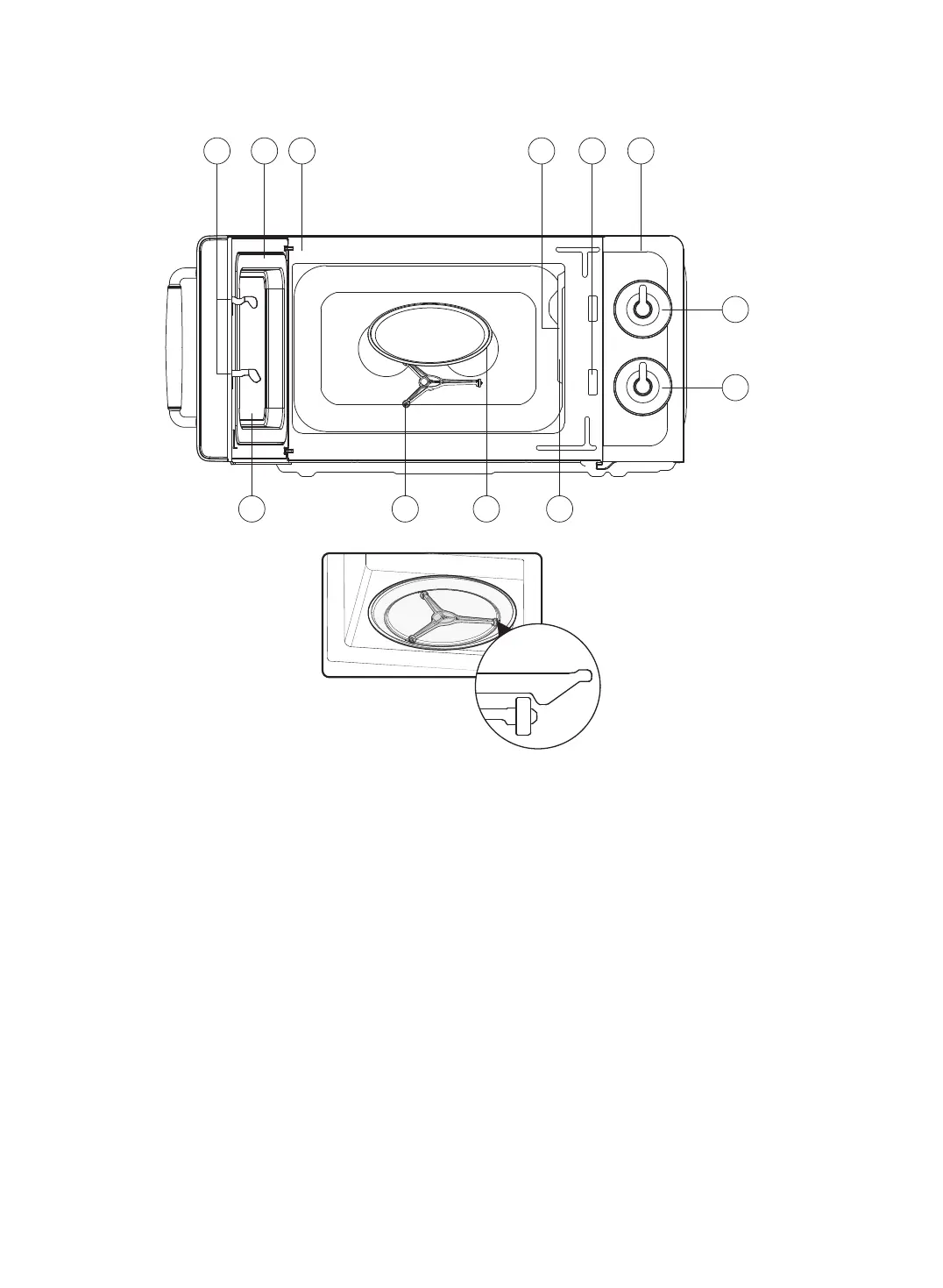

FEATURES DIAGRAM
1 2 3 10
9 6 7
4
5
9
12
11
