13
Install Inlet Pipe

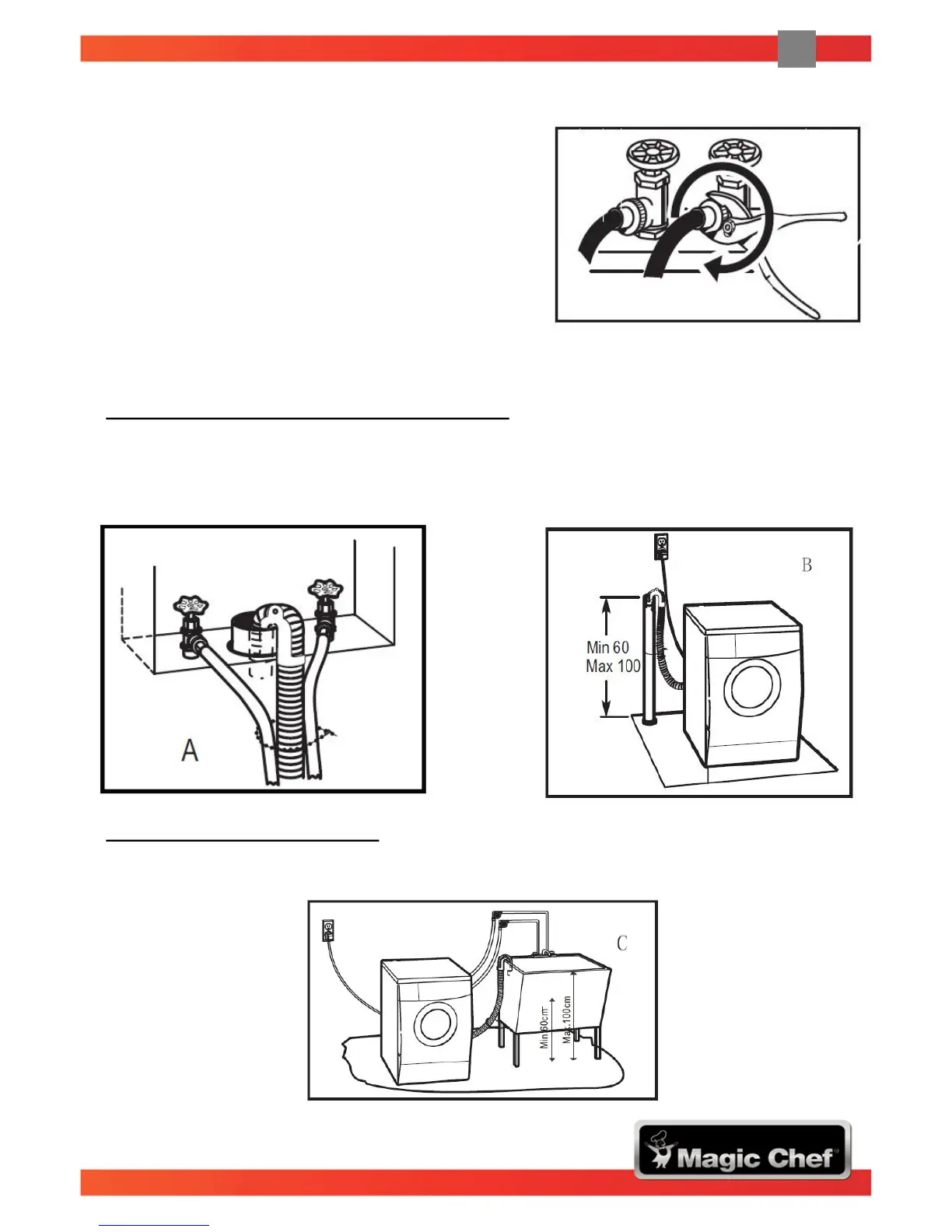

Drain System Options
Standpipe drain system - Wall or Floor ( Fig. A & B)
The standpipe drain requires a minimum diameter standpipe of 2" (50mm). The minimum flow
capacity must be no less than 17 gal. ( 64 L) per minute.
The top of the standpipe must be at least 23” (60cm) high and no higher than 39” (100cm) from the
bottom of the washer.
Laundry Tub Drain System (Fig. C)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be
at least 23” (60cm) above the floor.
1. Connect the elbow to the tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve
at the backside of washing machine and fasten the
pipe tightly clockwise.
Note: After connection, if there is any leakage from the
hose, repeat the above steps to connect inlet
pipe. The most common type of tap must be
used to supply water. If tap is square or too big,
then standard tap must be changed to allow
proper fitting.
