Magic Chef MCSDRY35W User Manual

10
Tools and Parts Required for Plaster
and/or Wood Installation (Not Included)
Drill & 3mm Bit 1
Phillips Head Screwdriver 1
Expanding Wall Anchor Bolts 2" 8
Wooden Slats 22.3" (L) 3.0" (H) x 1.0" (D) 2
Wood Screws (12 mm x 50 mm) 4
Wall-Mounting Kit (Includes)
Wall-Mounting Hooks 2
1” Phillips Head Screws 4
Plastic Spacers 2
½” Phillips Flat Head Screws 4
Exhaust Connector 1

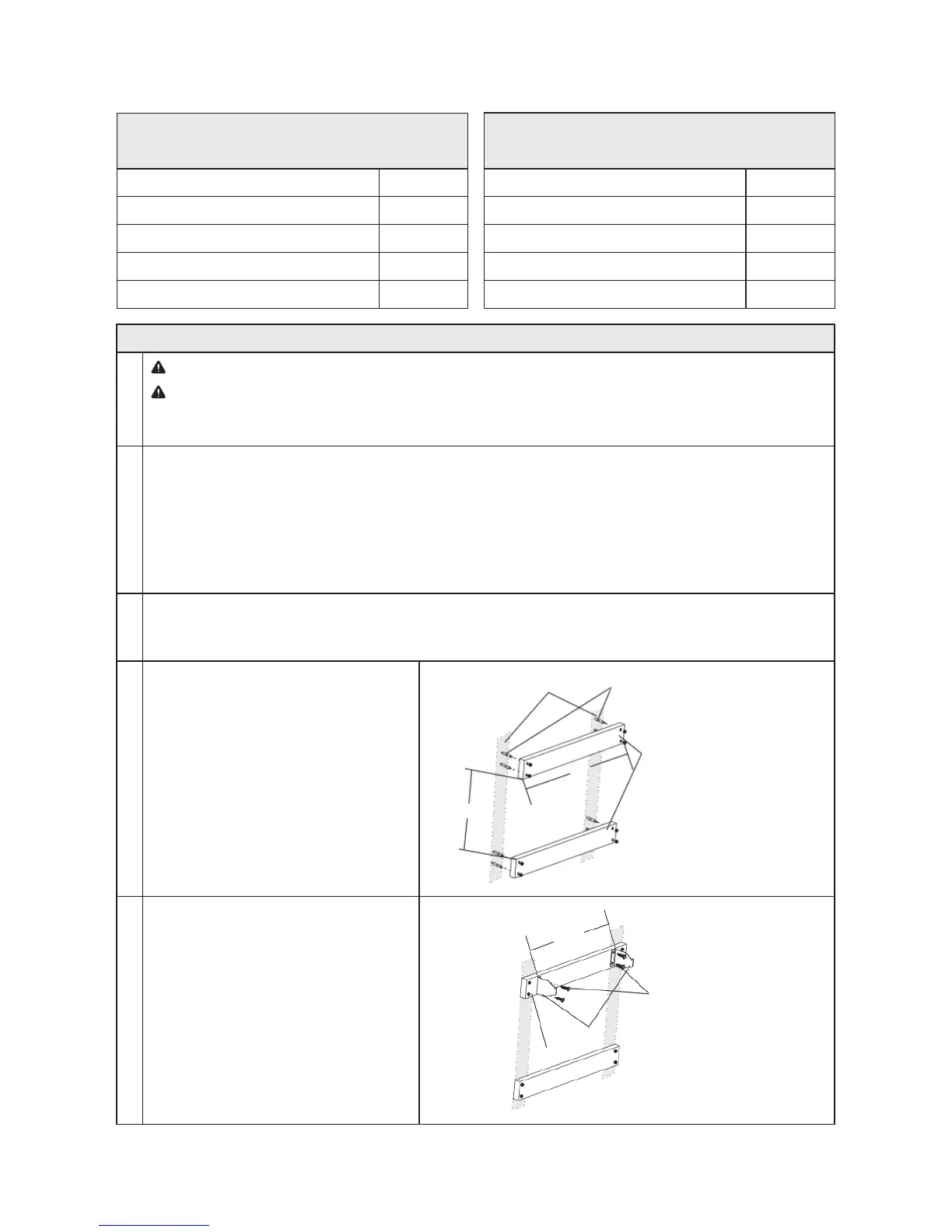

WALL-MOUNTING INSTRUCTIONS
Wall-Mounting Instructions
*
NOTE: It is recommended to complete the following procedure with at least 2 people.
NOTE: As wall materials vary, the supplied hardware for fixing to the wall may be inappropriate for your wall type.
Consult your local hardware/home improvement center for suggestions on the necessary hardware for your particular wall
type.
1
Determine the position where you will be installing the mounting hooks.
•Thisdryerisnotdesignedtositontopofyourwashingmachine.
•Aminimumof2inchesisrequiredbetweenthetopofthedryerandtheceilingabovetoalloweasyinstallation
and adequate spacing for exhaust.
If mounting above a top load washing machine, allow sufficient spacing to open the lid of the washer. In the case of a
front loading washer, allow sufficient breathing space.
2
Although the supplied mounting hooks can be installed directly to the wall using the existing wooden studs, the
preferred method of installation is using wooden slats that provide a flat, level installation surface and added stability
to the whole wall installation.
3
Use two wooden slats (not included) between
the studs to mount the hooks. Recommended
wooden slat size is 23.0" (L) x 3.0" (H) x 1.0" (D).
When using the wooden slats to install on
drywall material, you must use expanding
wall anchor bolts to safely secure the slats to
the drywall.
Use four (4) expanding wall anchor bolts per
each wooden slat.
4
Install the wall-mounting hooks using the
four (4) 1" Phillips Head Screws to the top
wooden slat.
22.2”
1" Phillips Head Screws
Mounting Hooks
Wooden Slat
Wall
21.3”
23.0”
Wooden Slats
23.0" (L) x 3.0" (H) x 1.0" (D)
Expanding Wall Anchor 2.0" (8)

Magic Chef MCSDRY35W Specifications

General

Color	white
Dryer Capactity	3.5 cubic feet
Number of Cycles	4
Cycle Selections	dewrinkle
Options	dewrinkle
Child Lock	yes
Moisture Sensor Option	no
Steam	no

Weight and Dimensions

Depth	21 1/2 inches
Height	32 5/16 inches
Width	23.5827 inches
Net Weight	52.91 pounds
