Magic Chef MCSDRY35W User Manual

11
5

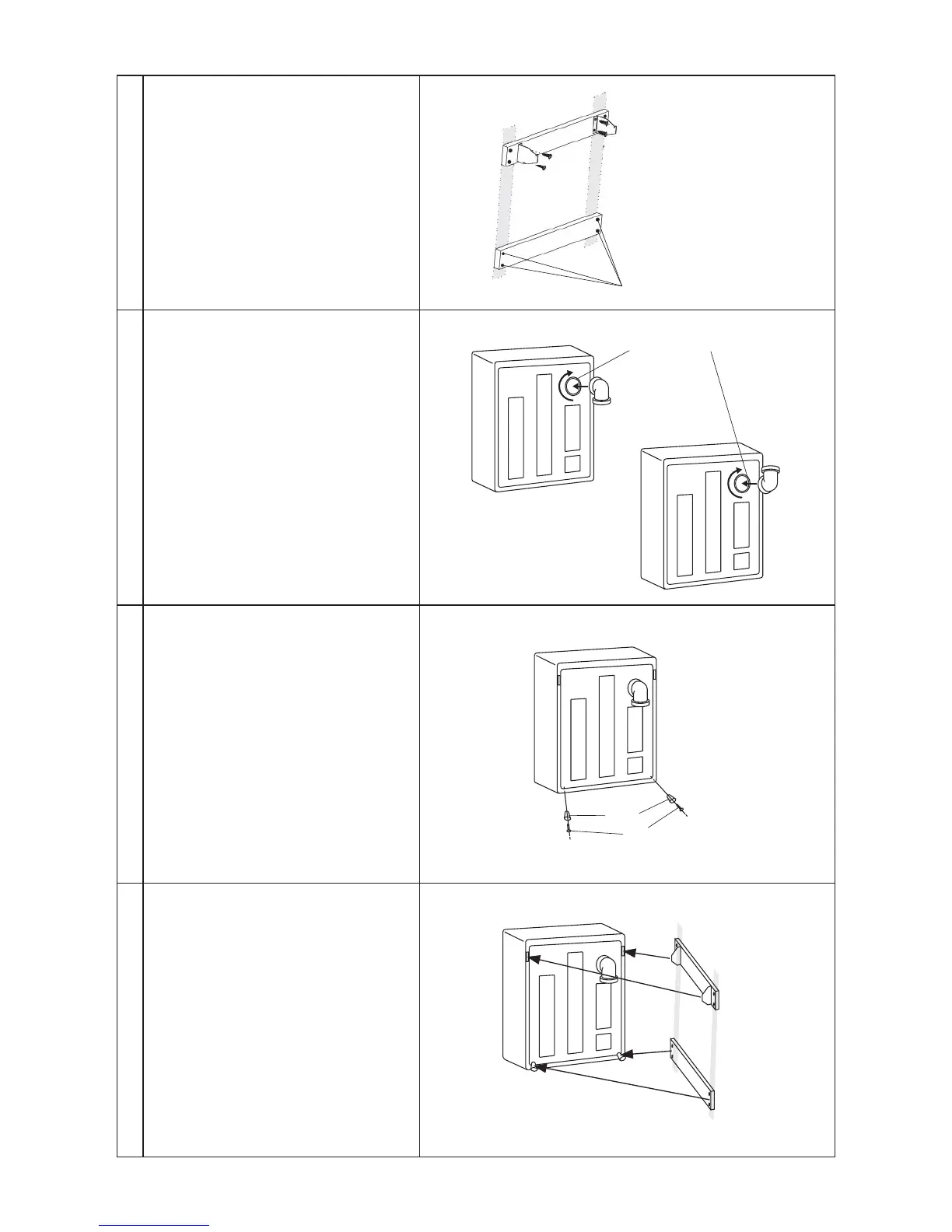

Install the four (4) wood screws to the
bottom wooden slat.
6
Install the exhaust connector as shown in the
illustration using the (3) ½” Phillips round
head screws included.
•Fordownwardexhaust,refertoSection1.
•Forupwardexhaust,refertoSection2.
7
Install the lower wall spacers (included)
using the (2) ½” Phillips flat head
screws (included).
These spacers are required when installing
the unit on the wall to allow the necessary
ventilation for efficient operation.
Failure to install the spacers will both
reduce the ventilation needed to operate
your unit as well as put the appliance in
a tilted position on the wall which could
present a possible unstable wall installation.
8
Mount the dryer to the wall hanging
assembly.
With the assistance of a 2nd person, lift the
dryer and align the mounting holes at the rear
of the dryer with the mounting hooks.
Tilting the dryer to a 45° angle, insert the
hanging brackets into the mounting holes on
the dryer as shown in the figure to the right.
Once the dryer mounts are in place, slowly
lower the dryer in place and check all
installation points for stress or weakened
contact.
Wood Screws
Exhaust Connector
Section 1
Wall
Spacers
½” Phillips Flat Head Screws
Section 2

Magic Chef MCSDRY35W Specifications

General

Color	white
Dryer Capactity	3.5 cubic feet
Number of Cycles	4
Cycle Selections	dewrinkle
Options	dewrinkle
Child Lock	yes
Moisture Sensor Option	no
Steam	no

Weight and Dimensions

Depth	21 1/2 inches
Height	32 5/16 inches
Width	23.5827 inches
Net Weight	52.91 pounds
