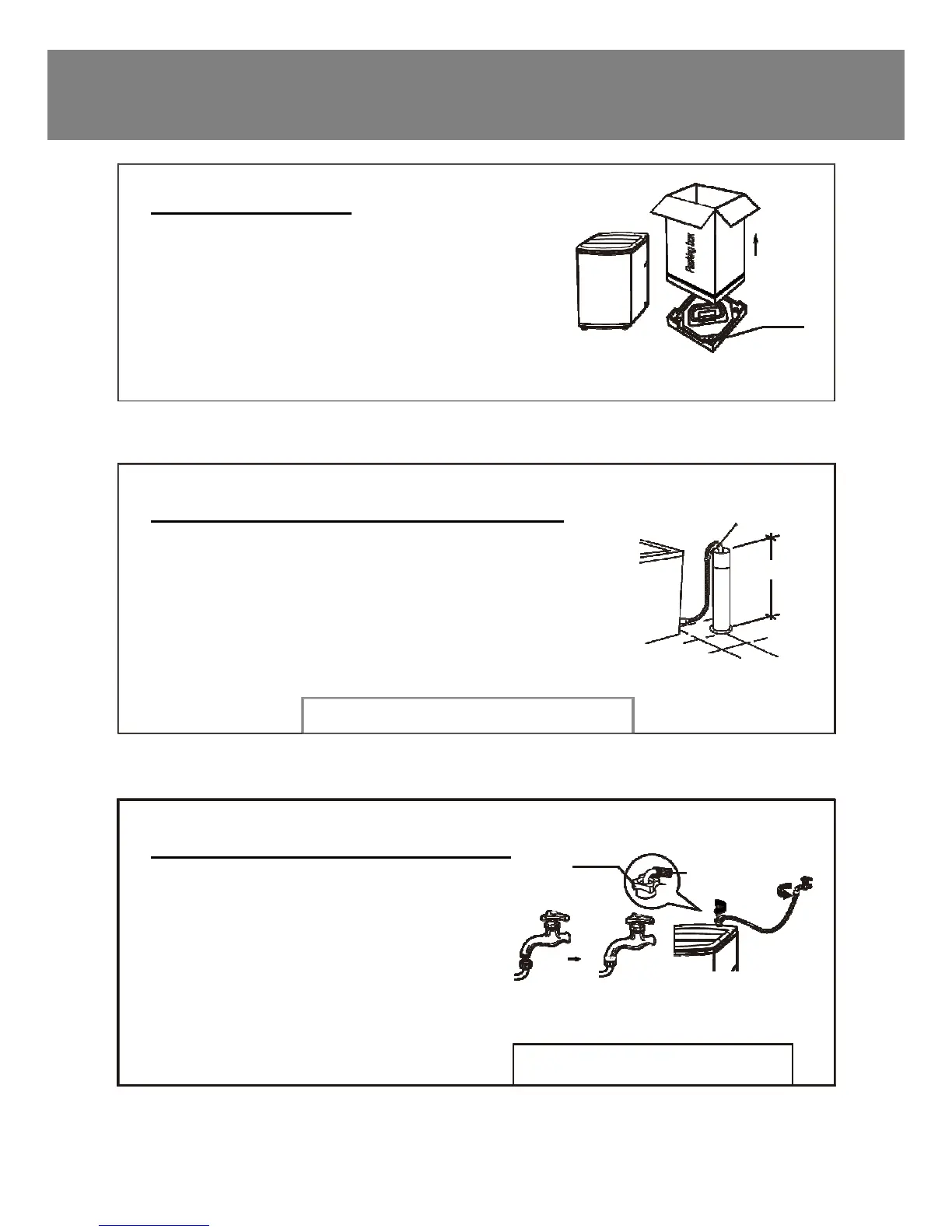

INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
REMOVE PACKAGING
• Remove packaging, foam cushions, and bottom cardboard.
• Open the washer door and take out the accessories.
• Use of washer with the foam cushion is strictly prohibited.
Foam
Cushion
Base
PLACEMENT OF UPPER WATER DRAIN HOSE
The height of the drain hose (A) should be between ~34 to 40”.
Its diameter (B) should not be less than 1.20”, and its flow capacity
should not be less than 40 L/Min.
Before starting the washer, users should properly hang the drain
pipe ~34 to 40” above the floor.
FOR UPPER DRAIN SYSTEM ONLY
A
B
34 - 40”
INSTALLATION OF WATER INLET HOSE
• Place the water inlet hose screw onto the tap.
• Tightly screw the other end of the hose to the water
inlet valve using the rubber seal ring inside.
NOTE: When tightening the clamping nut, evenly
apply force and avoid twisting the water inlet valve to
prevent breakage of the water inlet valve joint.
ONLY FOR WATER INLET HOSE WITH
DOUBLE THREADED SCREW
Clamping Nut
Water Inlet Hose

Magic Chef MCSTCW21W2 Specifications

General

Brand	Magic Chef
Model	MCSTCW21W2
Category	Washer
Language	English
