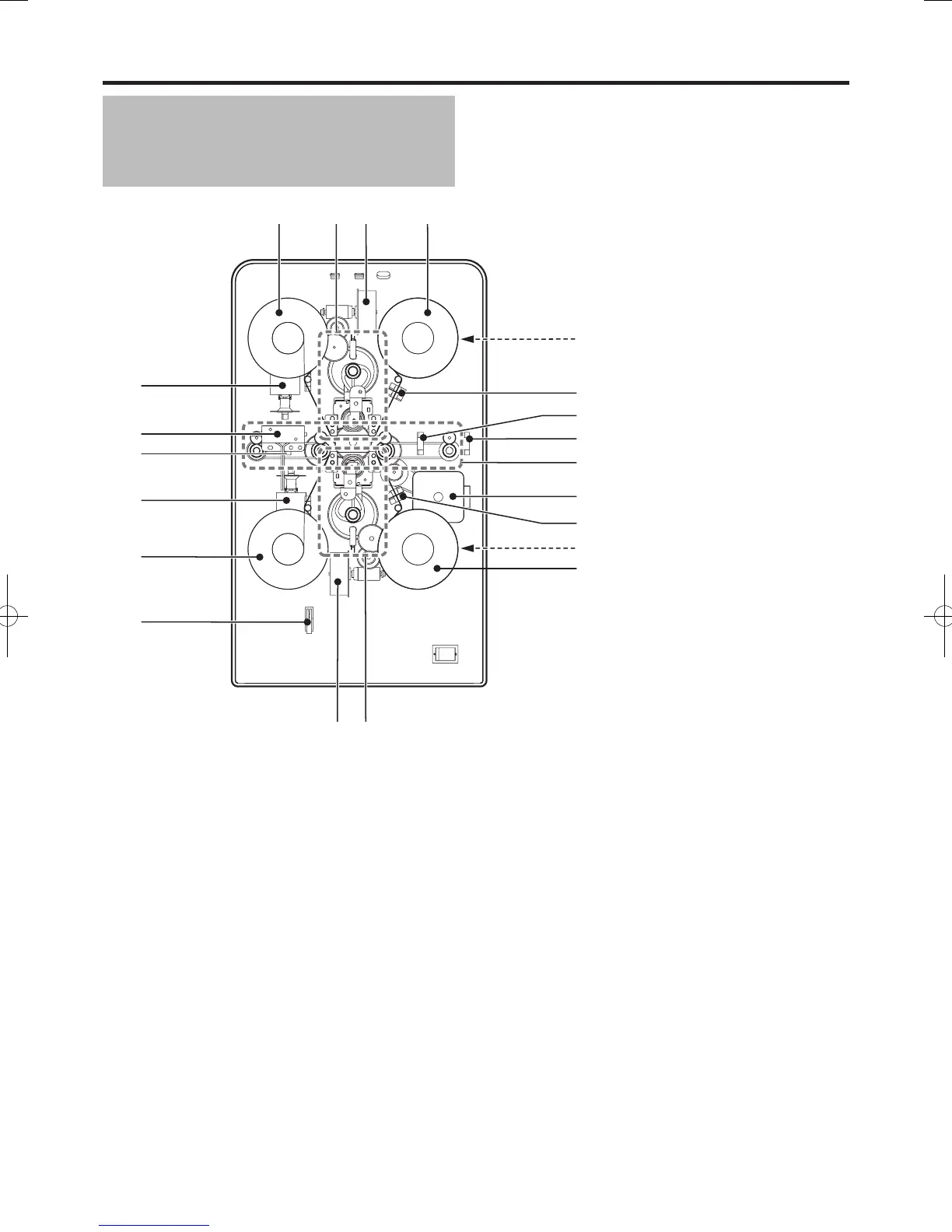

Magicard Prima 4 - Internal Mechanism Diagram

9
Internal Mechanism
Diagram
O N
M
A CB D
U
T
S
R
Q
P
E
F
G
H
I
J
K
L
Top take-up side laminate film
Top side laminate pressure motor
Top side laminate heater pressure mechanism
Top supply side laminate film
Top side laminate film supply motor
Top side laminate film position sensor
Card lamination position sensor
Inlet sensor
Card feeder unit
Card feed motor
Bottom side laminate film position sensor
A
B
C
D
E
F
G
H
I
J
K
Bottom side laminate film supply motor
Bottom supply side laminate film
Bottom side laminate heater pressure mechanism
Bottom side laminate pressure motor
Interlock switch
Bottom take-up side laminate film
Bottom side laminate film take-up motor
Card discharge sensor
Security lock solenoid
Top side laminate film take-up motor
L
M
N
O
P
Q
R
S
T
U
