3 General Transmitter Information

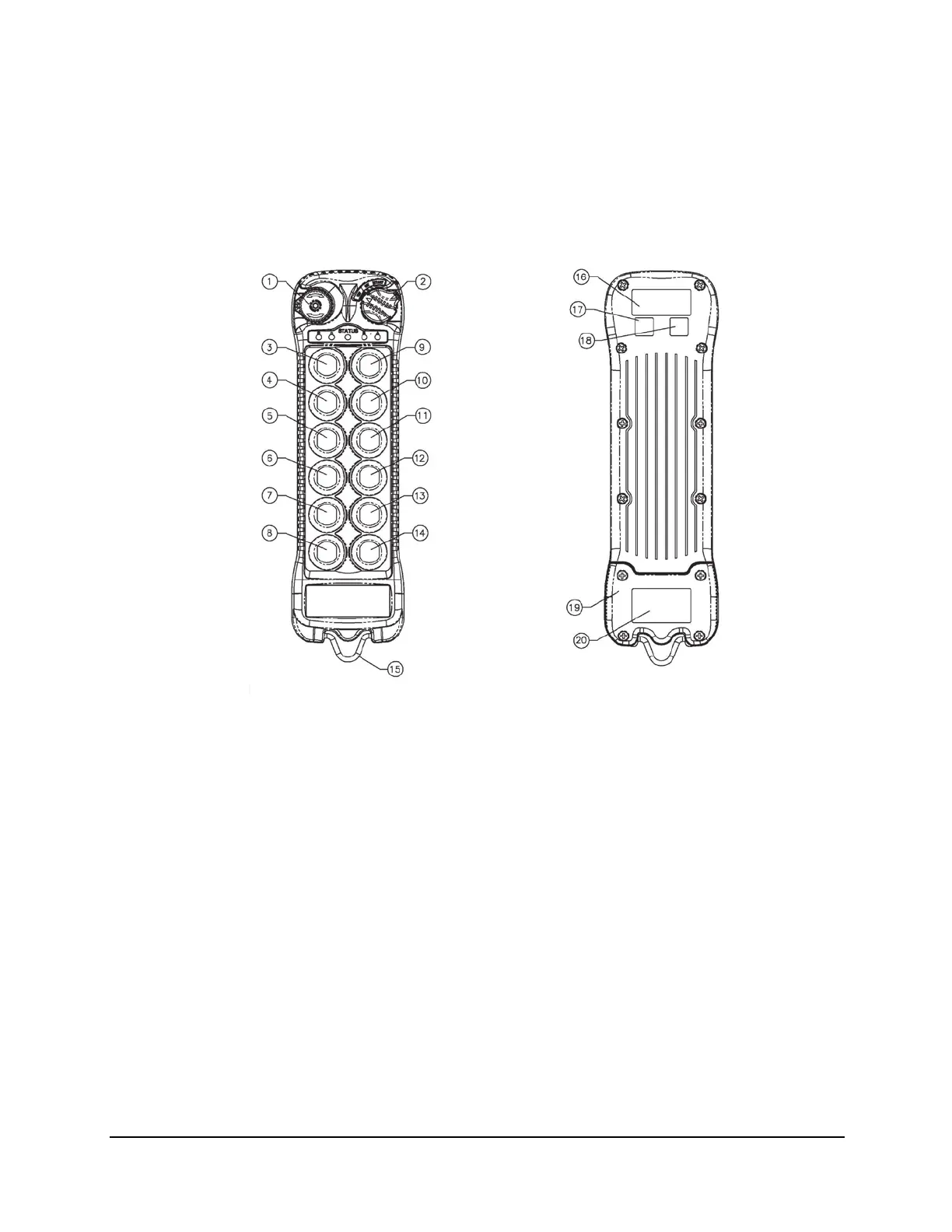

3.1 External Illustration (12-Button Configuration)
Fig. 1
NOTE: Push Buttons #9 – #12 are not present on the Flex 8EM or 8EX.
1. Emergency STOP Button 11. Pushbutton #6
2. Removable Power Key 12. Pushbutton #8
3. Pushbutton #1 13. Pushbutton #10
4. Pushbutton #3 14. Pushbutton #12
5. Pushbutton #5 15. Strap Ring
6. Pushbutton #7 16. System Information
7. Pushbutton #9 17. System Channel
8. Pushbutton #11 18. Unit Number
9. Pushbutton #2 19. Battery Cover
10. Pushbutton #4 20. FCC Information
