Magnetek LaserGuard Mini - Laser Cable and Relay Wiring

LaserGuard Mini Instruction Manual
April 2020
Page 12 of 25
2.4. Laser Cable and Relay Wiring
PIN NO.
WIRE COLOR
CONNECTION POINT ON LASER SUPPORT UNIT
1
BROWN
“+” Terminal of Power Supply
2
WHITE
“A1+” Terminal of Relay 2
3
BLUE
“-” Terminal of Power Supply
4
BLACK
“A1+” Terminal of Relay 1

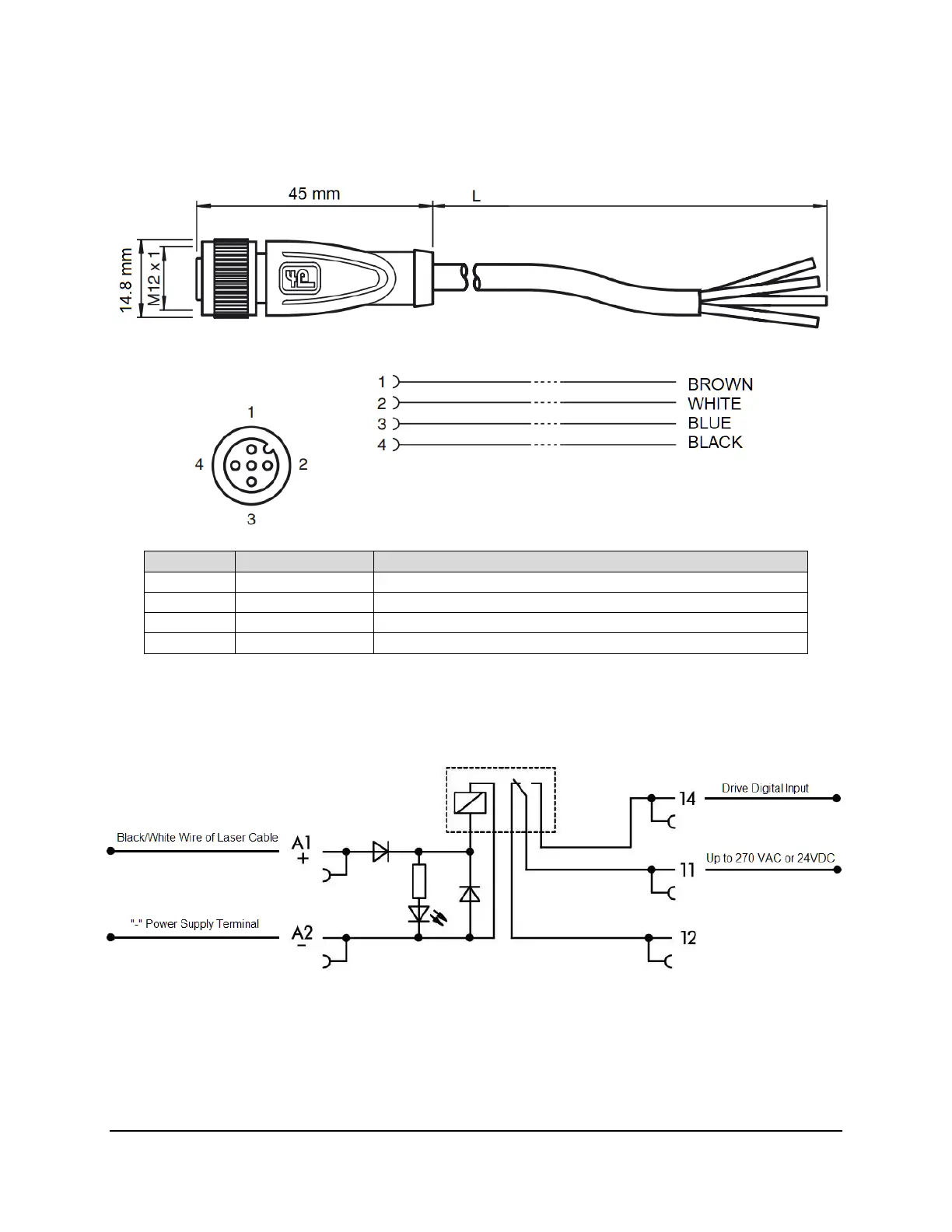

Figure 4: Laser Cable Wiring Diagram
Figure 5: Relay Wiring Diagram
