Magnetek LaserGuard Mini - Wiring Example

LaserGuard Mini Instruction Manual
April 2020
Page 13 of 25
2.5. Wiring Example
Relay 1
Relay 2
14
12
11
A1+
A2-
Parameters
H01-06 = A (Upper Limit 1 N.C.)
H01-07 = B (Upper Limit 2 N.C.)
or
H01-06 = C (Lower Limit 1 N.C.)
H01-07 = D (Lower Limit 2 N.C.)
Magnetek Bridge/Trolley VFD
UP TO 270VAC OR
24VDC
Slowdown
Stop
X2 S1 S2 S3
S4 S5 S6 S7
S8 A1 A2 A3
M0 M1 M2
Interface Board
M3
BLACK
LASER CABLE WIRE
POWER SUPPLY
-TERMINAL
WHITE
LASER CABLE WIRE
14
12
11
A1+
A2-

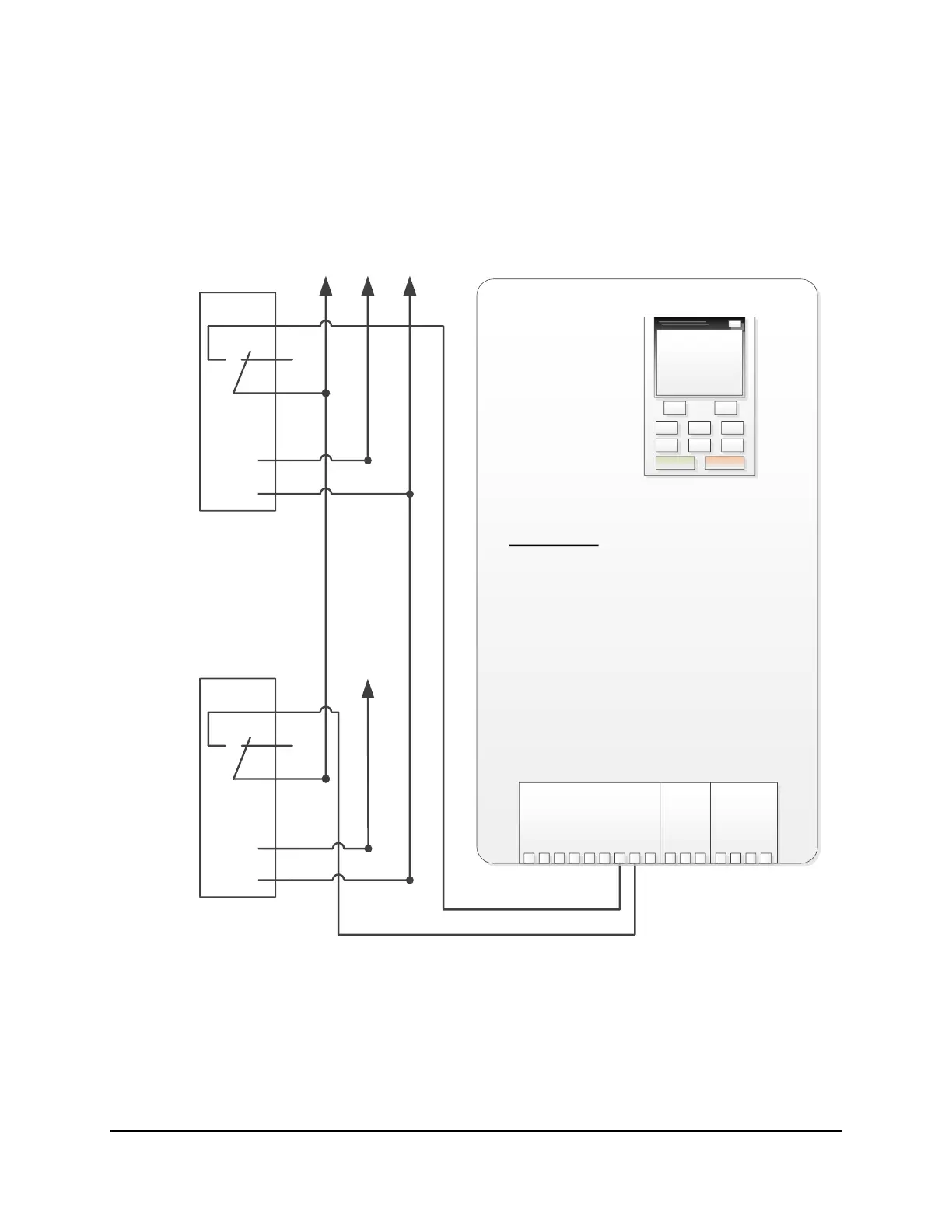

Figure 6: Magnetek VFD Example Wiring Diagram
NOTE: The voltage switched through the relays must comply with the drive’s interface board voltage.
