Magnetek LaserGuard Mini - Laser Support Unit Assemblies

LaserGuard Mini Instruction Manual
April 2020
Page 9 of 25
1.5. Laser Support Unit Assemblies
ITEM NO.
DESCRIPTION
QTY
1
SUB-PANEL
1
2
POWER SUPPLY, 24VDC, 1.25A
1
3
NUT, #10-32 X 5/16 X 7/64
2
4
WASHER #10 ID X 3/8 OD X .020
2
5
WASHER, LOCK #10
2
6
SCREW COMBO, #10-32 X 5/8
2
7
PRODUCT LABEL
1
8
DIN RAIL
2.5”
9
SPDT RELAY, 24VDC COIL
2
10
GROUND TERMINAL BLOCK
1
11
END-STOP
2

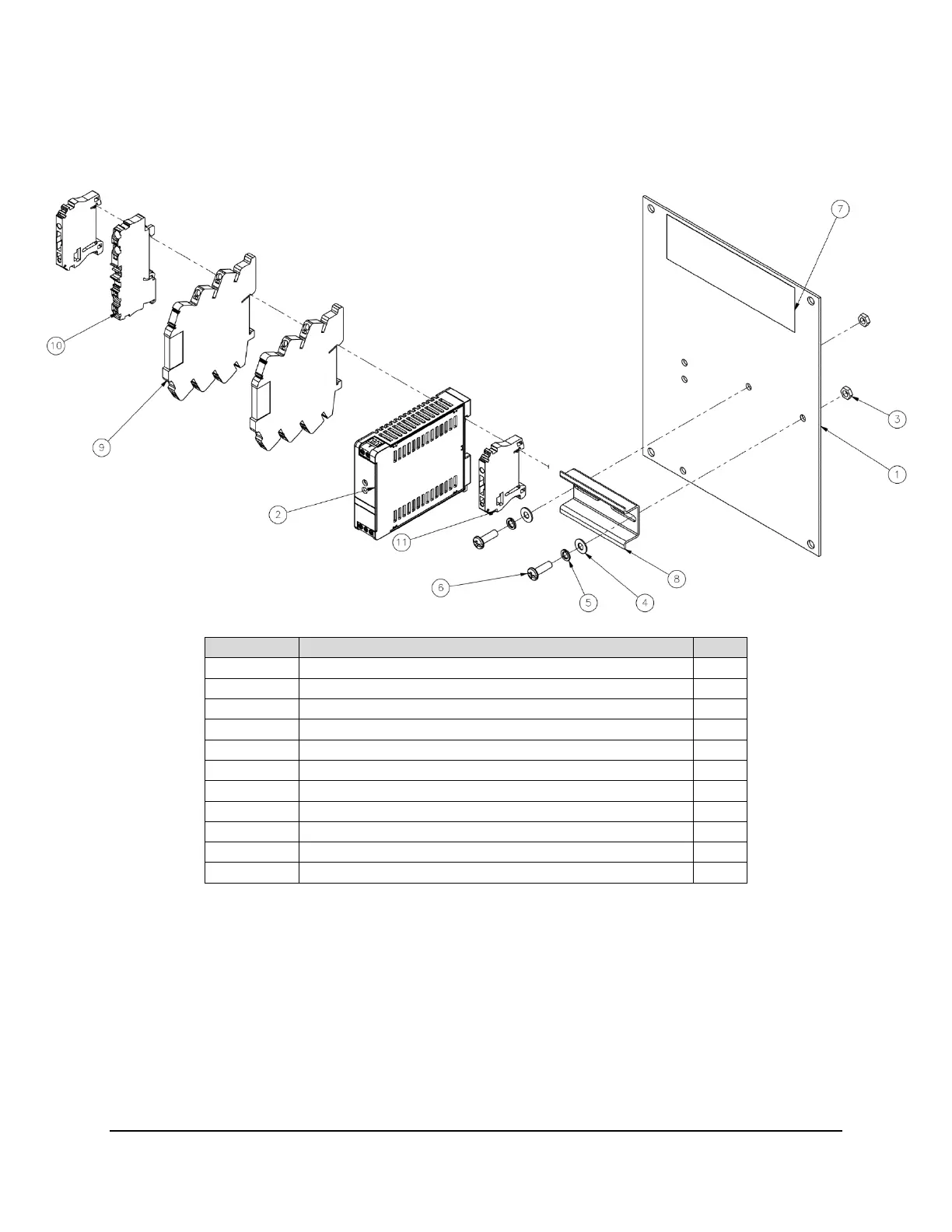

Figure 2: Laser Support Unit (P/N: LGM-LSU-OPEN) Assembly for LGM-OPEN-X-X
