3.3. Mechanical Installation and Alignment
The LaserGuard Mini Collision Avoidance System measures the distance between the laser sensor's lens
and the reflective target surface.
Make sure the laser is mounted such that no obstructions can come between the laser sensor and the
reflective target.
Determine the mounting position for the laser and the reflective target such that the visual laser point is
centered on the reflective target. The laser beam and reflector should be aligned as perpendicular as
possible. This is the most important part of a successful installation since the laser beam must stay on the
target for the entire 8 in.-164 ft. [0.2-50 m] range.
Refer to the figures in this section for mounting information.

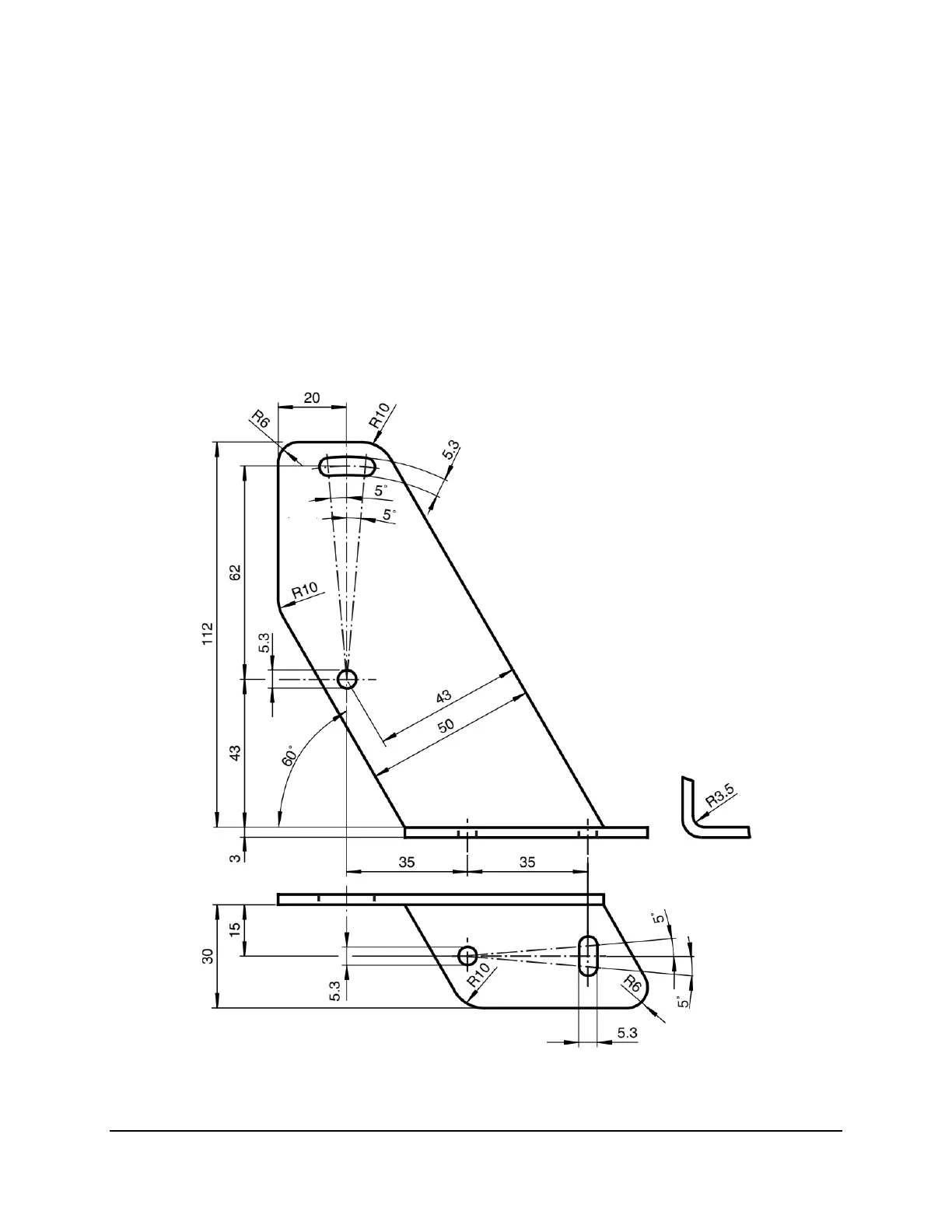

Figure 8: Rigid Laser Mounting Bracket (P/N: RIGID-BRACKET) Dimensions (mm)
