LaserGuard Mini Instruction Manual
April 2020
Page 20 of 25
Install the sensor laser and reflective target as indicated in Figure 13 and Figure 14 Figure 14. Mount the
laser sensor securely to a solid surface to minimize vibration so that the crane’s load or movement will not
affect the laser’s alignment. The laser and laser support unit should also be mounted as close to the
control panel as possible to minimize long cable runs.

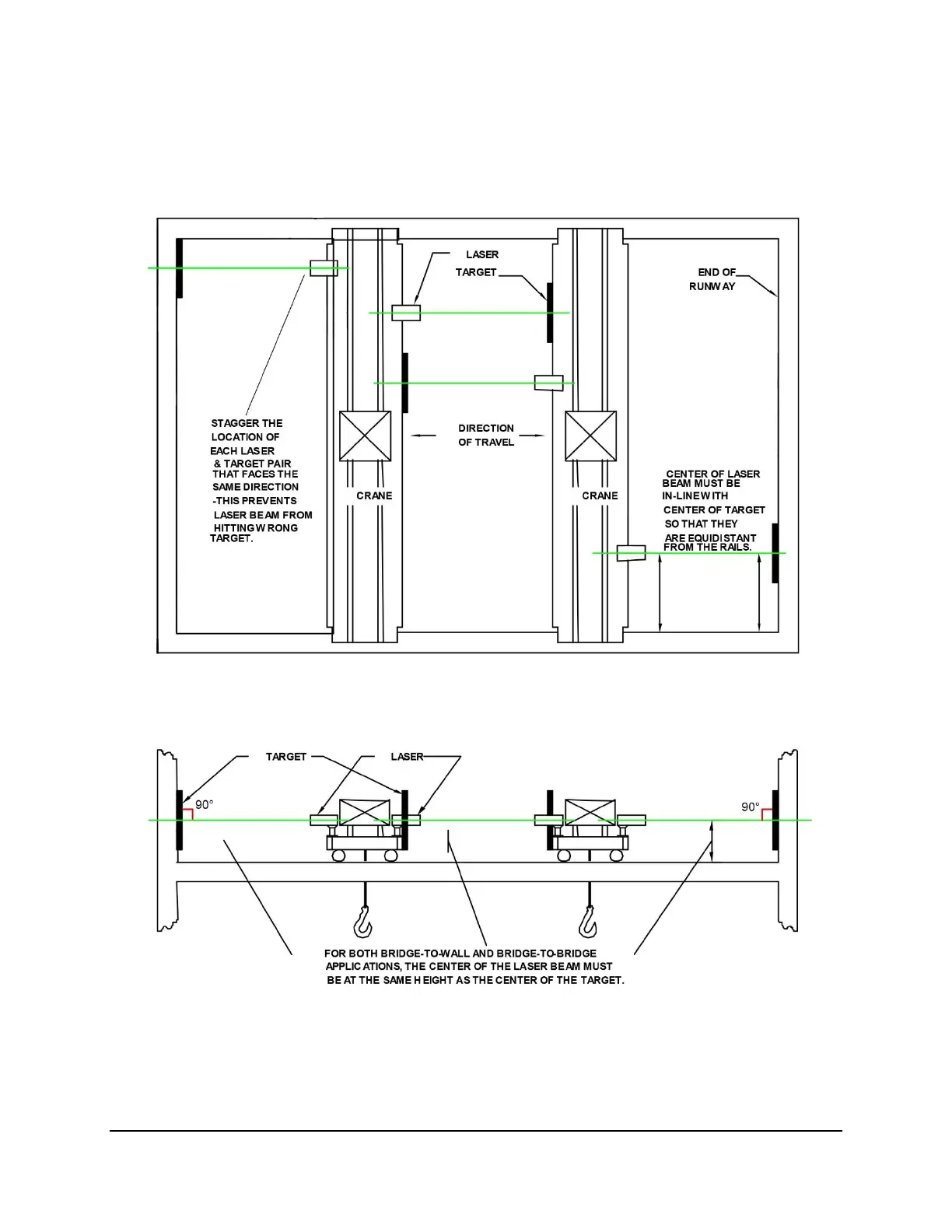

Figure 13: Laser and Target Installation
To Next Page
