LaserGuard Mini Instruction Manual
April 2020
Page 22 of 25

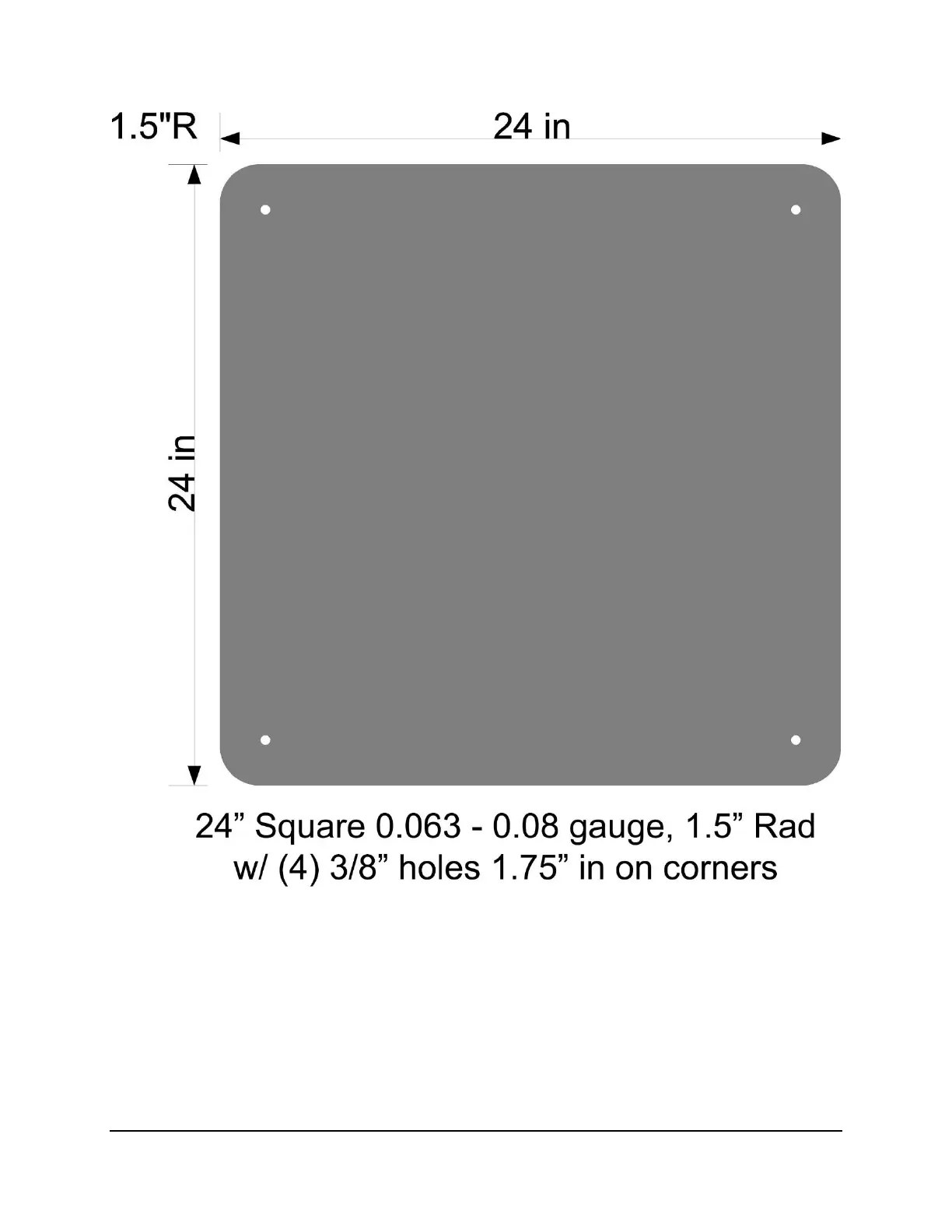

Figure 15: Reflector Target Dimensions (P/N: REFLX-REFLECTOR-DIN)
