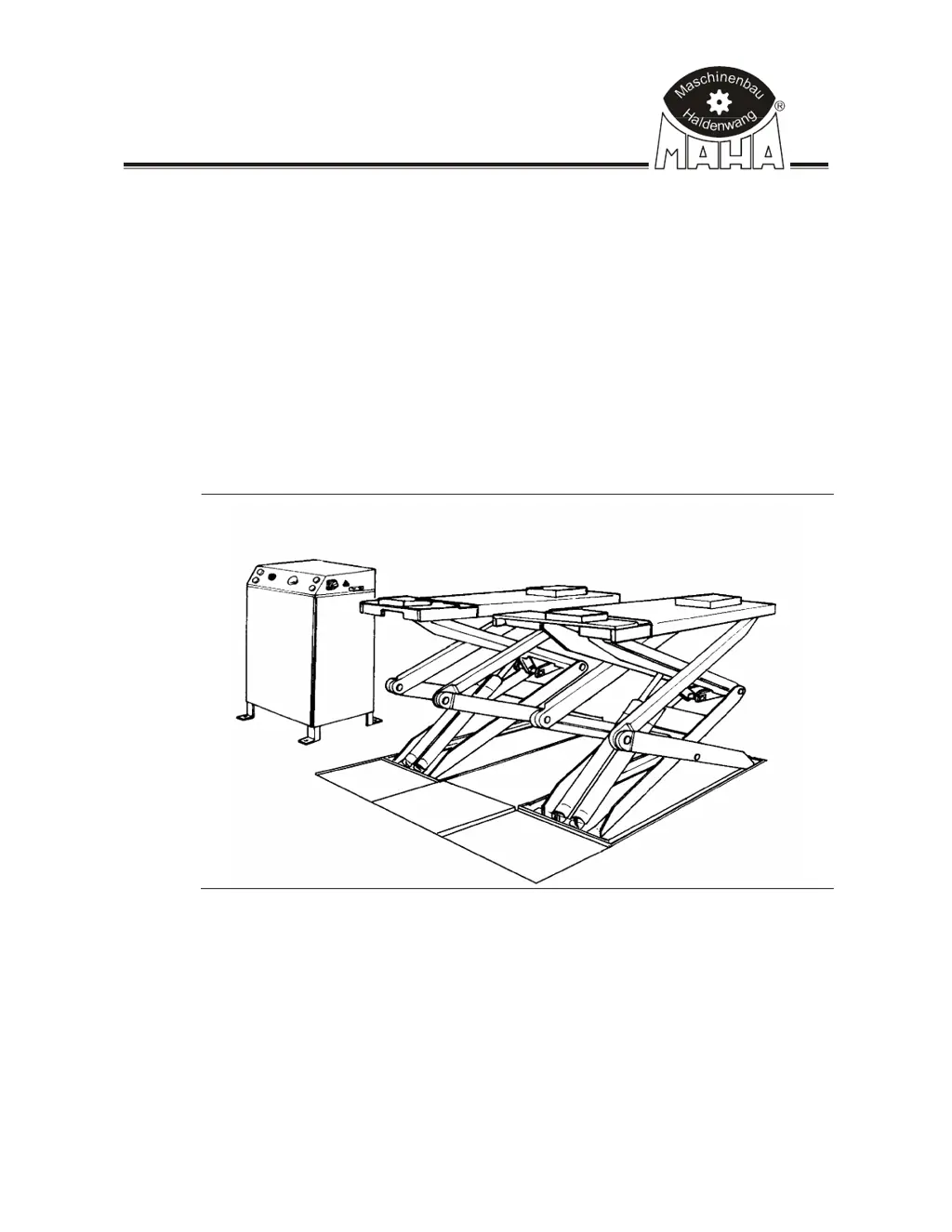

D1 5002BA1-GB01
Twin Scissors Lift
Twin F 3.0 A
Twin F 3.0 U
for vehicles up to 3,000 kg gross weight
Operation Manual
English

Table of Contents

Questions and Answers

  • E
    Emily JonesAug 5, 2025
    Why my MAHA Scissor Lifts does not raise?
    • J
      Jonathan WilliamsAug 5, 2025
      If your MAHA Scissor Lift doesn't raise, it could be due to several reasons. The motor direction of rotation might be incorrect, in which case you should interchange the two phases on the main switch. Alternatively, the hydraulic oil level might be insufficient, requiring you to add more hydraulic oil. Other potential causes include a faulty printed circuit board (replace it), a faulty UP button (check and replace if needed), a faulty maximum height limit switch sensor (check and replace if needed), a lowering valve that doesn't close (check, clean, or replace), or a dirty suction pump filter (check and clean it).
  • M
    matthewwoodAug 9, 2025
    What to do if MAHA Twin F 3.0 A Scissor Lifts does not lower when the DOWN button is pressed?
    • J
      John OsbornAug 9, 2025
      If your MAHA Scissor Lift does not lower when you press the DOWN button, several issues could be the cause. A jammed locking solenoid valve may be the culprit; verify if it's powered and check the magneto for damage, replacing it if disconnected or blown. The DOWN button itself might be faulty and need replacement. Another possibility is a malfunctioning printed circuit board, which would also require replacement. Lastly, the lowering solenoid valve might not be working correctly; verify if it's powered and check the magneto for damage, replacing if necessary.
  • T
    Tracy RiosAug 14, 2025
    Why MAHA Scissor Lifts lifting capacity is not sufficient?
    • S
      Steven TuckerAug 14, 2025
      If your MAHA Scissor Lift's lifting capacity is insufficient, the maximum pressure valve may not be properly set; in this case, set the maximum pressure valve. Alternatively, the pump could be faulty, requiring you to check and replace it if needed.
  • S
    Shannon MillerAug 17, 2025
    What to do if MAHA Twin F 3.0 A Scissor Lifts platforms do not stop in standing position?
    • R
      Ronald EllisAug 18, 2025
      If your MAHA Scissor Lift platforms do not stop in the standing position, it could be due to several reasons. The lowering and locking solenoid valves might be stuck open; verify that the solenoid valve sliders are not blocked. There could also be leakage in at least two hydraulic pipelines; check the connections for proper tightening and inspect the tubes for damage, replacing them if necessary. Alternatively, at least two hydraulic cylinders might be faulty; check and replace them if needed.
  • Z
    zachary85Aug 22, 2025
    What to do if MAHA Scissor Lifts doesn’t low pushing the DOWN button (without load)?
    • S
      Sean PenaAug 22, 2025
      If your MAHA Scissor Lift doesn’t lower when pushing the DOWN button (without load), it may be due to an excess of oil in the hydraulic circuit. To resolve this, push the DOWN button and the oil discharge button simultaneously.
  • L
    Lorraine DorseyAug 27, 2025
    Why MAHA Twin F 3.0 A does not lower smoothly?
    • S
      Steven LawsonAug 27, 2025
      If your MAHA Scissor Lift does not lower smoothly, there may be air in the hydraulic system. Bleed the hydraulic system to resolve this issue.
  • S
    Scott JohnstonAug 31, 2025
    Why lifting is not synchronised on MAHA Twin F 3.0 A?
    • B
      Brad RiceAug 31, 2025
      If lifting with your MAHA Scissor Lift is not synchronized, it could be due to leakage or air in the hydraulic system. Bleed the hydraulic system to resolve this.

Summary

General Information

Obligation in Case of Malfunction

Cautions for the Safety of the Operator

Essential safety precautions for operators before and during lift operation.

Warnings

Critical warnings about unauthorized modifications, safety devices, and part usage.

Product Description

Lift

Control Desk

Operation

Description of the lift's operational sequence, including lifting and lowering actions.

Technical Specification

Size and Main Features

Key dimensions, lifting capacity, and performance specifications of the lift.

Safety

General Warnings

Fundamental accident prevention rules and operator responsibilities for safe lift usage.

Risks During Vehicle Lifting

Identification of risks related to overloading and potential component failure during lifting.

Risks for People

Description of hazards to personnel resulting from improper or unsafe lift operation.

Installation

Preliminary Operations

Runway Assembly and Control Desk Positioning

Hydraulic System Connection

Guidance on connecting hydraulic hoses to platforms and the main hydraulic unit.

Electrical System Connection

Procedure for connecting the lift's electrical system, including sensors and power supply.

Starting

Checks and Inspections

Set Up and Adjustments

Limit Switches Adjustments

Operation and Use

Controls

Explanation of the lift's control panel, buttons, and their specific functions.

Vehicle Positioning

Lifting

Lowering

Step-by-step instructions for safely lowering the lift and its load.

Manual and Emergency Lowering

Troubleshooting

MAHA Twin F 3.0 A Specifications

General IconGeneral
Capacity3000 kg
Platform width630 mm
Max Capacity3000 kg
Drive TypeHydraulic
Power Supply400 V / 3 Ph / 50 Hz
