E-21
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Transmission

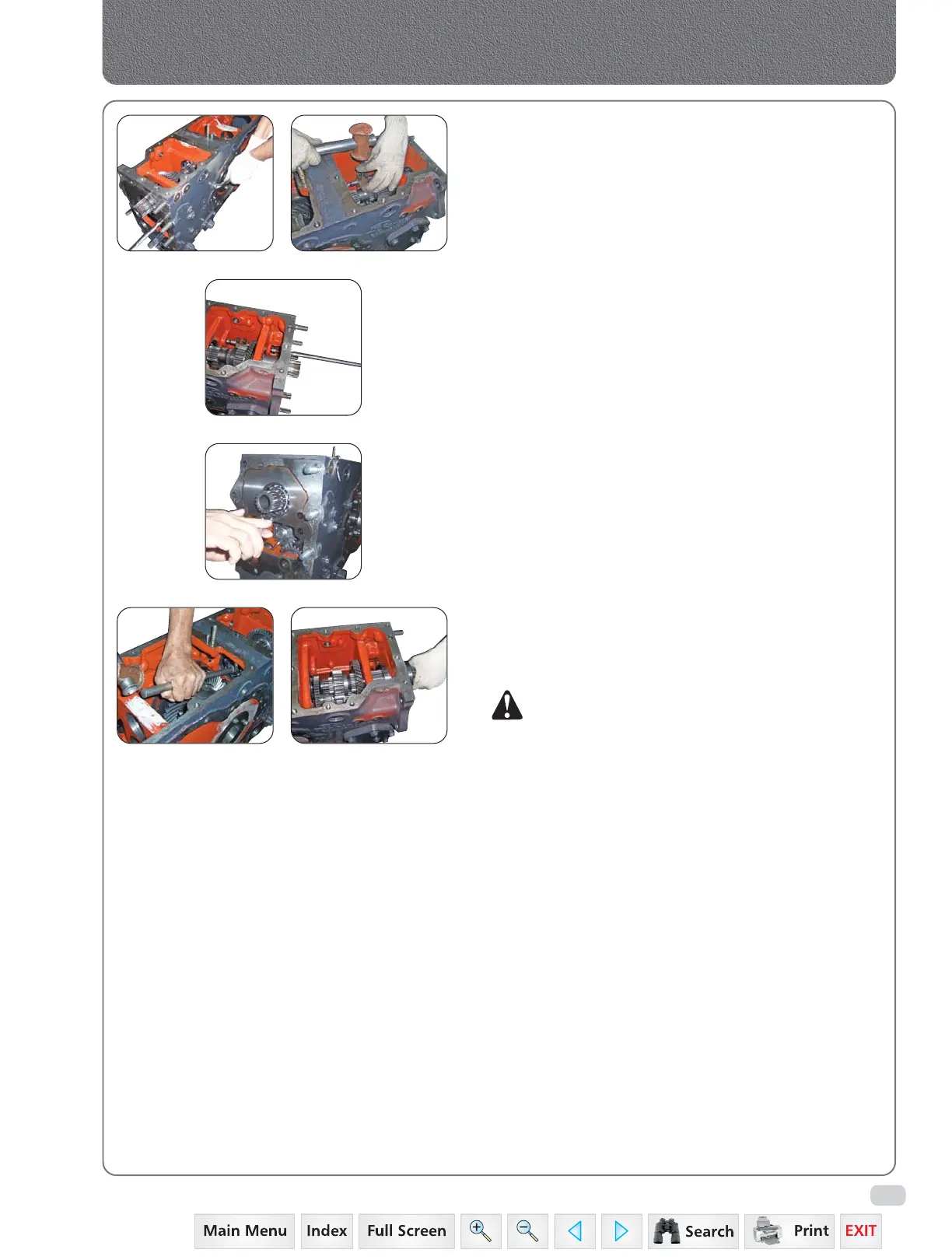

9. Remove spring pin from fork and rail. Remove
retainer bolts (2 Nos.), springs & ball and take
out the rail & forks.
10. Remove front and rear internal circlip of Range
shaft ball bearings.
11. Remove lock nut and lock washer of Range Top
Shaft.
12. Slowly tap the Range shaft from rear end. Hold
the high and medium gears. After the Range shaft
removal, take out the gears.
NOTE: Removal of Spline-shaft refer differential
assembly.
D. Rail Fitting – Range Section
1. Slide rail from rear side.
2. Insert fork in coupling and lock with spring pin
with rail.
3. Insert ball, spring at front and rear position of
transmission-case and insert retention bolt and
torque with specified value.
4. Assemble shifter arm in fork slot. Insert cross shaft
and lock the arm with roll pin with cross shaft.
