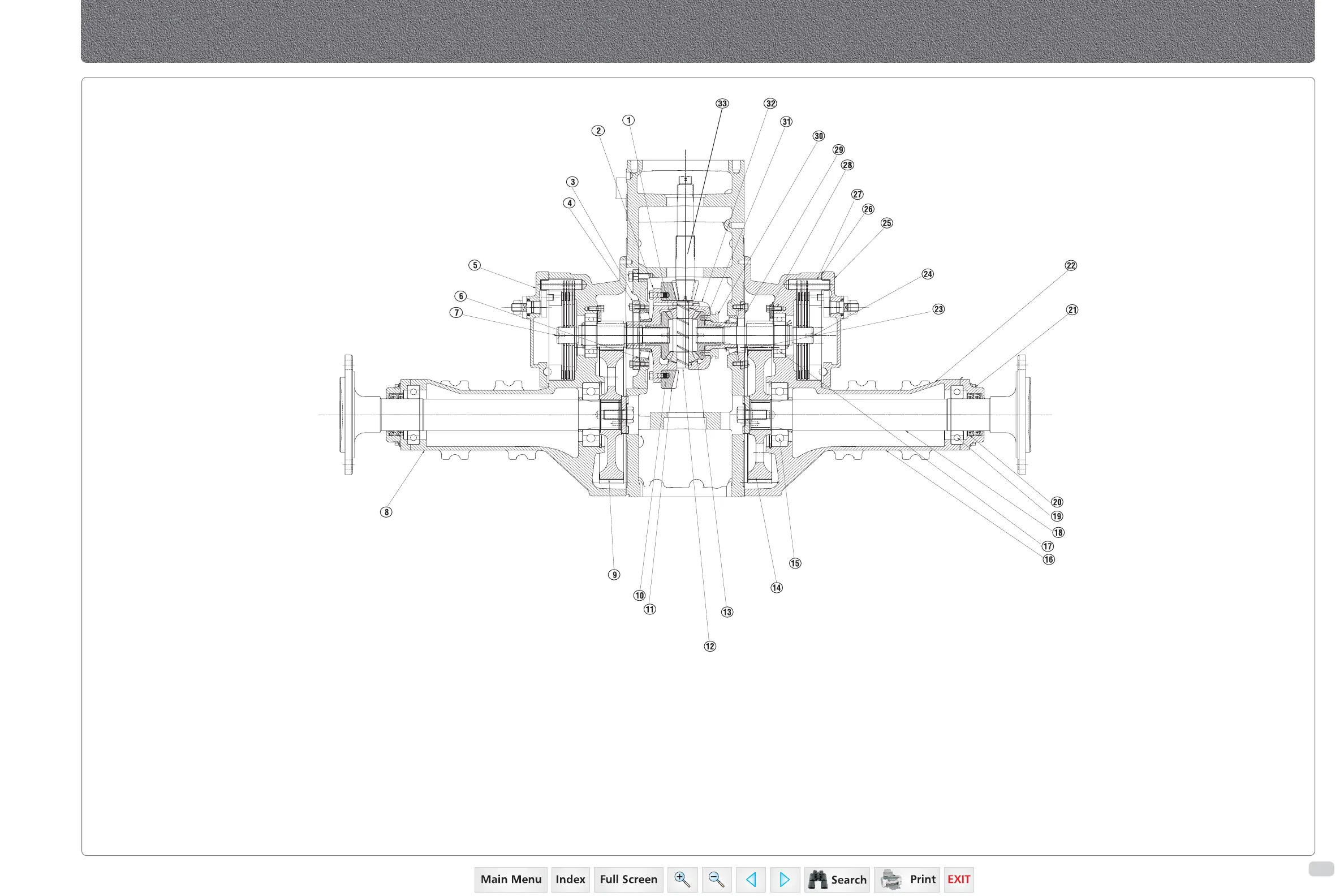

Rear Axle Layout - 35 Series
E-25
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
1. Pinion Differential Case
2. Differential Case
3. Differential Carrier LH
4. Retainer
5. Brake Assembly LH
6. Taper Roller Bearing
7. Bull Pinion Brake Shaft LH
8. Rear Axle Sub Assembly LH
9. Bull Gear LH
10. Bevel Gear Differential LH
11. Gear Crown Wheel
12. Differential Pinion Shaft
13. Bevel Gear Differential RH
14. Bull Gear RH
15. Ball Bearing
16. Rear Axle Assembly RH
17. Ball Bearing
18. Rear Axle
19. Ball Bearing
20. Oil Seal
21. Retainer Oil Seal
22. Rear Axle Carrier
23. Taper Roller Bearing
24. Bull Pinion Brake Shaft RH
25. Brake Assembly RH
26. Gasket Brake Cover
27. Brake Pin
28. Bearing Retainer Bull Shaft
29. Carrier Differential RH
30. Coupling Differential Lock
31. Thrust Washer Bevel Gear
32. Differential Assembly
33. Spline Shaft
