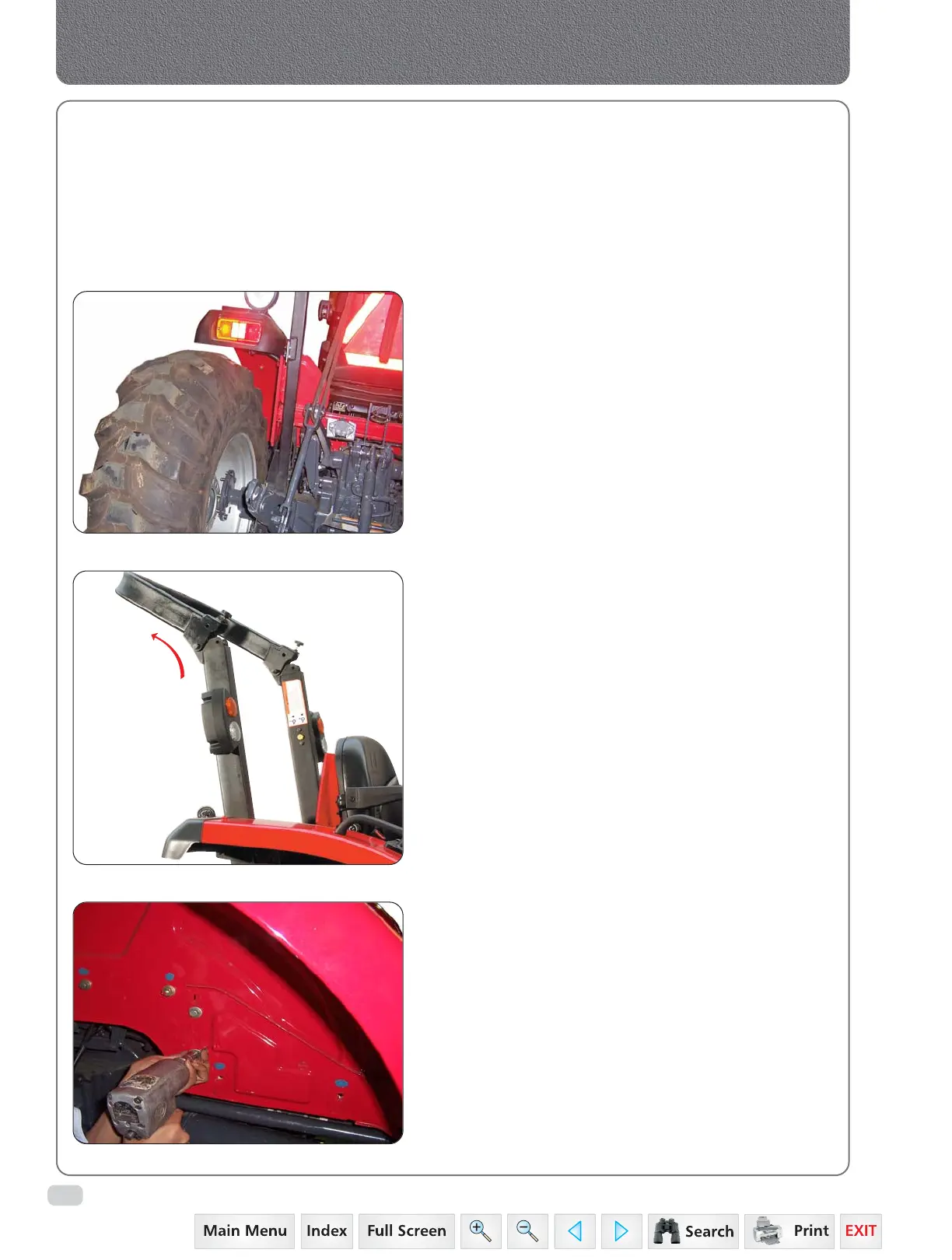

Removal of ROPS
Removal of Tires
Removal of Fenders
B. REAR AXLE
1. DESCRIPTION
The rear axle shafts are splined at the inner end. Drive is
bull gear and bull pinion type. One end of the bull pinion
shaft meshes in differential bevel gear and other end is
with brake plate. Hence the power is transmitted to axle
shaft from differential section through bull gear pair.
2. Removal
1. Front wheel to be wedged.
2. Use proper jack under the clutch housing or
transmission-case.
3. Remove tires.
4. Disconnect the wiring harness from couplers.
5. Remove ROPS, by removing ROPS Mounting
Bracket Assembly.
6. Remove fender mounting bolts.
Rear Axle

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
