E-30
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Rear Axle

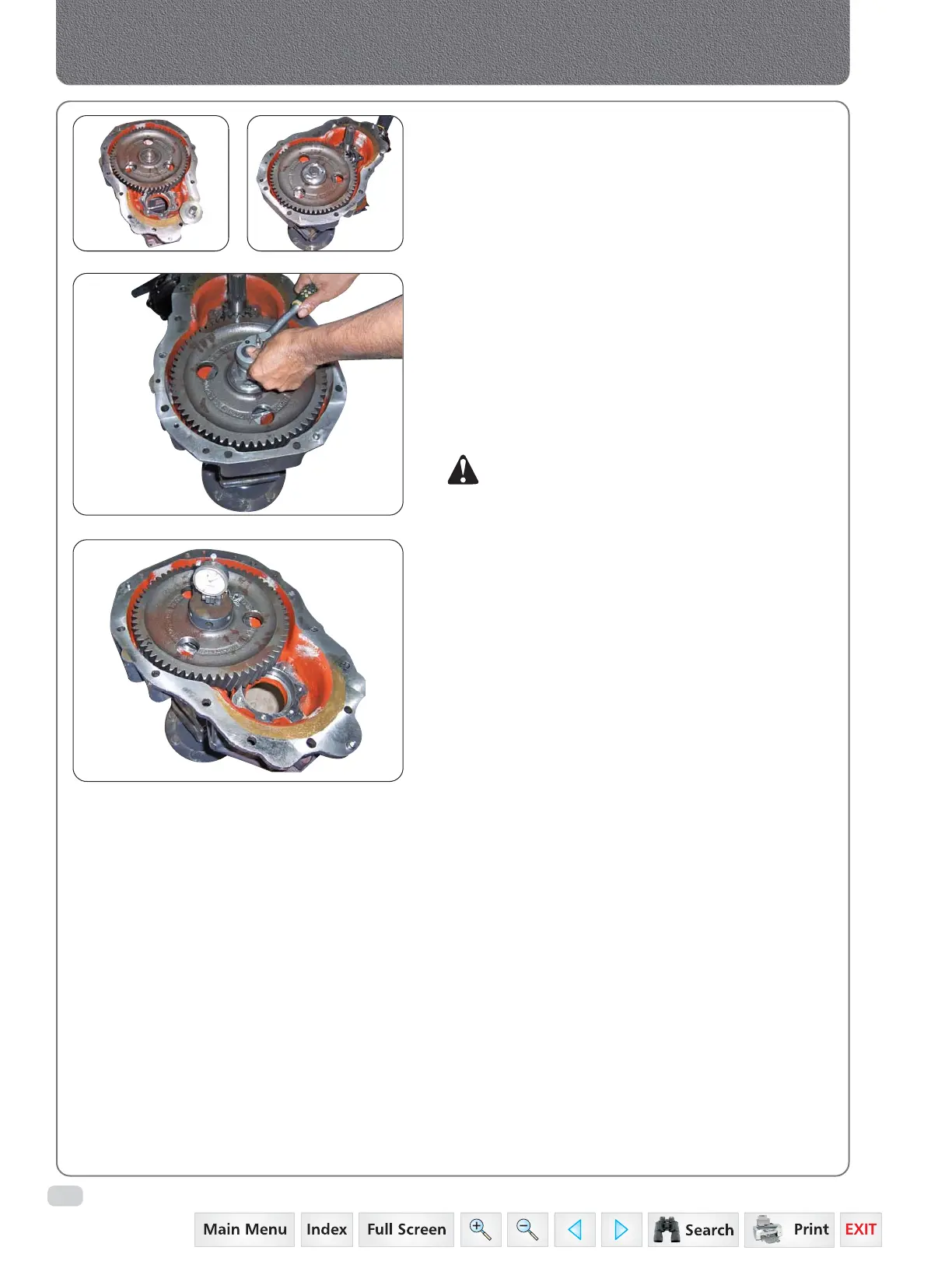

6. Keep Rear Axle with above assembly in vertical
position with spacer.
7. Hold RAC with hoist in positioning joint face
upward and install in Rear Axle.
8. Always first fit Bull Pinion Shaft and then insert
bull gear in the rear axle.
9. Insert Bull gear in end spline and Tap with copper
Hammer till big end bearing rest on inside spacer
and put shims, spacer and lock plate and bolt.
Torque the bolt with the specified values.
NOTE: New oil seal should be used while
reassembly.
a. Reverse procedure of removal using liquid gasket
and tighten the mounting bolts as specified.
b. Check the gap between rear axle face and bull
gear face by dial gauge, add required shims to
fill up the gap.
c. Assemble washer, lock plate and bull gear
retaining bolt. Torque them to 265 - 290 Nm.
d. Ensure free movement by rotating rear axle carrier.
