E-49
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Differential Lock System
3. Assembly
NOTE: Clean all parts and check the spring tension
or cracks. If necessary replace it.
Replace O’ rings and oil seals.
a. Fit oil seal at LH side.
b. Insert differential lock shaft, assemble spring.
c. Assemble fork, locating in differential lock
coupling.
d. Insert spring dowel near fork.
e. Insert washer and spring dowel at LH side.
4. Installation
a. Installation is reverse procedure of Removal.

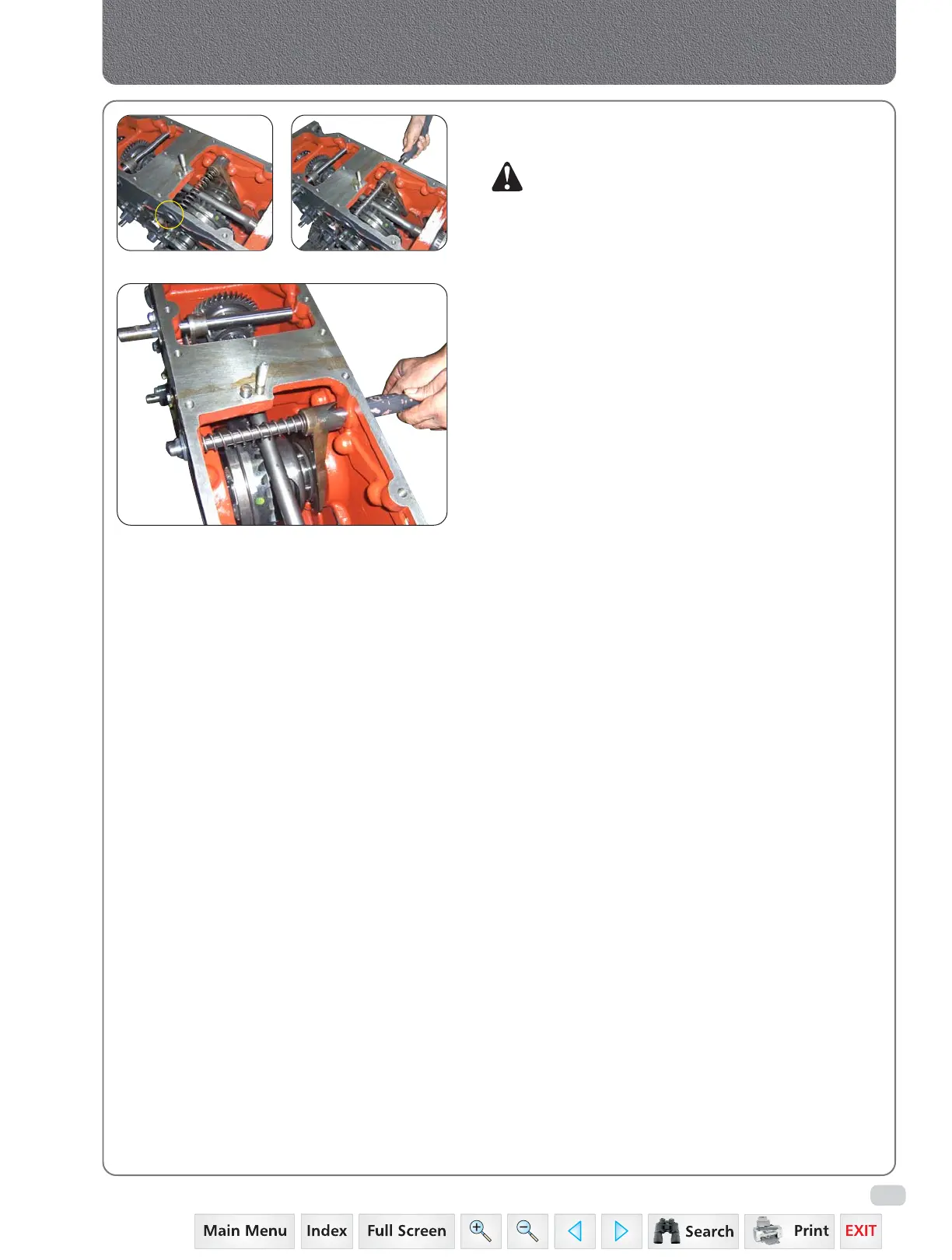

Oil Seal Fitment Assemble Diff. Lock Shaft
Assembling Differential Lock Shaft Assembly with Fork
