Mahindra 35 Series User Manual

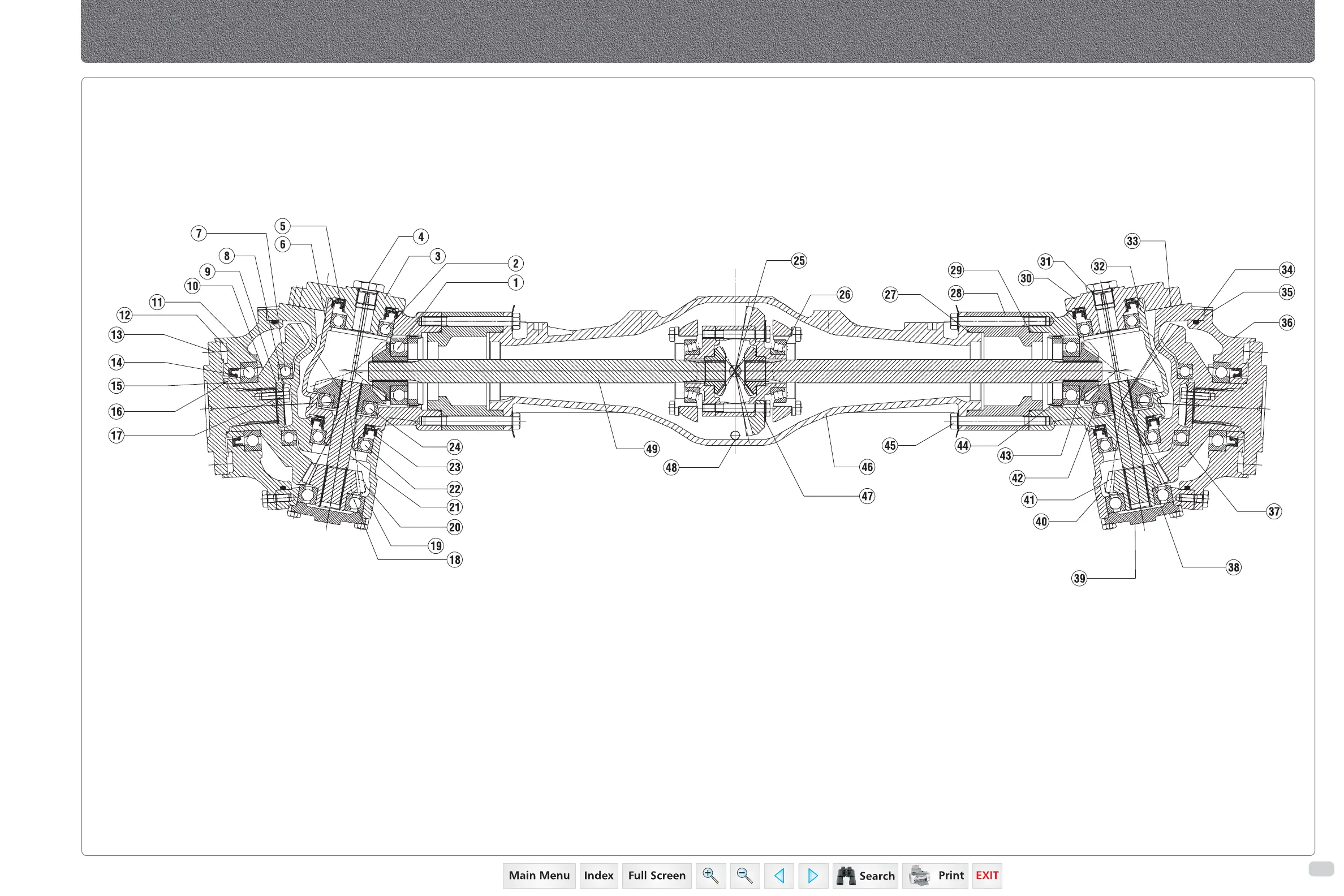

Front Axle Layout - 35 Series
F-25
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
1. Ball Bearing
2. Ball Bearing
3. Top Cover LH
4. Dipstick
5. Oil Seal
6. Side Housing LH
7. Ball Bearing
8. Washer Retaining Axle Shaft
9. Retainer Spindle Axle
10. Hex. Bolt
11. Retainer Bearing Hub Housing
12. Ball Bearing
13. Spindle Front Axle
14. Oil Seal
15. O’Ring
16. Collar Oil Seal
17. Hex. Bolt
18. Ball Bearing
19. Swivel Housing LH
20. Drain Plug
21. Shaft Side Housing
22. Ball Bearing
23. Oil Seal
24. Ball Bearing
25. Ring Gear
26. Taper Roller Bearing
27. O’Ring
28. Front Axle Spacer
29. O’Ring
30. Top Cover RH
31. O’Ring
32. Side Housing RH
33. Dowel
34. O’Ring
35. Shim
36. Hub Housing
37. Bevel Gear Final
38. Straight Bevel Gear
39. Cover Swivel Housing Bottom
40. Swivel Housing RH
41. Drain Plug
42. Bevel Gear
43. Bevel Pinion
44. Lock Nut
45. Hex. Bolt
46. Beam Housing
47. Lock Plate
48. Drain Plug
49. Shaft Beam Housing

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
