F-24
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

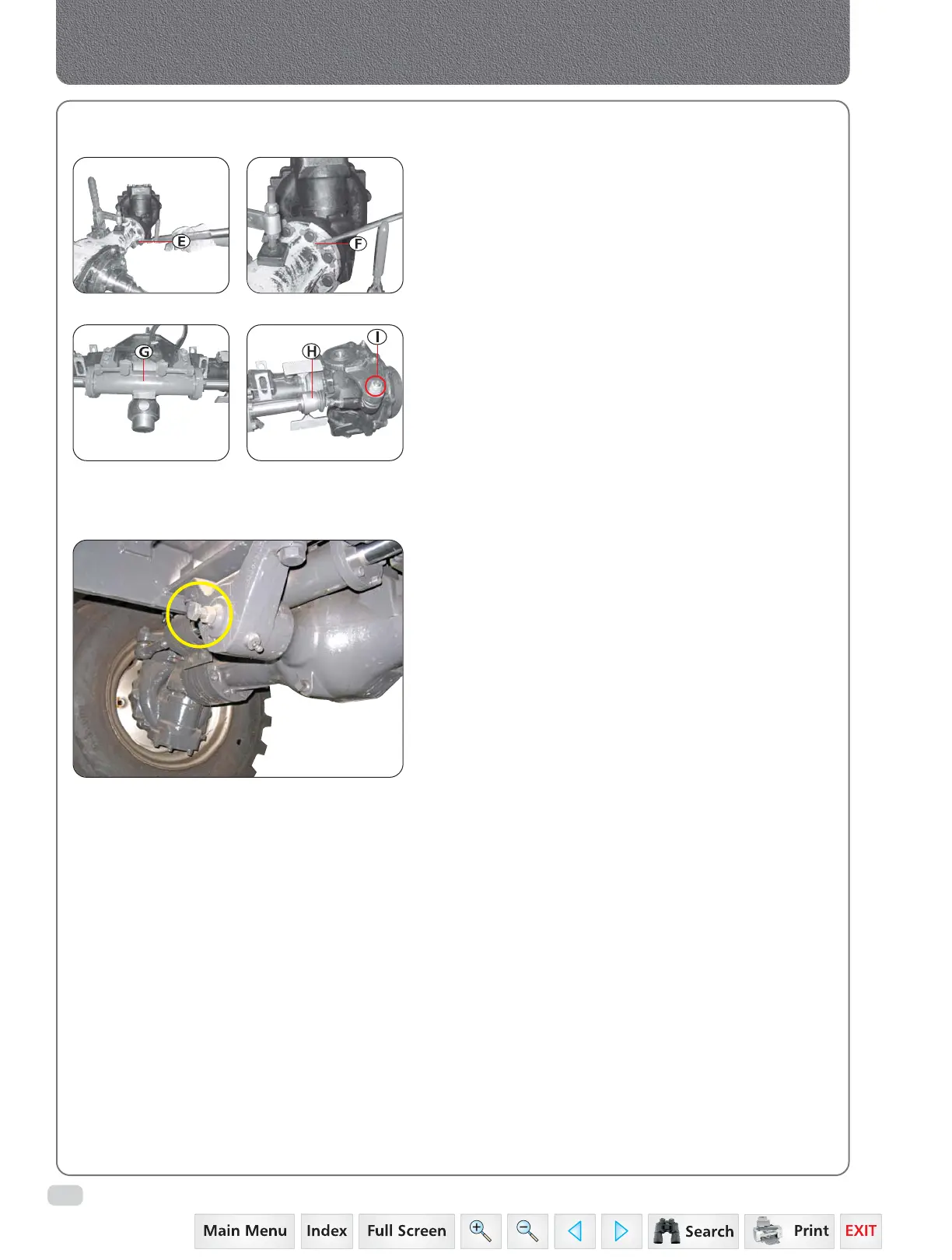

G. ASSEMBLY OF SIDE HOUSING TO BEAM
HOUSING AND DIFFERENTIAL CARRIER
7. Fit the bracketaries.
8. Tighten the bolts (E) to 100 Nm torque and crimp
the lock washer (F) at the bolt head.
9. Fit both sides oil level dipstick.
10. Fit the steering cylinder (G) and tie rod ends (H)
and fit guard for steering cylinder.
11. Assembly power cylinder (G) on beam housing
and tighten it to torque 140 Nm.
12. Fit tie rod ball joint assembly (H) to power cylinder
and top cover. Tighten these joints (I) to torque
160 Nm.
Pillow Block Bolt Adjustment
1. Assemble the Pillow Blcok front and rear with
semichassis with the help of bolts.
2. Fix the semichassis and try to swing the axle.
3. Then tighten pillow block bolt to stop the
swinging action of axle.
4. Loose the same bolt for only half rotation and
tighten the nut to get float.
Front Axle
