G-16
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Electrical System

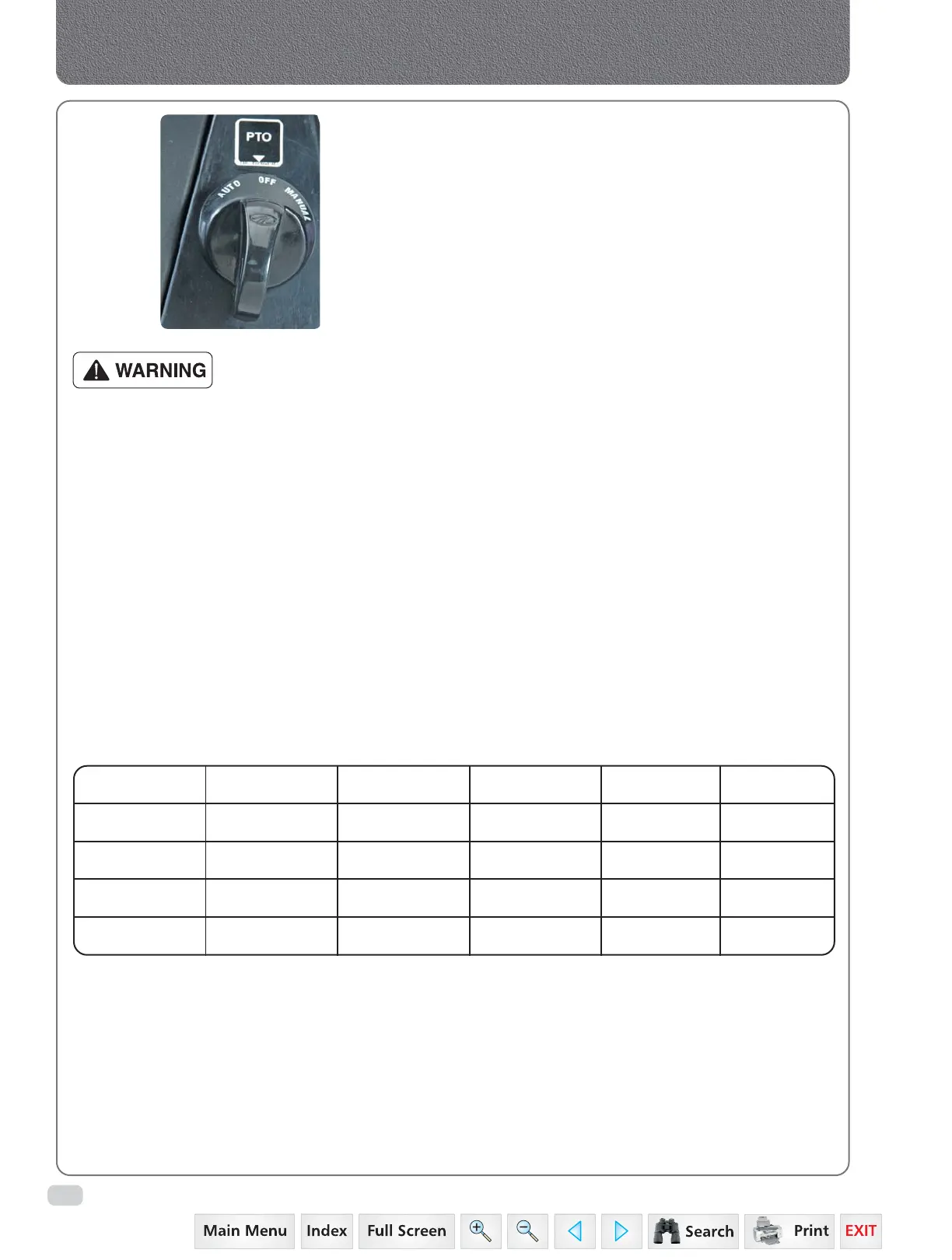

3. Alignment of Manual-mark with pointer - Operates
Manual mode
This switch can be used when the “PTO Engage - Disengage
Switch” is in ON position.
Keeping this switch in MANUAL-POSITION, will FORCE the
PTO shaft rotation in RAISED as well as LOWERED
position of implement. Even disengagement of clutch will
not stop the PTO-SHAFT rotation. The “PTO Engage -
Disengage Switch” will be CONTINUOUSLY-GLOWING
when this switch is in MANUAL mode.
While the PTO is in MANUAL-MODE, some
inadvertent movement of personnel near the
PTO shaft can prove fatal.
POWER TAKE OFF
PTO is operated by electrically. PTO can be operated by
using a combination of “PTO Engage - Disengage
Switch” and “PTO Mode Switch”.
After switching ON the “PTO Engage - Disengage
Switch” the operator has a CHOICE to select AUTO or
MANUAL MODE through “PTO Mode Switch”.
The PTO will turn-Off if the “PTO Engage - Disengage
Switch” or “PTO Mode Switch” is in OFF position.
Refer table shown for combinations of PTO Operations.
PTO
ON / OFF Switch
PTO
Control Switch
Clutch Pedal PC Lever PTO Switch PTO Shaft
ON Manual Mode Either pressed Either raised Glows Rotates
or released or lowered
ON Auto Mode Pressed Either raised Blinks Stationary
or lowered
ON Auto Mode Either pressed Raised Blinks Stationary
or released
ON Auto Mode Released Lowered Glows Rotates
