G-15
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Electrical System
Tampered electrical wiring or connections will
render this feature INEFFECTIVE. In such a case,
some Inadvertent movement of personnel near
the PTO shaft can prove fatal.

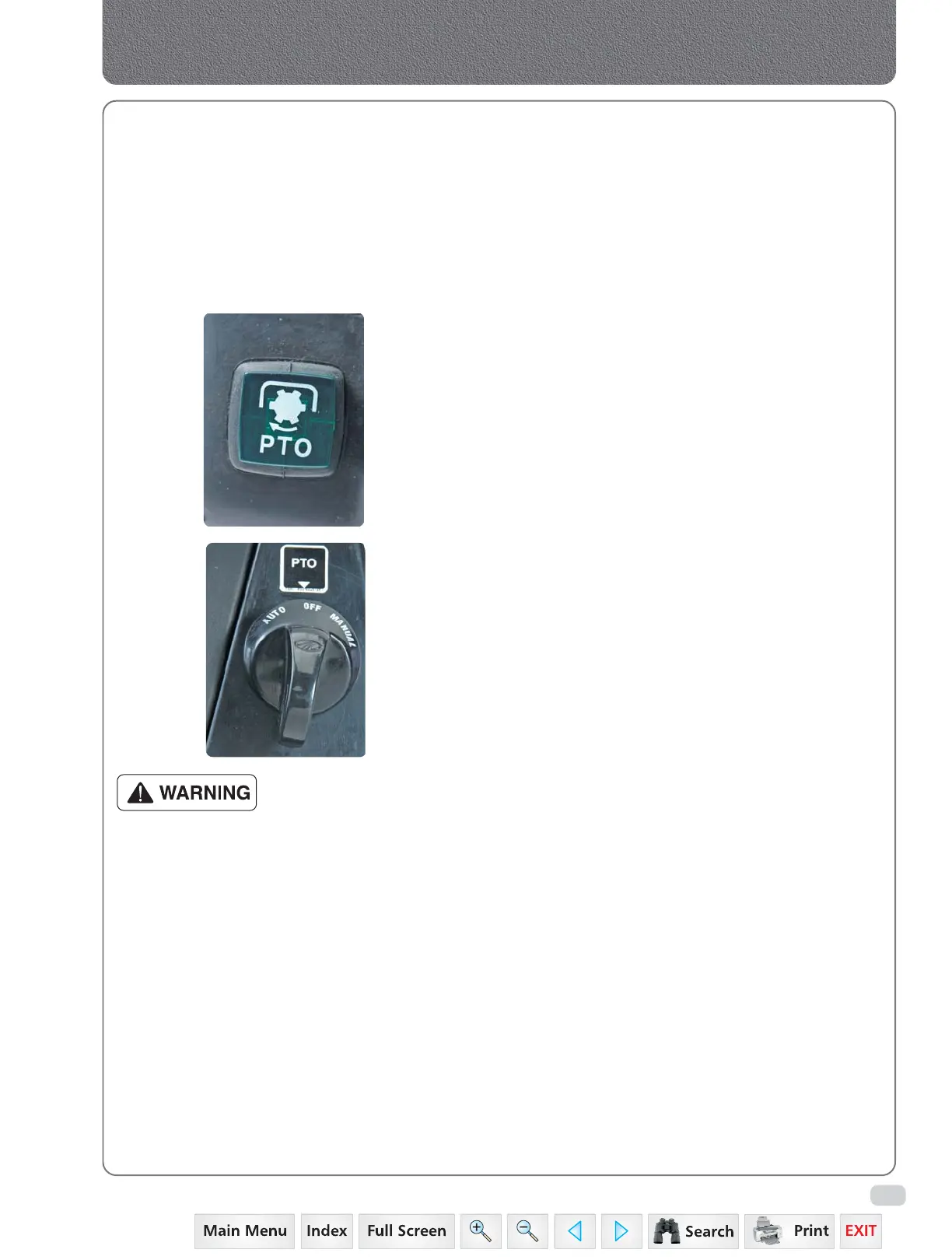

PTO Operation Switches
PTO can be operated by using a combination of “PTO
Engage - Disengage Switch” and “PTO Mode Switch”.
After switching ON the “PTO Engage - Disengage
Switch” the operator has a CHOICE to select AUTO or
MANUAL MODE through “PTO Mode Switch”.
The PTO will turn-Off if the “PTO Engage - Disengage
Switch” or “PTO Mode Switch” is in OFF position.
PTO MODE switch (PTO Auto / Manual / Off
Switch)
This rotary switch enables the operator to choose the
AUTO or Manual mode of PTO and even turn-off the
PTO when desired.
The Operating positions of knob are as follows:
1. Alignment of OFF - Mark with Pointer - PTO
Turn-OFF
The Auto and Manual Mode switch will be activated
when the “PTO Engage - Disengage Switch” is in ON
position.
2. Alignment of Auto-mark with pointer - Operates
AUTO mode
This switch can be used when the “PTO Engage -
Disengage Switch” is in ON position.
When this switch is in AUTO-POSITION, the PTO shaft
rotation will be stopped as soon as the implement is
raised.
This will happen irrespective of clutch being engaged
or disengaged. Such a situation is indicated by
A BLINKING “PTO Engage - Disengage Switch”
While this switch is in AUTO-POSITION, IF the PC lever
is lowered and clutch pedal released, the PTO shaft will
become operative and will be indicated by
A CONTINUOUSLY-GLOWING “PTO Engage - Disengage
Switch”
While this switch is in AUTO-POSITION and the clutch
pedal is pressed, the PTO shaft rotation will be
stopped and indicated by A BLINKING “PTO Engage -
Disengage Switch”
PTO Engage - Disengage Switch
This is a 2 in 1 switch, located on LH side of steering
column on the dashboard.
1. Press the PTO switch to engage the PTO.
2. To disengage the PTO, press the PTO switch again.
