B-6
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
ASSEMBLING OF FRONT AXLE TO THE ENGINE
ASSEMBLY
1. Follow the reverse sequence of removal,
to assemble the Front axle assembly to the Engine
assembly. Tighten the Mounting bolts.
2. Start Engine and rotate the steering wheel in both
directions for few times until the Air trapped in
the pipelines is expelled. Check for steering noise
and vibrations.

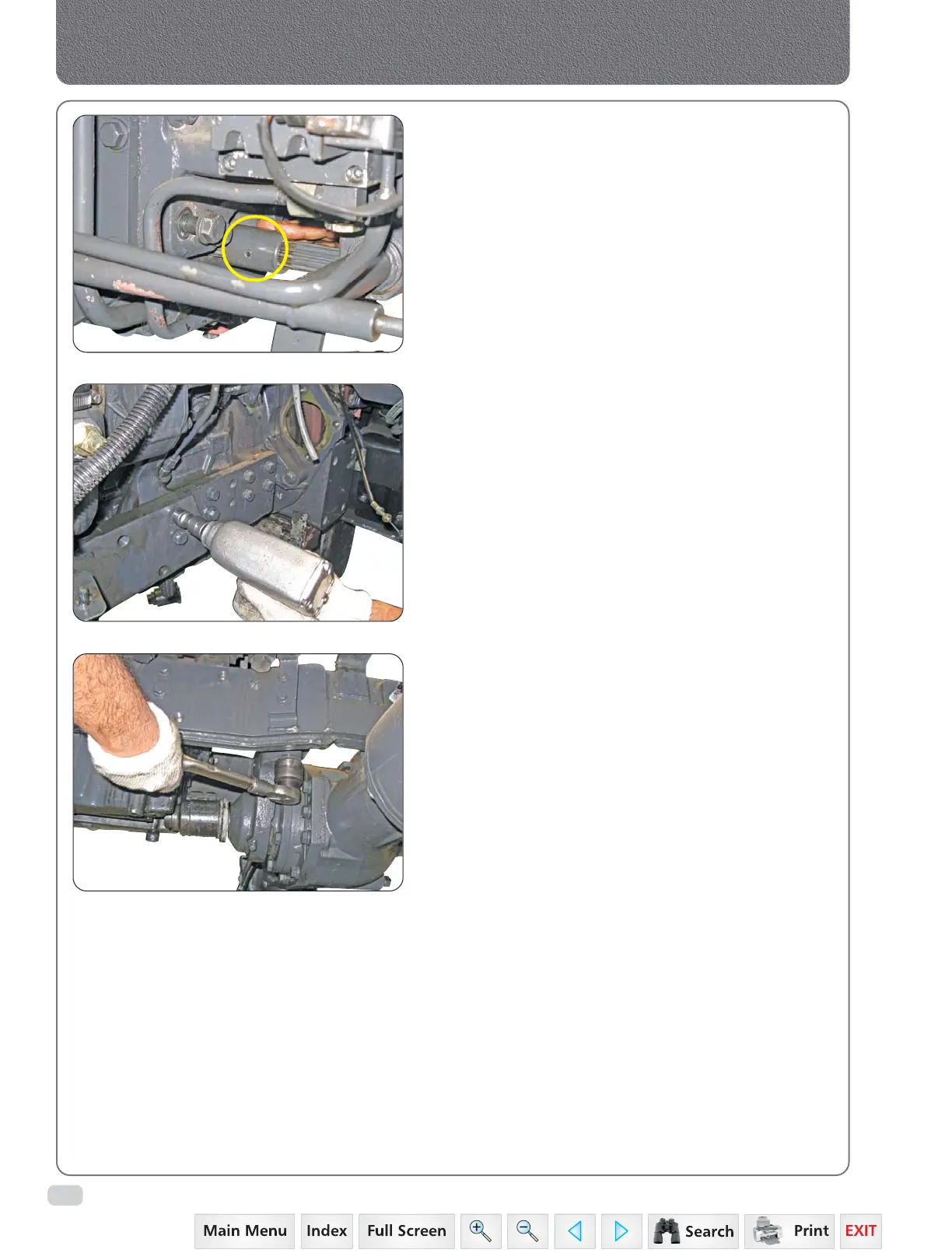

Splitting Between Front Axle & Engine
22. Remove the bolts connecting the Front Axle
& Semi chassis in pillow block.
23. Move the semi chassis away from the front axle.
15. Drive out rear coupling roll pin by suitable punch.
16. Remove the propeller shaft.
17. Support the Engine by placing a Jack below
Engine Oil sump.
18. Support the semi chassis by using the crane.
19. Remove the semi chassis bolts from the engine.
20. Move the assembly of Front Axle & Semi chassis
away from the engine.
21. Support the Front Axle with a suitable
crane / jack.
To Next Page
