B-7
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Splitting Between Engine & Transmission

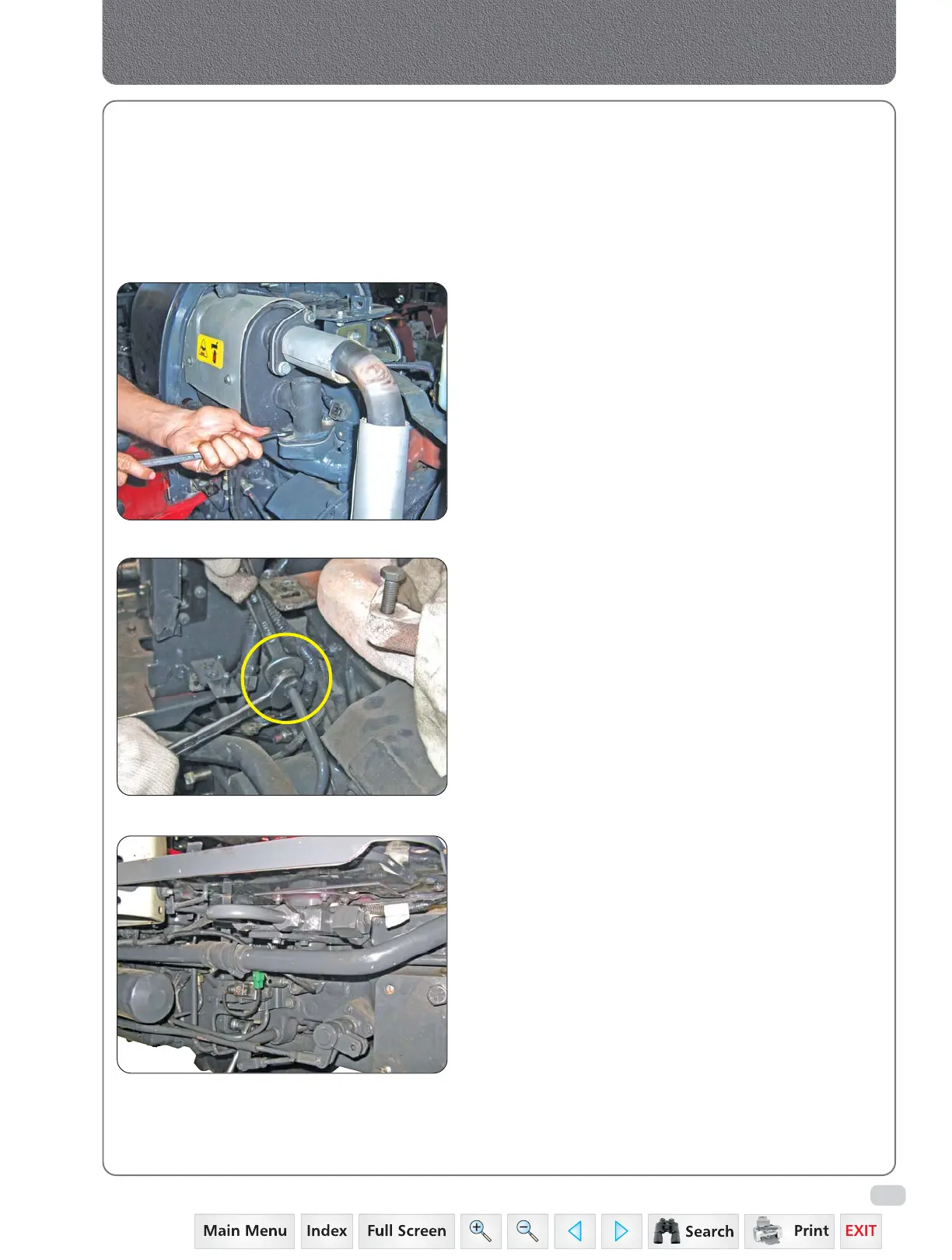

SPLITTING BETWEEN ENGINE AND TRANSMISSION
1. Refer the procedure (1-20) of splitting between
Front Axle and Engine.
2. Support the engine using the rail-jack and
transmission case using tractor splitting track.
3. Remove the hood hinging bracket from Hood
mounting support (HMS).
4. Dismantle the exhaust muffler.
5. Remove the mud splash guards.
6. Disconnect the following hydraulic oil connections
& Plug the pipes to prevent oil spillage.
a) Hydraulic pipe from filter to Hydraulic
pump.
b) Hose from Hydraulic pump to HSU.
c) Hose from HSU to PTO solenoid valve.
d) Pipe from Hydraulic pump to Auxiliary
valve.
7. Disconnect accelerator cables from engine.
8. Disconnect front wiring harness, Starter motor
wiring harness.
9. Disconnect rear wiring harness, Alternator,
F/R Neutral switch, Fuel line wiring harness from
central wiring harness.
10. Disconnect wiring harness to the relay box.
11. Disconnect the fuel lines between Fuel filter
& fuel tank.
To Next Page
