B-8
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Splitting Between Engine & Transmission

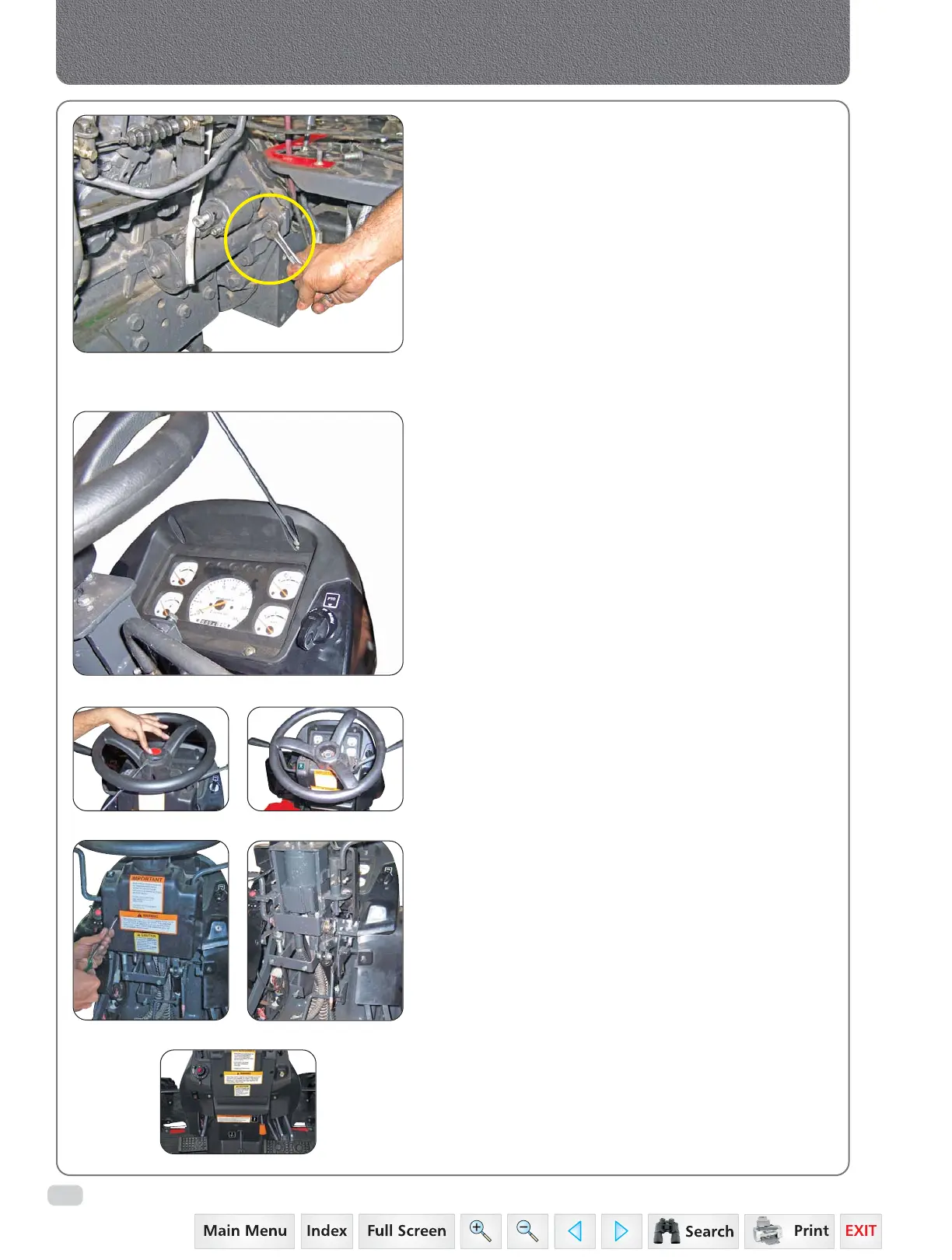

12. Dismantle the Starter motor.
13. Dismantle the instrument cluster & disconnect
the wiring harness to the instrument cluster.
14. First remove the steering wheel cap and steering
wheel nut. Remove the steering wheel by
loosening nut and use steering wheel puller to
remove the steering wheel.
15. Dismantle the steering column cover, disconnect
the wiring harness to PTO engaging switch.
16. Dismantle the scuttle cover.
17. Disconnect the clutch, brake Vertical linkage
connections below front platform.
18. Disconnect the F/R cable from HSU mounting
bracket.
19. Remove the wiring harness from firewall clamps
completely.
20. Dismantle the Fire wall assembly from front
platform.
21. Dismantle hood mounting support bracket.
22. Dismantle Dust cover from clutch hosing.
