35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Steering

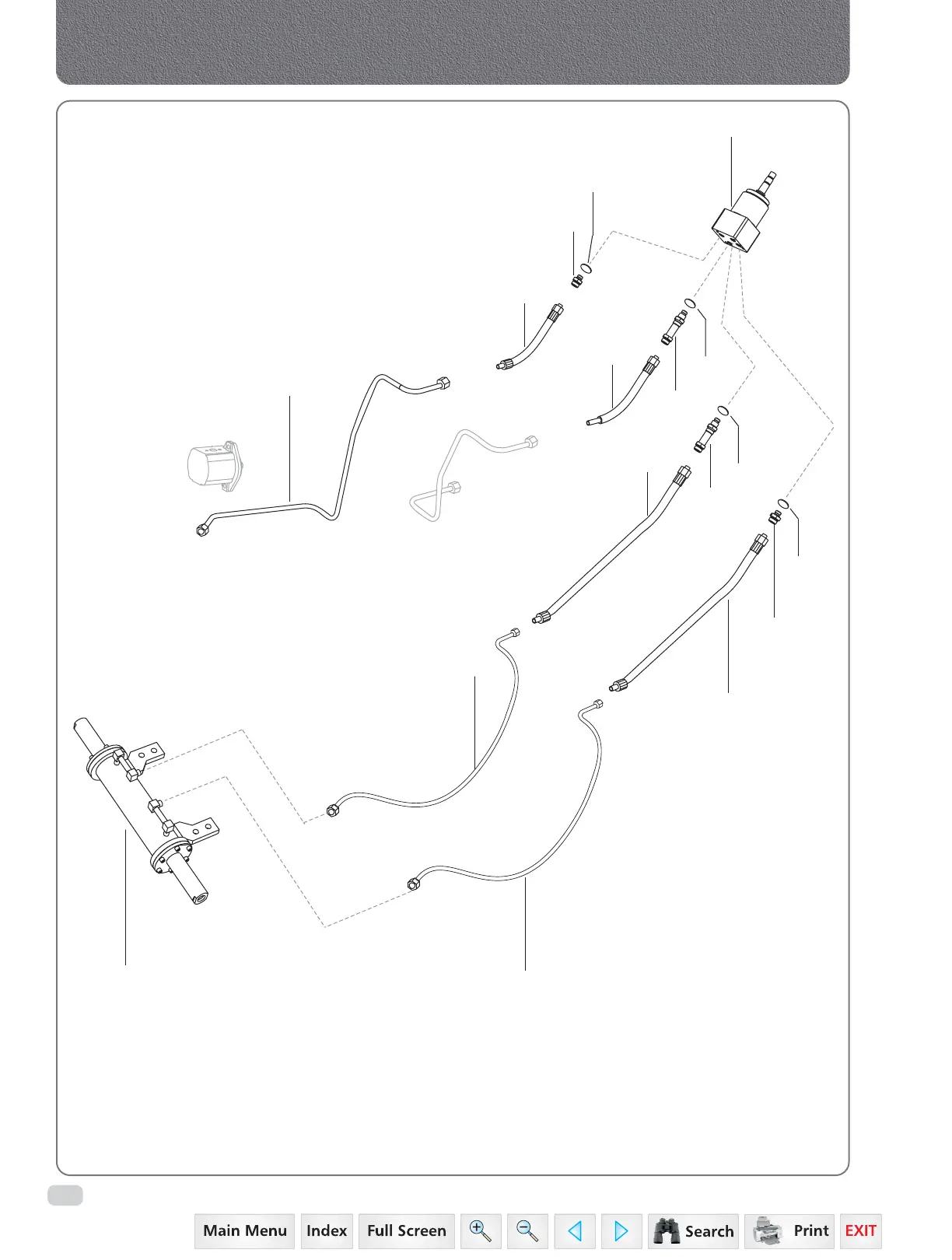

2. POWER STEERING PIPES & FITTINGS
6
7
7
8
3
8
2
5
5
5
2
9
9
3
5
4
1
1 Pipe Steering Pressure From Pump To Hose
2 Adaptor - T & L Port Of HSU ( Series 5 )
3 Adaptor ( P & R Port On HSU )
4 Steering Control Unit
5 O'Ring for P, L, R & T Ports of HSU
6 Cylinder Power Steering
7 Hose HSU To Cylinder
8 Hose Pressure, HSU Integral Column
9 Hose
