H-12
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Steering
8. Removal of Steering Cylinder from Tractor
a. Jack up the tractor.
b. Open the hood.

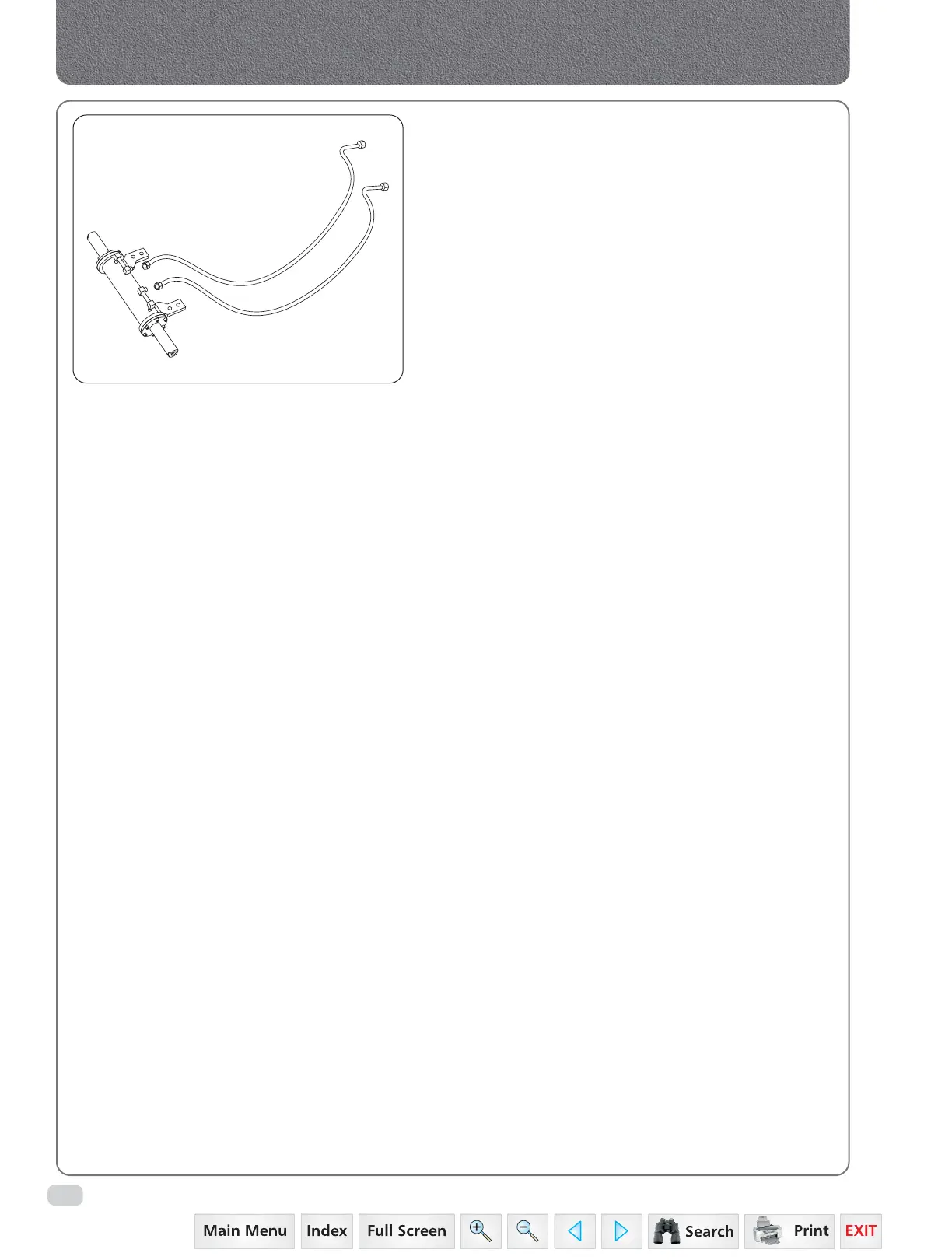

c. Disconnect both hoses from HSU to Steering
cylinder.
d. Plug both ends of the hoses to prevent entry of
dust.
e. Remove plastic ties binding the axle breather hose
and push the hose below battery mounting plate
towards the axle.
f. Close the hood.
g. Hold the front axle with ropes.
h. Remove both front wheels.
i. Remove front & rear propeller shaft guards.
j. Remove propeller shaft sleeve at transmission
case end.
k. Disconnect Propeller shaft bearing from bearing
bracket.
l. Slide the propeller shaft towards axle first and
then slide away from the axle.
m. Remove mounting bolts holding axle to semi-
chassis.
n. Move the axle away from the tractor.
o. Remove both connecting links connected to axle
& steering cylinder.
p. Remove Steering cylinder mounting bolts from
axle.
q. Move away the steering cylinder.
9. Inspection
Visually inspect all parts and replace those parts which
are not in good condition. Inspect cylinder bore finished
surface and piston surface. Piston rod surface. Inspect
for abnormal wear scoring or damage.
a) Thoroughly wash all components in clean solvent
and blow dry with compressed air.
b) Check the cylinder bore for scratches or grooves.
c) Inspect the cylinder bore that is out of round must
be replaced.
d) Inspect the piston and piston rod for scratches
and wear, then check the piston rod or
straightness.
