H-16
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Steering

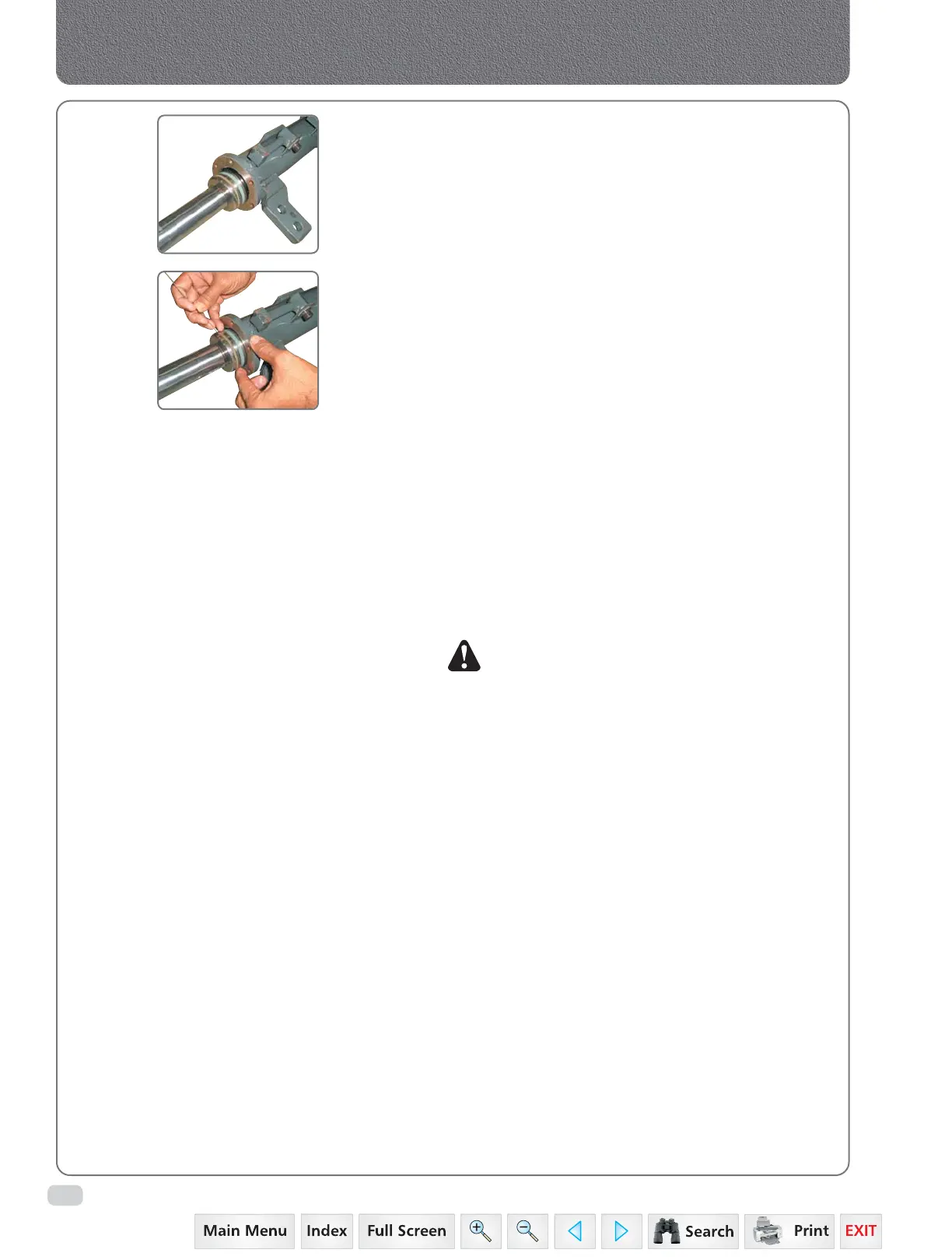

6. Further tap the rod till the piston comes out.
7. Inspect the piston seal and bearing ring for wear
or cracks.
8. Remove wear or damaged seal or ring and install
with new one. If these seals or O'Rings damaged,
this will result into external leakages / free
wheeling problem.
Steering Cylinder Refitment
1. After installing new seals and o’ring on piston
and cylinder head, tap gently by plastic hammer
the rod to align it to cylinder housing face
mounting bolt.
2. Tighten the allen screw of cylinder head to
cylinder housing as per the specified torque.
(i.e.25Nm / 18 lb.ft.)
NOTE: Whenever dismantling of steering cylinder
for inspection/checking always replace piston
seal, head cover seals, rod seals, wiper ring
and O’Ring (Seal Kit).
