Mahindra 35 Series User Manual

I-38
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Hydraulics
20. AUXILIARY VALVE - SINGLE SPOOL
Auxiliary valve is standard fitment on 5035 and
optional fitment on 4535, 4035 & 3535 Tractors.
Removal of Single Spool Auxiliary Valve and
Pipings
1. Remove right hand side rear wheel assembly.
2. Position rail and jack beneath RH side of the
rear axle and jack up the tractor.

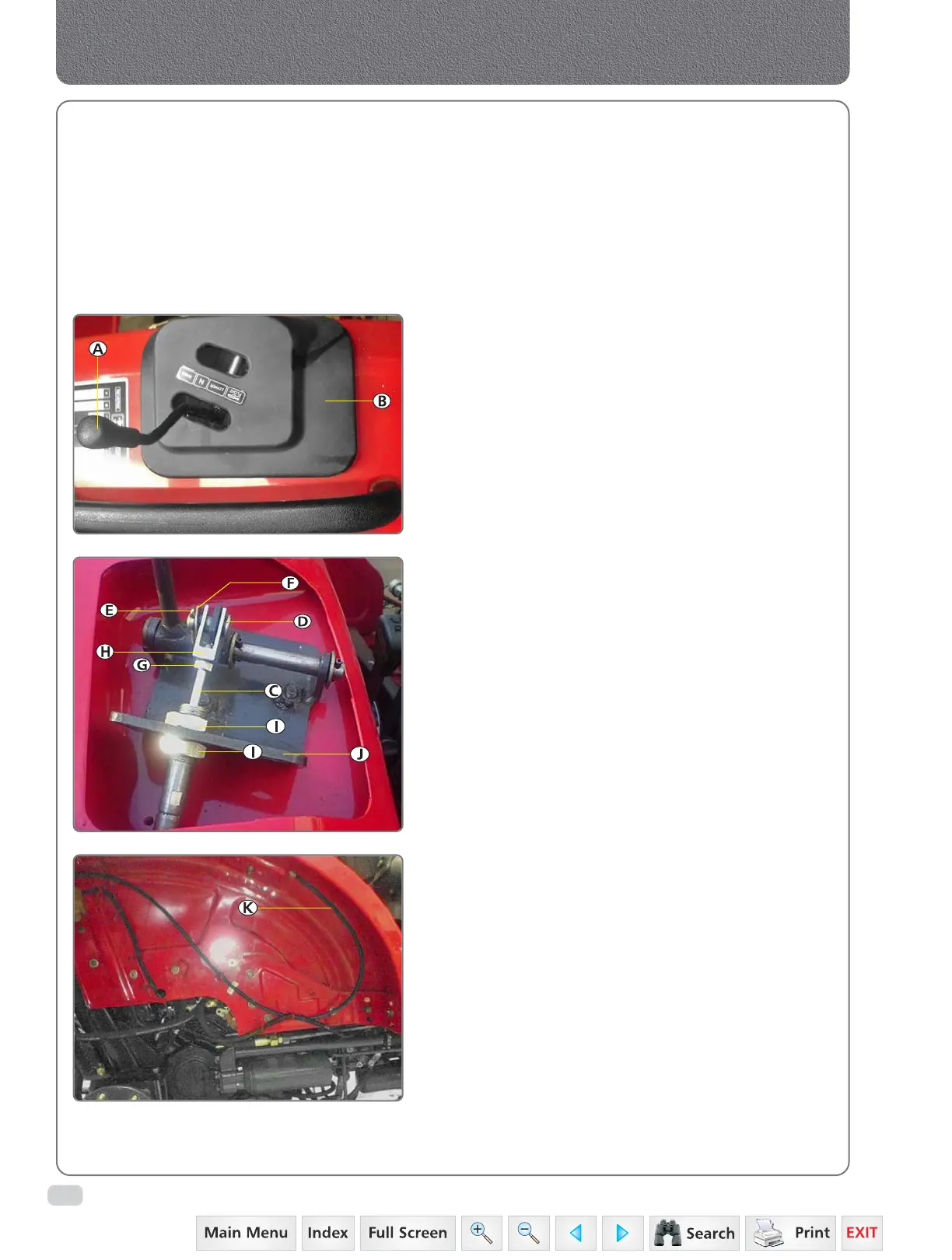

3. Remove auxiliary valve knob (A) and then
remove auxiliary valve cover (B).
4. Disconnect aux valve inner cable (C) from lever
assembly by removing pin (D), cotter pin (E)
and washer (F).
5. Loosen the small nut (G) behind the clevis (H)
and take out clevis from inner cable. Preserve
the clevis safely.
6. Loosen nuts (I) on cable outer and remove cable
assembly from bracket auxiliary valve lever
mounting (J) and remove cable out of fender
assembly.
7. Free the cable assembly (K) from fender guide
clip.
