I-39
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Hydraulics

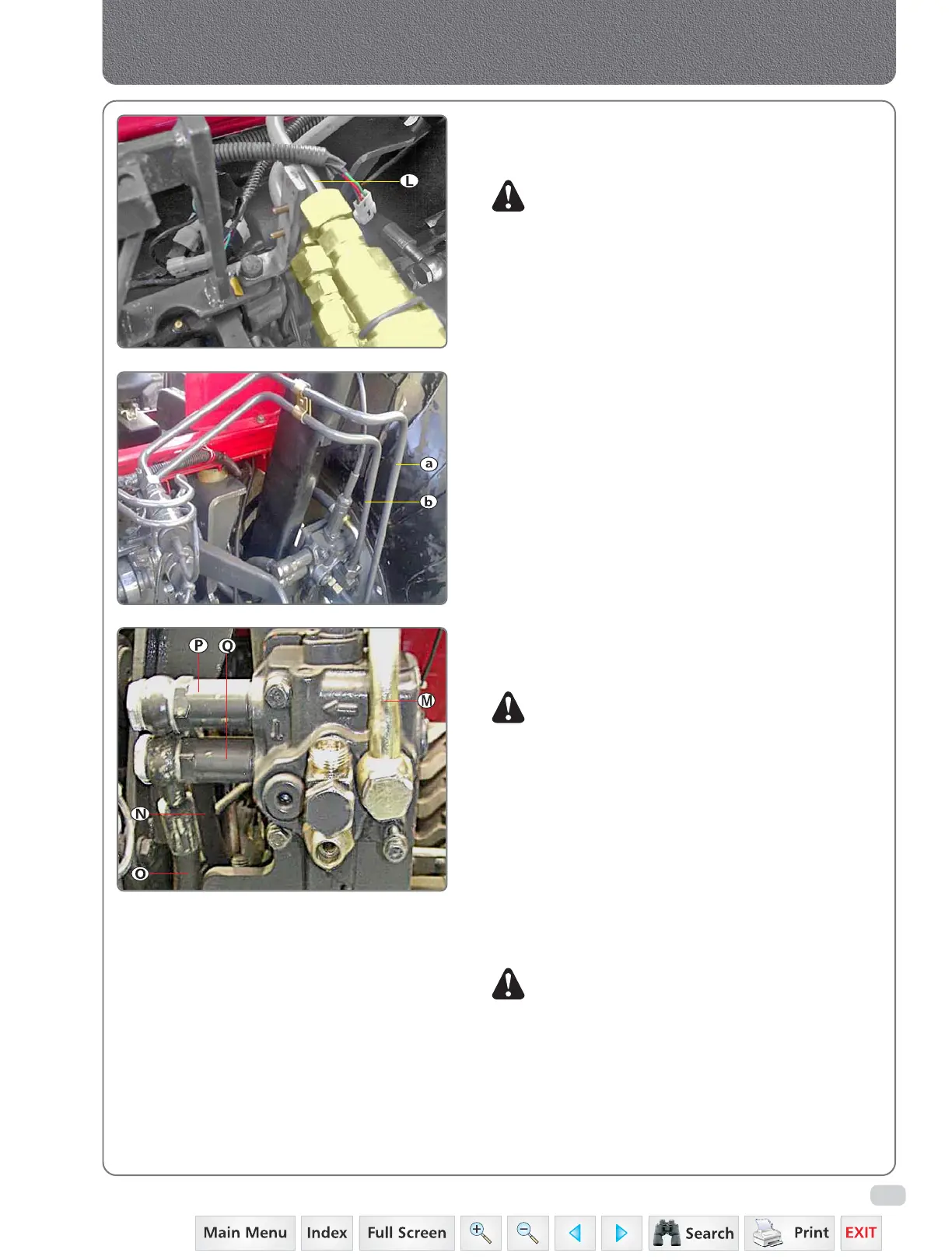

9. Take out the two pipes (a & b) connected to
auxiliary valve ports A1 & B1 by loosening the
respective connectors.
10. Remove Hose Auxiliary-valve P Port to Adapter
P Port (M) by removing banjo bolt.
NOTE: After removal of Banjo bolt from auxiliary
valve, take care to see the open ports of
the auxiliary valve are properly plugged.
11. Disconnect Hose Auxiliary-valve C Port to
Adapter V Port (O) & Hose Auxiliary-valve T Port
to Adapter T Port (N) by removing banjo bolt
from adapter fitted on C & T ports.
12. Loosen adapter (P&Q) from C & T ports and
immediately plug the ports. Preserve the
adapters and washers.
13. At this stage Auxiliary valve can be removed
from the mounting bracket for replacement by
removing mounting bolts.
NOTE: Do not fit repaired auxiliary valve on the
tractor. It is recommended to replace the
complete auxiliary valve with cable assembly
as a single unit.
8. Dis-assemble pipe clamps (L) by removing
hardware and free the pipes off the bracket.
NOTE: Before removing the pipes and connector,
keep an oil collection tray below the
auxiliary valve.
After removal of connectors from auxiliary
valve, take care to see that open ports of
the auxiliary valve are properly plugged.
