I-40
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Hydraulics

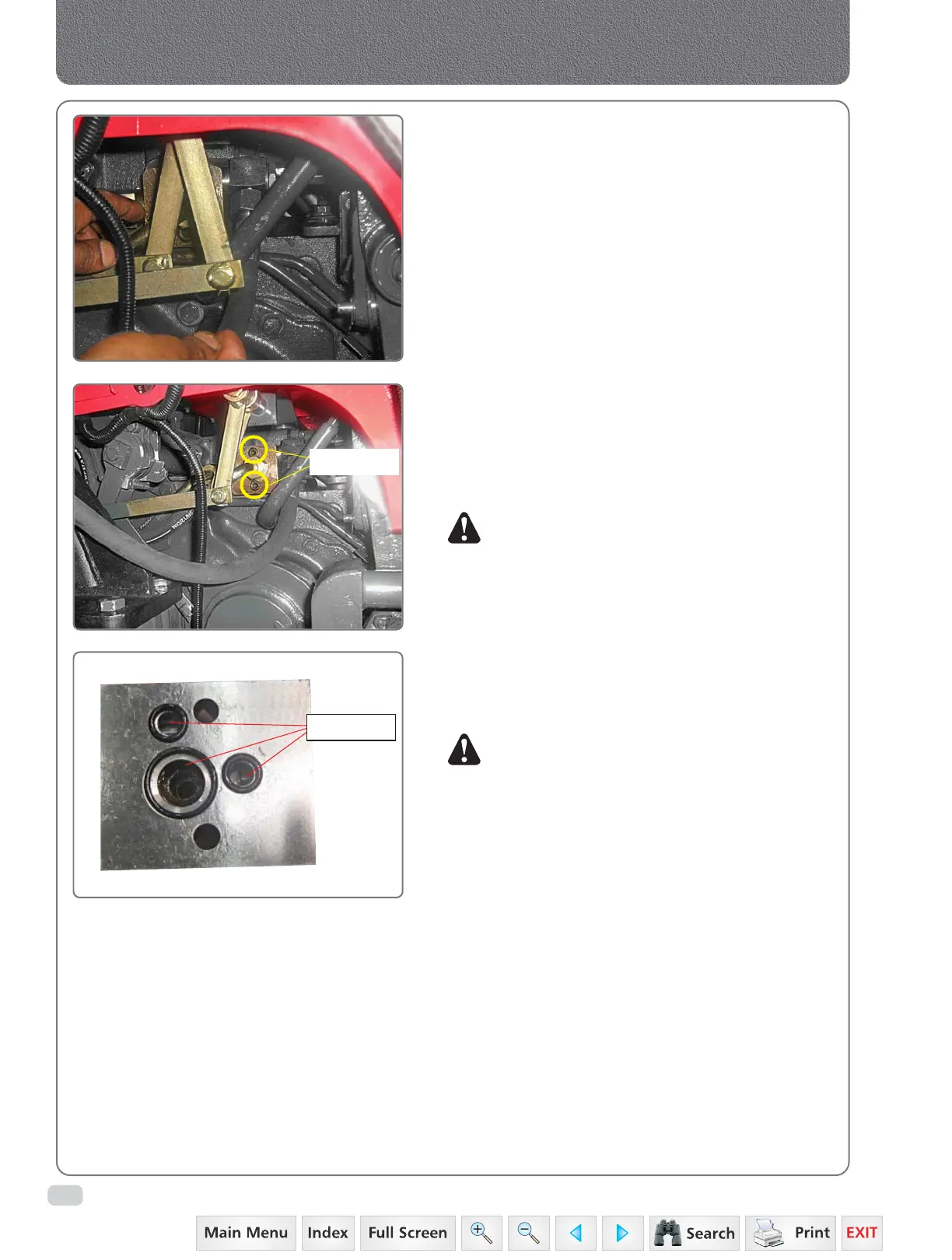

15. Loosen allen bolts and take out adapter plate
assembly from the hydraulic lift housing.
16. Loosen banjo bolt & banjo body of the
respective hose to remove the hose for
checking and further replacement if required.
NOTE: During re-assembly orient the hoses as
required such that both the end fitting are
assembled and tightened properly.
For removal of hoses connecting auxiliary valve to
adapter plate & adapter plate from Hydraulic unit
follow the procedure mentioned below:
14. Disassemble PC-DC operating links, by
removing the cotter pins from PC-DC linkage
assembly.
17. Check the condition of the O’Rings on the
adapter plate for damages and replace with
new ones if required.
NOTE: O’Rings from closing flange assembly
mounted on hydraulic lift housing has been
used for adapter plate. For ordering new
O’Rings refer parts catalogue page of
hydraulic lift housing
Refitment of Single Spool Auxiliary Valve and
Pipings
For refitment of Auxiliary Valve and piping follow
disassembly procedure in reverse sequence.
Allen Bolts
O’ Rings
