Mahindra 35 Series User Manual

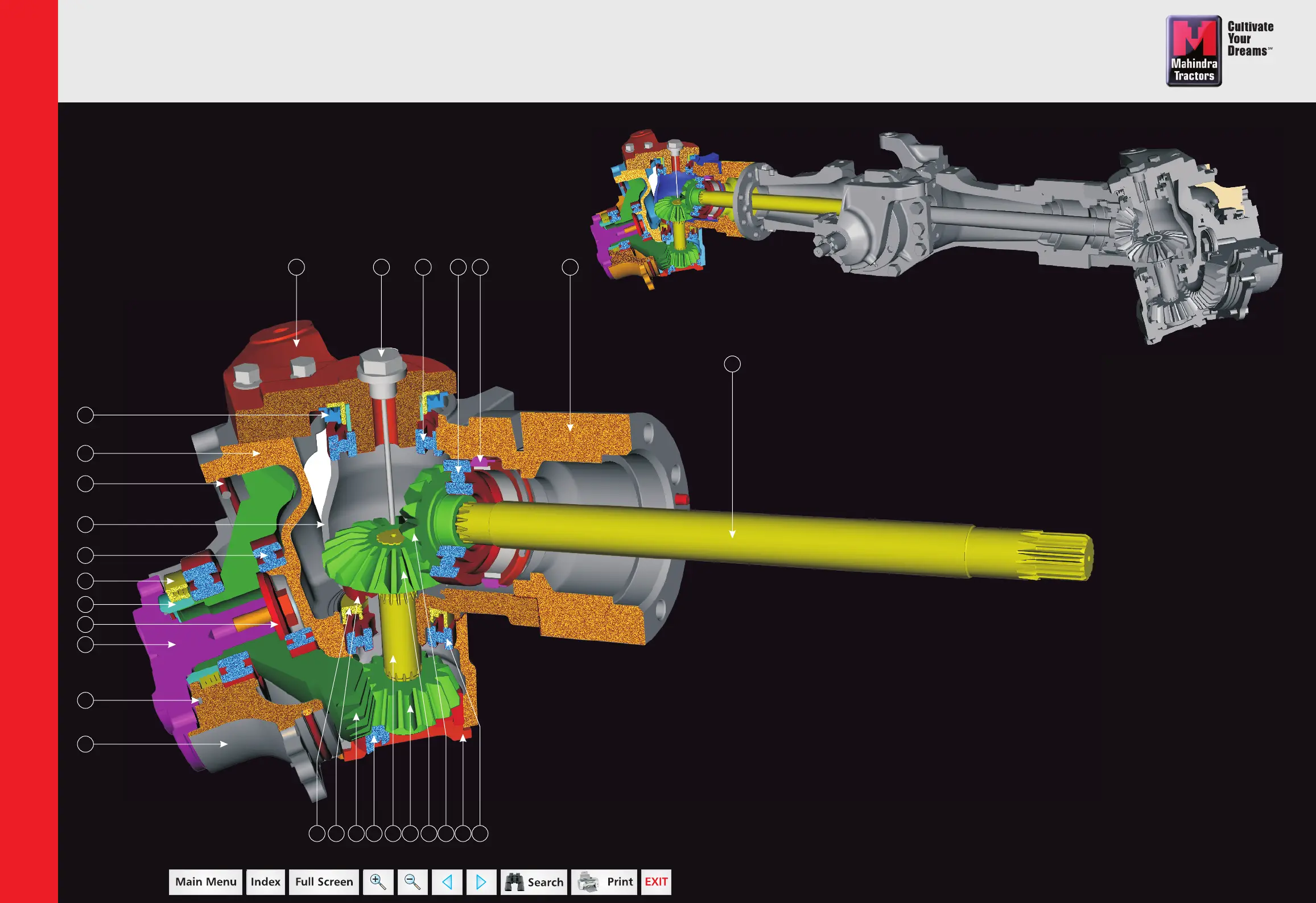

Front Axle - Side Section
8
9
10
12
11
13
14
15
16
17
18
2220 2119 23 24 25 26 27 28
5 4 3 2
1
67
1. Shaft Beam Housing
2. Spacer
3. Lock Nut
4. Bearing
5. Bearing
6. Dip Stick
7. Top Cover
8. Oil Seal
9. Swivel Housing
10. O’Ring
11. Side Housing
12. Ball Bearing
13. Oil Seal
14. Collar
15. Retainer Washer
16. Spindle
17. O’Ring
18. Hub Housing
19. Oil Seal
20. Ball Bearing
21. Straight Bevel Gear
22. Bearing
23. Shaft Side Housing
24. Straight Bevel Pinion
25. Bevel Gear Intermediate Reduction
26. Bevel Pinion Intermediate Reduction
27. Cover Swivel Housing
28. Ball Bearing

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
