Mahindra 35 Series User Manual

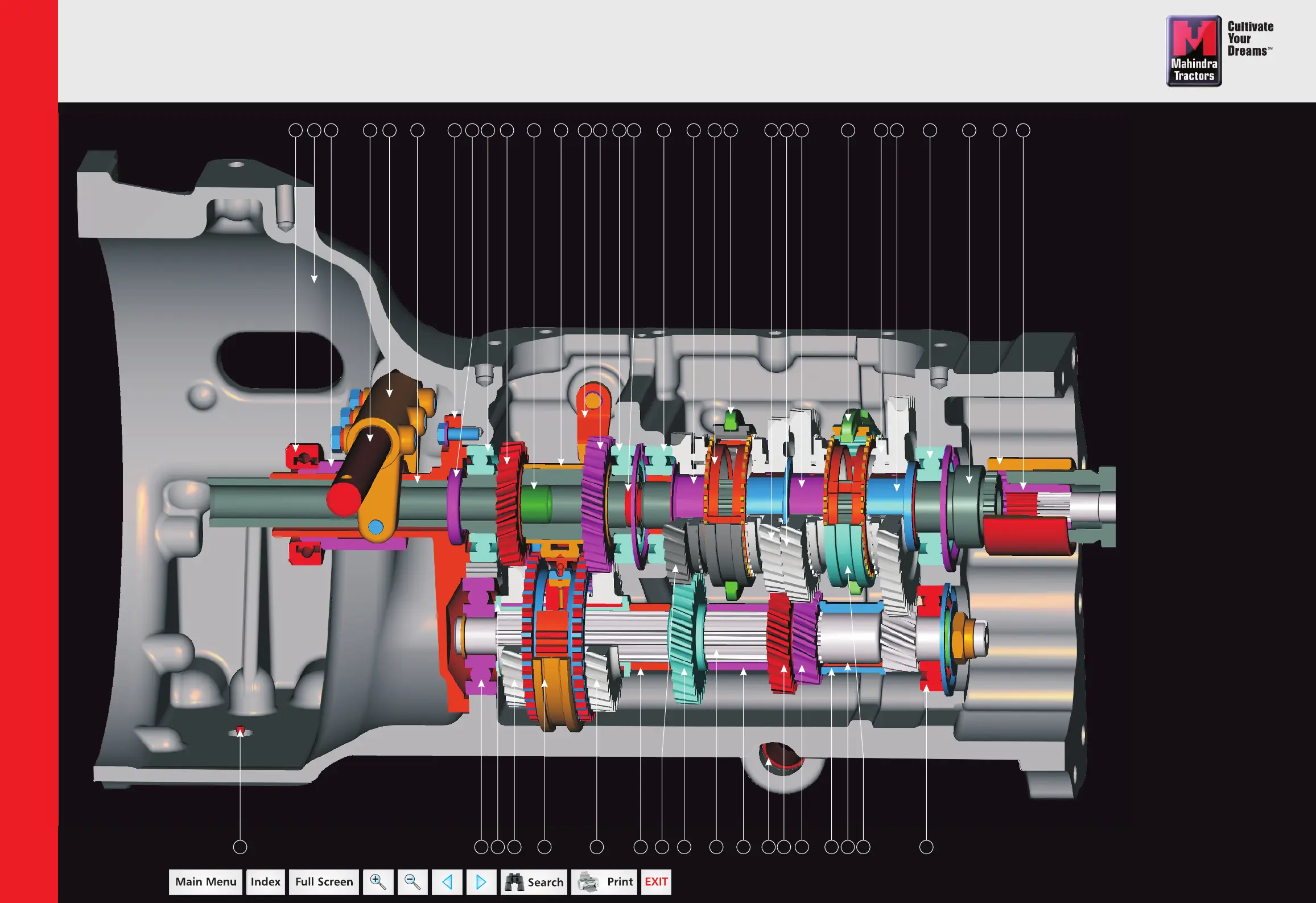

Speed Section - Transmission
29 30 31 32 33 35 36 4445 37 3938 40 41 4334 16
1 2 3 4 5 6 7 9 14428 1110 12 13 1212 15 16 17 201918 21 22 23 24 25 26 27
28
1. Clutch Release Bearing
2. Clutch Housing
3. Sleeve Clutch Release
4. Shaft Clutch Release
5. Fork Clutch Release
6. Main Hollow Drive Shaft
Shuttle
7. Retainer Main Drive Shaft
8. Oil Seal
9. Gear Reverse Driving
10. Lever Speed
11. Gear Forward Driving
12. Bearing 6208
13. Oil Seal
14. Spacer
15. Bush 4th Gear
16. Synchro Nizer
17. Fork 3rd-4th Speed
18. Gear 3rd Driven
19. Gear 2nd Driven
20. Bush 2nd-3rd
21. Fork 1st-2nd Speed
22. Gear 1st Driven
23. Bush 1st Gear (Graded)
24. Bearing 6307
25. Main Top Shaft Speed
Section
26. Coupling Speed & Range
27. Coupling Speed & PTO
28. Breather
29. Bearing 6405
30. Bush Forward / Reverse
31. Gear Reverse Driven
32. Forward / Reverse
Synchronizer
33. Gear Forward Driven
34. Gear 4th Driven
35. Gear 4th Driving
36. Counter Shaft
37. Bush
38. Gear 3rd Driving
39. Gear 2nd Driving
40. Bush
41. Woodruff Key
42. Bush
43. Bearing 6306
44. Spacer Rear
45. Spacer Front

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
