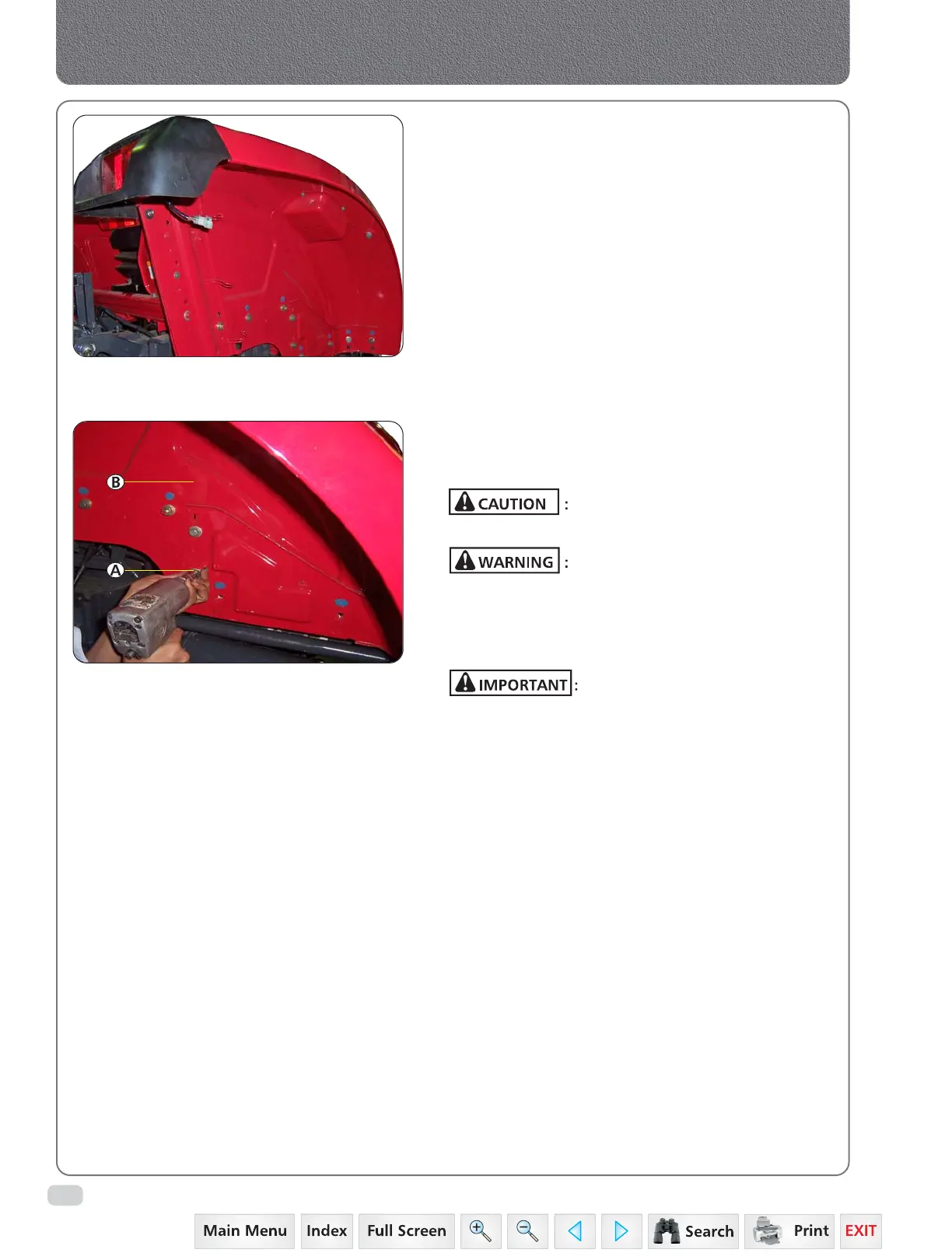

Removal & Refitment of Fender
Removal & Refitment of Fender
1. Using the special tool - Rail & Trolley Jack - support
both rear axle. Apply Tractor parking brakes and
place wedges to hold the rear wheels.
2. Remove rear wheels of RH and LH side to access
fenders.
3. First remove the battery cable from its negative
terminal & then remove battery cable from
positive terminal.
4. Disconnect fender wiring harness & remove from
fender clamps.
5. Loosen the fender mounting bolts (A).
6. Hold the fender (B) firmly before attempting its
removal.
The fender needs to be held in
place with external support.
Improper / inadequate
supporting/holding the fender in place during its
removal can cause injury.
7. Refit the fender in the reverse sequence of
removal.
Align the fender resting area
equally and properly, before tightening the fender
mounting nuts.
