B-28
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Removal & Refitment of Instrument Cluster, Scuttle &
Steering Column Cover

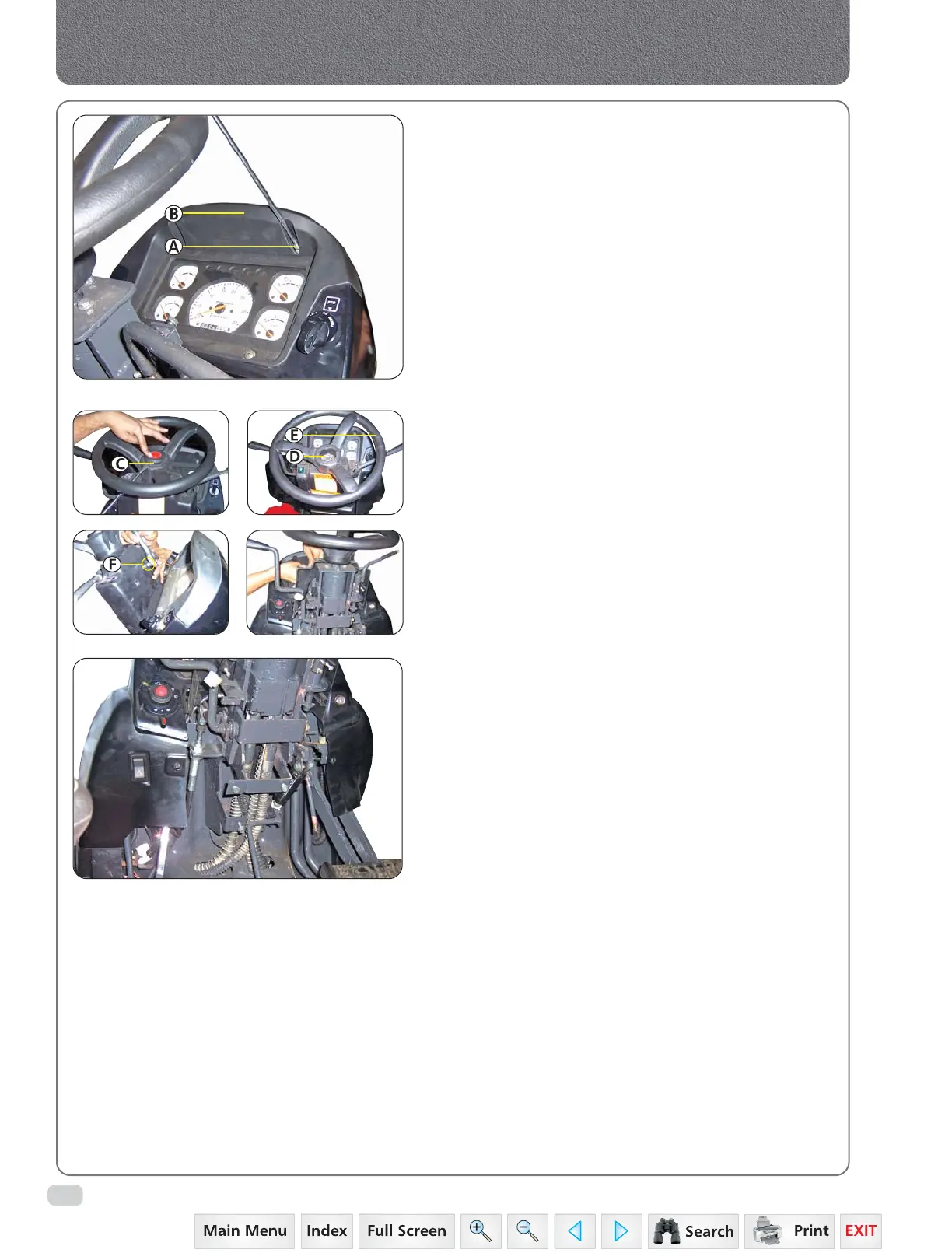

Steering Column Cover Removed
REMOVAL OF INSTRUMENT CLUSTER & SCUTTLE
COVER
1. First remove the battery cable from its negative
terminal & then remove battery cable from
positive terminal.
2. Remove screws (A) of Instrument cluster
& separate the cluster (B) by disconnecting the
wiring harness.
3. Open the steering wheel cap (C). Remove the
Steering Wheel Nut (D) and take out the Steering
wheel (E) with the help of puller.
4. Loosen the steering column cover bolts (F).
5. Disconnect the wiring harness to PTO engaging
switch.
6. Take out the top & bottom steering column
covers.
7. Disconnect wiring harness to switches in the
scuttle.
8. Loosen the scuttle bolts and take out the scuttle.
REFITMENT OF INSTRUMENT CLUSTER & SCUTTLE
COVER
1. Refit the removed components in the reverse
sequence of removal.
2. Ensure that the connectors are connected properly
and in correct positions. Finally connect the
battery positive cable.
