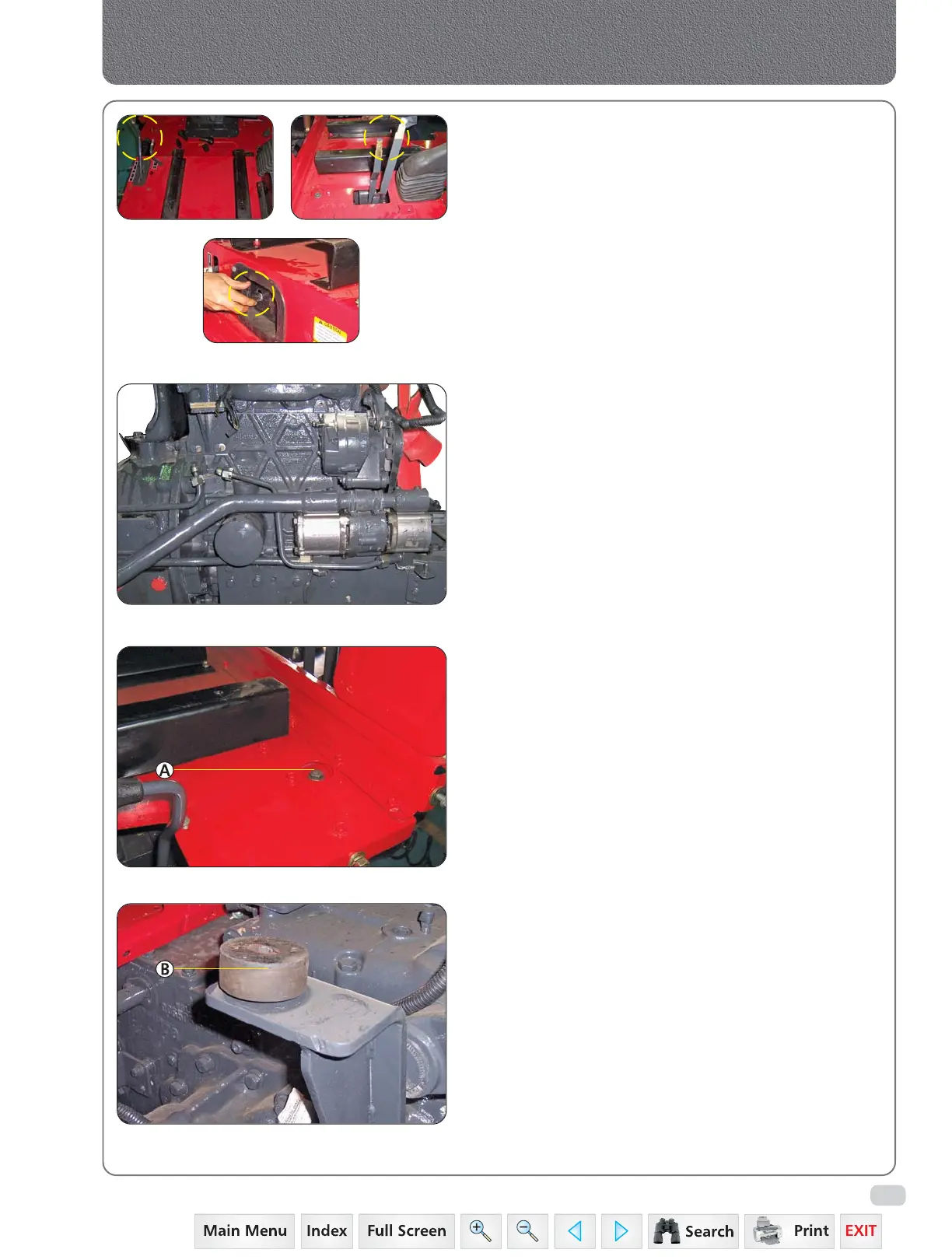

Removal & Refitment of Flooring and Linkages
Removing of Control Levers Knob
Disconnecting Power Steering Connections
REMOVAL OF FLOORING AND LINKAGES
1. First remove the battery cable from its negative
terminal & then remove battery cable from
positive terminal.
2. Support the tractor by using tractor splitting
rail – jack.
3. Remove the rear LH and RH wheels.
4. Disconnect the LH, RH fender wiring harness to
P & T Lamp, Plow Lamp and remove the wiring
harness from fender clamps.
5. Dismantle the ROPS fender connecting bracket.
6. Remove LH and RH fenders.
7. Remove seat from mounting channels.
8. Remove LH & RH mounting channels.
9. Remove the PC, DC, Range, Speed Lever & Slow
Fast Valve Knobs.
10. Remove the differential lock foot pedal.
11. Dismantle the instrument cluster, Steering wheel,
scuttle & steering column covers.
12. Disconnect the front / rear wiring harness from
the central wiring harness and remove the wiring
harness from the firewall clamps.
13. Disconnect the power steering hoses of HSU to
steering cylinder, HSU to PTO Control Valve and
Pump to HSU.
14. Disconnect the clutch and brake linkages
& remove it.
15. Disconnect the Forward / Reverse, Hand & Foot
Accelerator cables.
16. Remove foot accelerator pedal.
17. Dismantle the fire-wall assembly.
18. Remove the front and rear platform isolator
mounting bolts (A) and take out isolator (B).
19. Remove the front and rear platform.
REFITMENT OF FLOORING AND LINKAGES
1. Reassemble the removed components in the
reverse sequence of removal.
Ensure that the connectors are connected properly and
in correct positions. Finally connect the battery positive
cable.
