B-30
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

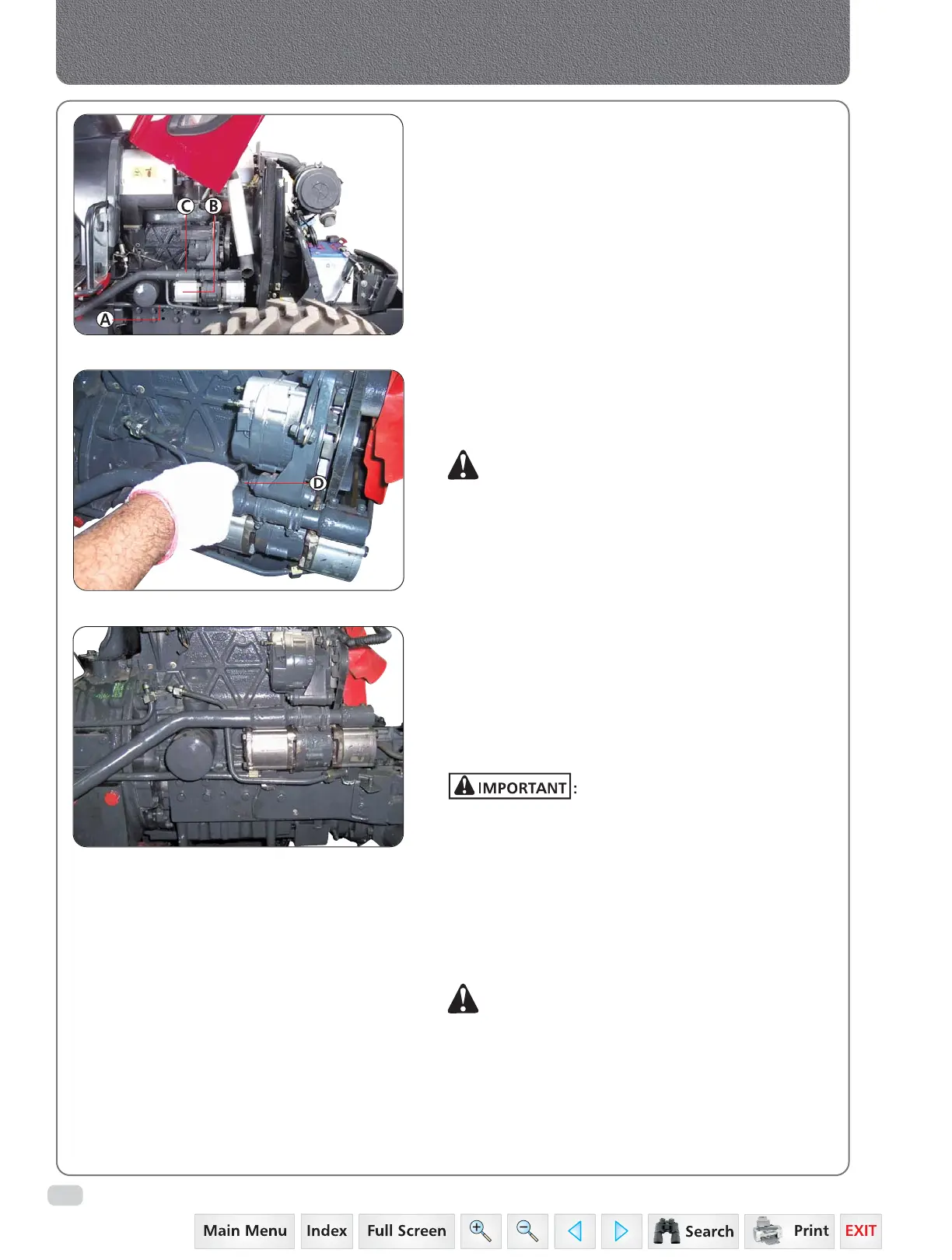

REMOVAL & REFITMENT OF HYDRAULIC PUMP
Removal of the Hydraulic Pump
1. Pull the knob, unlock the Hood lock and lift the
hood.
2. Remove RH side panel.
3. First remove the battery cable from its negative
terminal & then remove battery cable from
positive terminal.
4. Disconnect the Hydraulic Pump Pressure Line (A)
of Hydraulic Pump (B) by loosening adapter
connections.
5. Disconnect the Suction Line (C) by loosening the
cap screws (D).
NOTE: Plug the pipes to prevent oil spillage.
6. Remove both Pumps for further repairs or
replacement.
Refitment of the Hydraulic Pump
Always use new O’Rings. Using
damaged or used O’Rings will lead to leakage.
1. Place new O’Rings on pump flange. Install pump
on engine.
2. Install cap screws for connecting the Hydraulic
Suction Lines.
3. Connect the Steering Lines and Hydraulics
Pressure lines.
NOTE: Hold adapters when tightening
Hydraulics / Steering lines to eliminate
overtightening of adapters on pump.
4. Connect the Battery connections.
5. Fit the RH side panel and close the hood.
6. Start engine and operate hydraulics. Check all
connections for leaks.
7. Check oil level, add if necessary with the
recommended grade of oil.
Removal & Refitment of Hydraulic Pump
Service Recommendation:
It is not recommended to repair pump.
Pump should be completely replaced, if internal
problem suspected.
