C-15
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Introduction
1. ENGINE
1a. Removal :
1. Raise the hood.
2. Disconnect the battery earth cable before
disconnecting any electrical system.
3. Unclip the main cable harness from the bottom
of the radiator.
4. Disconnect head lamp and horn cable.
5. Remove the hood pivot bolts and remove the
hood.
6. Drain the radiator and crankcase.
7. Disconnect the radiator brace and fan shroud from
radiator.
8. Loose and hose clips and remove inlet and outlet
hose pipes of the radiator.
9. Remove the two nuts from the bolts securing the
radiator to the front axle support. Lift the radiator
and rubber pads off. Place the wooden block
between axle and axle support prevent tilting.
10. Lock the brakes and securely block the rear wheels.
11. Disconnect the drag link. If power steering is fitted,
disconnect the power steering oil
pipes (two) at starter side.
12. Support the front of the tractor to take most of
the weight off the front tires. Unbolt the radius
arm bracket fit from the clutch housing.
13. Remove the front support securing cap screws
from both sides. Raise tractor engine until crank
shaft pulley will clear support then roll out front
axle support with front axle and tires.
14. Disconnect the generator / alternator leads, the
oil pressure pipe, and release the harness from
the securing clips situated around the front of the
engine.

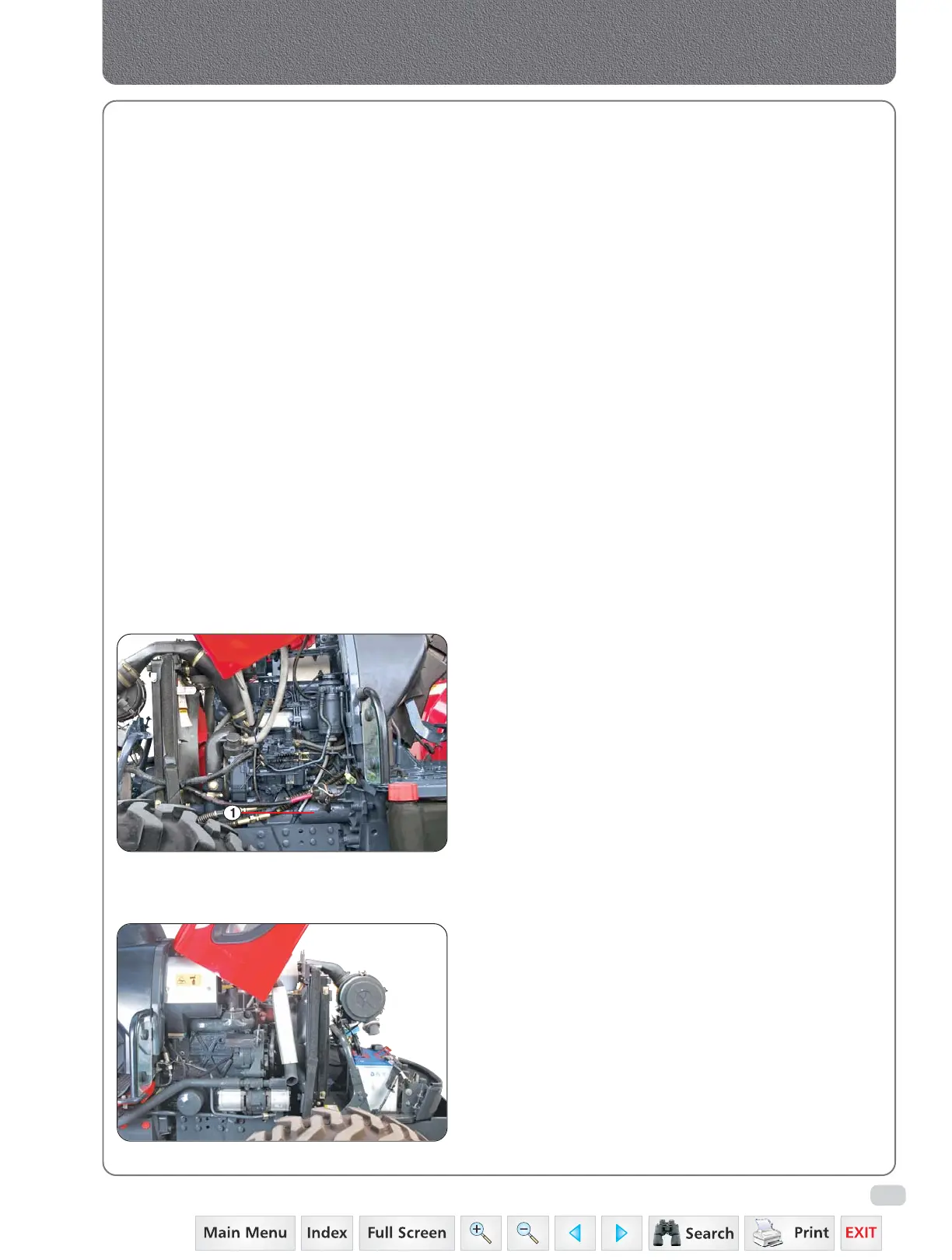

15. Disconnect the starter motor supply cable,
solenoid wire and main harness feed wire from
the starter (1-1).
16. Disconnect the high and low pressure pipes at
the Hydraulic pump removing two socket head
(if power steering fitted. Remove dual pump
socket) cap screws on each connection.
Fig. 2
Fig. 1
