Mahindra 35 Series User Manual

C-26
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Fig. 9
Removing valves

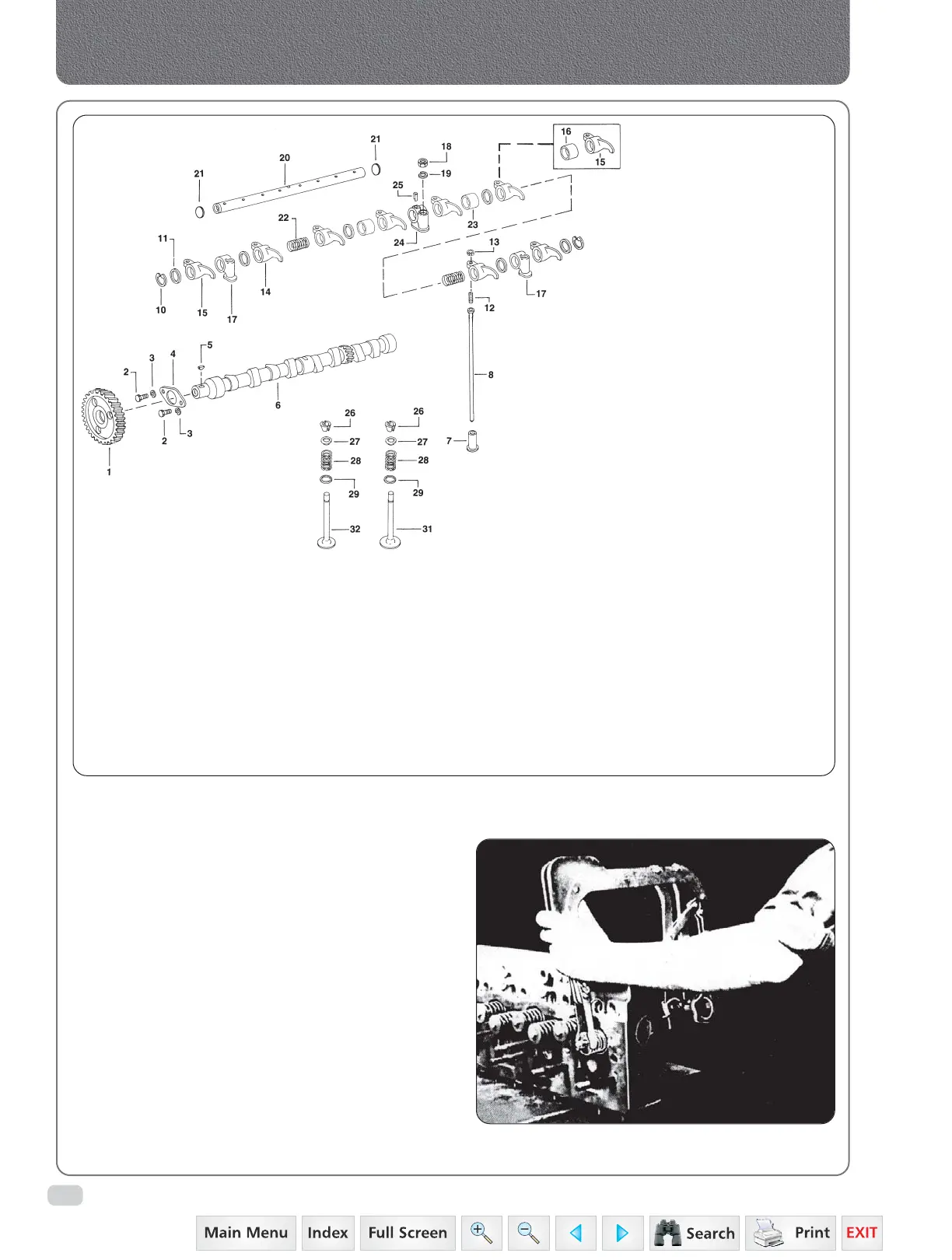

Fig. 7
1. Gear
2. Screw
3. Washer
4. Plate
5. Key
6. Camshaft
7. Tappet
8. Rod
9. Rocker
10. Circlip
11. Washer
12. Screw
13. Nut
14. Arm, rocker
15. Arm, rocker
16. Bush
17. Bracket
18. Nut
19. Washer
20. Shaft
21. Plug
22. Spring
23. Spacer
24. Bracket
25. Pin
26. Lock
27. Cup
28. Spring
29. Washer
30. Set
31. Valve
32. Valve
Manifolds, Cylinder Head & Valves

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
