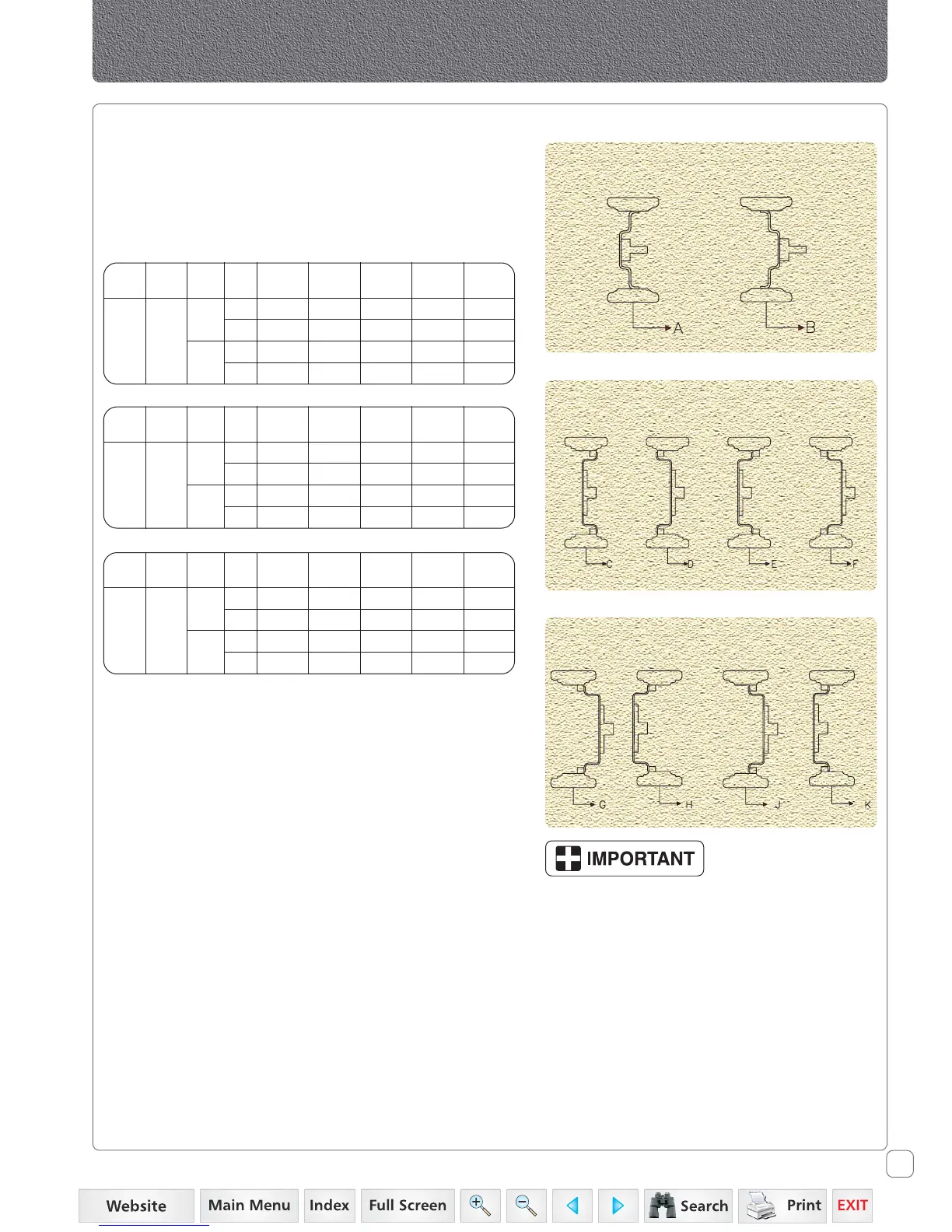

Wheel Tread Adjustment
An arrow is marked on the sidewall of the tire,
which must always point in the direction of
forward rotation to obtain maximum traction.
Adjustment of Rear Wheel Tread & Front Wheel Tread
Setting various offset combinations can do adjustment of
the Front and Rear wheel tread.
The Wheel tread obtained are as follows:
Track Setting Combinations
Front Wheel Track
Rear Wheel Track
Rear Wheel Track
Model
Tire
Side
Value
1* 2 3 4 5
Type in
3535
Ind.
Front
Rear
mm 1210 (A) 1231 (B)
in. 47.63 (A) 48.46 (B)
mm 1351 (D) 1351 (D)
in. 53.18 (D) 53.18 (D)
Model
Tire
Side
Value
1* 2 3 4 5
Type in
5035
Ind.
Front
Rear
mm 1450 (B) 1450 (B) 1310 (A)
in. 57.08 (B) 57.08 (B) 51.57 (A)
mm 1429 (F) 1520 (J) 1429 (F)
in. 56.25 (F) 59.84 (J) 56.25 (F)
* Standard Track Settings
Model
Tire
Side
Value
1* 2 3 4 5
Type in
4035/
4535
Ind.
Front
Rear
mm 1423 (B) 1423 (B) 1343 (A)
in. 56.02 (B) 56.02 (B) 52.87 (A)
mm 1429 (F) 1520 (J) 1429 (F)
in. 56.25 (F) 59.84 (J) 56.25 (F)
